Wholesale 202 Pipe Oem Stainless Products

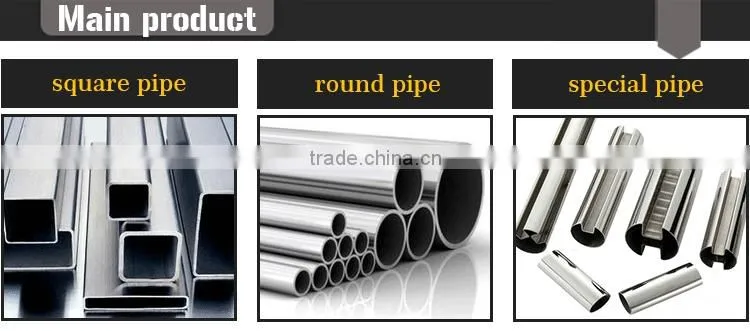

Product Details of stainless steel pipe:
| Name | Stainless steel pipes |
| Standard | ASTM A554,A249,A269,A270,A312 |
| Material Grade | 201,202,304,316,316L,430 |
| Main Material | 201: Ni 0.8%~1%,202: Ni 3.5%~4.5%,304: Ni 8%,Cr 18%,316: Ni 10%,Cr 18%,316L: Ni 10%~14%,430: Cr 16%~18% |
| Outer Diameter | 8mm-76.2mm |
| Thickness | 0.5mm-1.5mm |
| Length | 6m or according to customers's request |
| Tolerance | a)Outer Diameter :+/- 0.1mm b) Thickness:+/- 0.02mm c) Length:+/- 5mm |
| Surface | 180G,240G,320G Hairline,400G,600G Mirror finish |

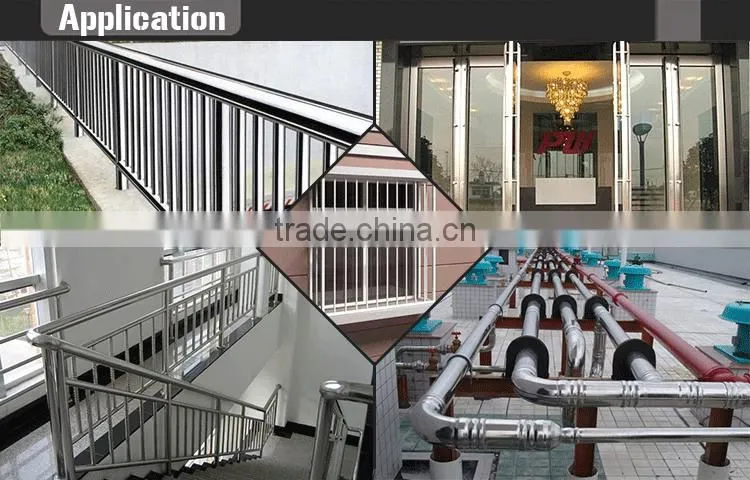

| Application | handrail,railing,staircase,weldmesh screen,door,window,balcony,fence,bench,furniture,ect. |
| Test | Squash test,extended test,water pressure teat,crystal rot test,heat treatment,NDT |
Chemical Composition of stainless steel pipe:
| Material Composition | 201 | 202 | 304 | 316L | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.035 | ≤0.12 |
| Si | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Mn | 5.5-7.5 | 7.5-10 | ≤2 | ≤2 | ≤1 |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.04 |
| S | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 |
| Cr | 13-15 | 14-17 | 18-20 | 16-18 | 16-18 |
| Ni | 0.7-1.1 | 3.5-4.5 | 8-10.5 | 10-14 | |
| Mo | 2.0-3.0 |
Mechanical Property of stainless steel pipe:
| Material Item | 201 | 202 | 304 | 430 |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 |
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 |
| Extension | ≥30% | ≥30% | ≥35% | ≥35% |
| Hardness(HV) | <105 | <100 | <90 | <90 |

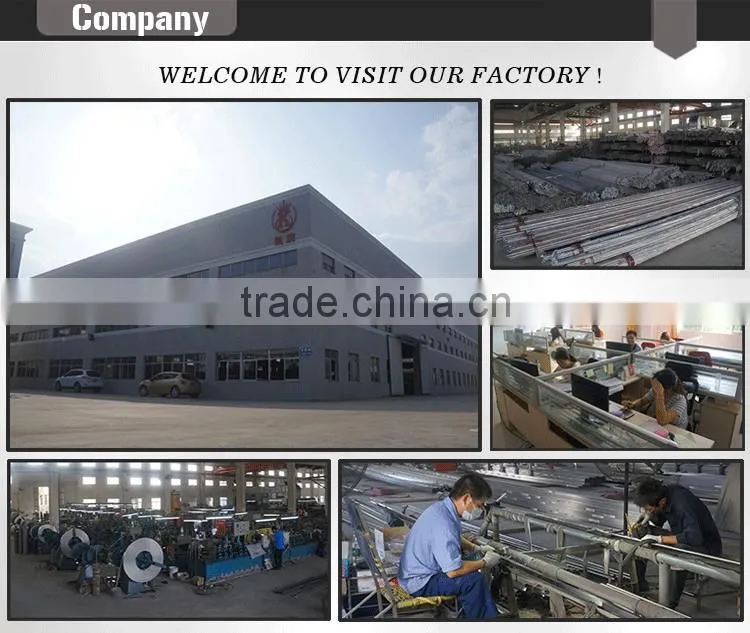

Jiangmen Kaixuan Stainless Steel Co., Ltd. located in Duruan Town, Pengjiang District, Jiangmen City, Guangdong Province, China is one of the good reputation companies in the filed of welded stainless steel pipes. 'Create the triumphal future, Build the champion brand' is our slogan, we have strict validation mechanism to control the quality and keep it stable. For customers' approval and satisfaction, we control the outer diameter of stainless steel pipes within +/-0.1mm, wall thickness within +/-0.02mm, roundness tolerance of round pipes to +/-7C, this accuracy we can also adjust according to customer's request.

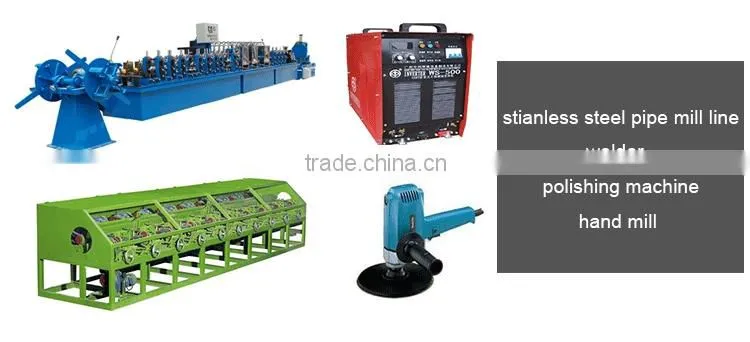

The materia is 201#, 202#,304#,430#,316L# are up to standard of GB, ROHS, SVCH etc. Quality is not only the foundation of enterprise but also an important value form of product. We comply with technological process strictly, to ensure the inside welding line is flat, without obvious groove or pimpling, while outside welding line is no black line and clear hand feeling. For the surface, we focus on bright and clean, do not accept the defect of blisters, decrustation, pressure points and liner scratches. Our pipes are attractive and durable, that's the reason why we are the preferred supplier of Furniture, Handles, Sanitary Ware, and Medical Devices. We also accept the order of random length and other material's stainless steel pipes.
Click the picture to know more stainless steel pipe.
