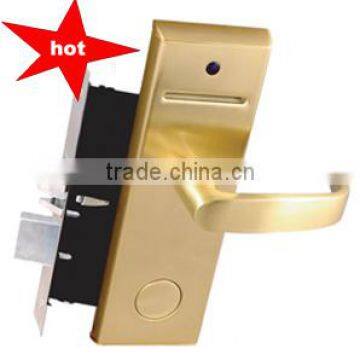

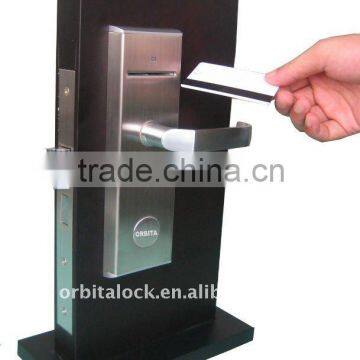

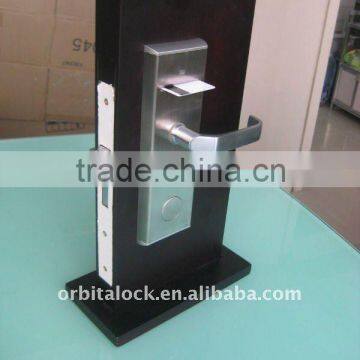

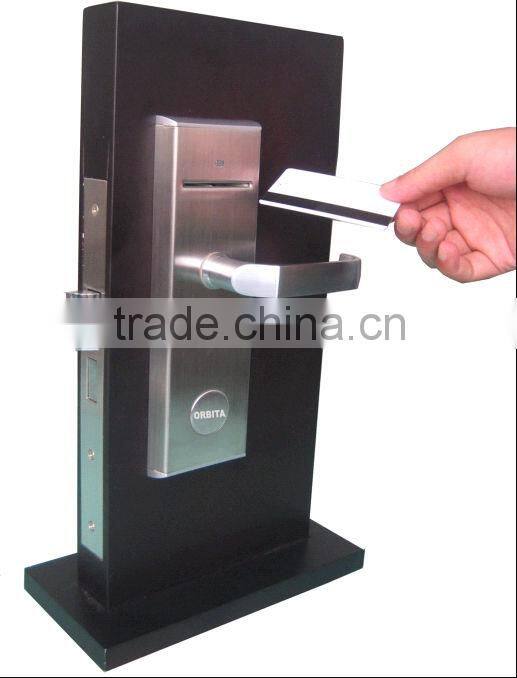

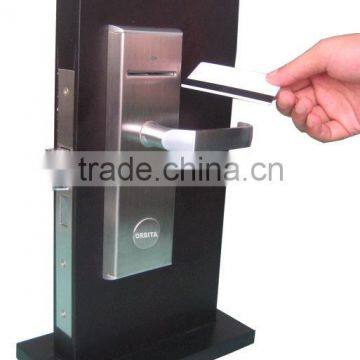

Electric Key Card Hotel Lock,card Lock,Digital Card Lock,door Locks

Name: Electric Key Card Hotel Lock,card Lock,Digital Card Lock,door Locks
Brand: ORBITA
SKU: 119997601
Availability: InStock

Orbita Technology Co., Ltd.

US$ 1 - 50 MOQ: 1 Piece

Key Specifications

Place of Origin:

Brand Name:

ORBITA

Model Number:

E-1080s

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name ORBITA

Model Number E-1080s

Problem	Possible Reason	Solution
Red light blinks two times and two beeps.	a) The card is not issued for this door. b) The staff/maintenance card has lost its validity after being used for a few times.	Use the correct card; Or issue a new maintenance card
Red light blinks three times and three beeps.	The time of the card does not match that of the lock.	Synchronize the time either/both of the card or/and the lock.
Red light blinks four times and four beeps.	The lock has not been authorized.	Authorize the lock with a card or a PP.
Red light blinks five times and five beeps.	The card has been suspended.	Issue a new card.
Red light blinks six times and six beeps.	The lock has been deadbolted.	If need be, gain access to the room with a master card, an emergency card or a PP.
Red light blinks seven times and seven beeps.	The lock has been blocked by a block card.	If need be, gain access to the room with a master card, an emergency card or a PP, or unblock the lock with the lock card.
Red light blinks eight times and eight beeps.	The lock has been authorized by another system.	Use cards issued by that system; Or perform mandatory authorization if need be.

electric key card lock,card lock,Digital card lock,door locks

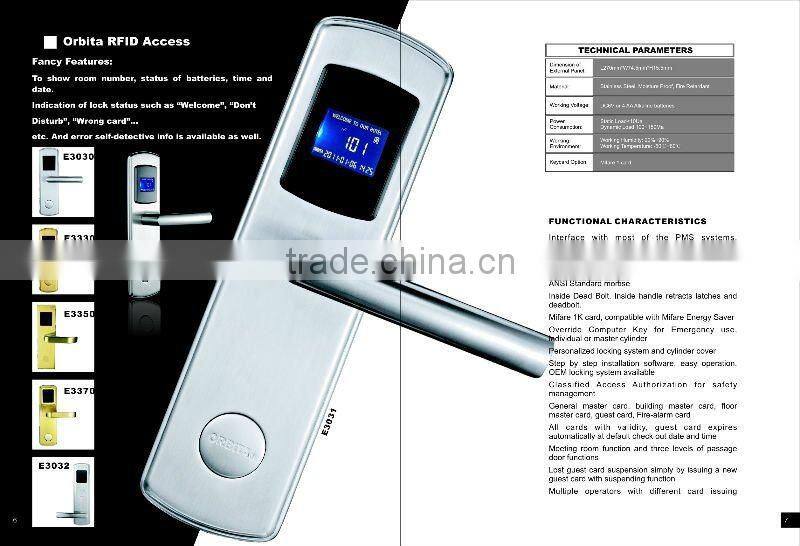

MAIN FEATURES:

1) Materials: stainless steel, brass

2) With unique designed handle

3) Meets ANSI standard, with 5 latch mortises

4) With inside dead bolt

5) 10,000 times life

6) With override computer emergency key

7) Personalized locking system

8) Classified access authorization

9) System operation records printable and can be read.

10) Working temperature: -50 - 80¡ãC

11) Power: 6pcs AA alkaline batteries

12) W1eight: 3.8kg/pc

13) Dimensions: 240 x 78 x 17mm

14) Packing: 6pcs/carton

Item#	Description	Technical Parameters
1	Power:	6V AA alkaline batteries,
2	Static Electric Current:	Static Load<10Ua,Working Load: 100Ma-150Ma
3	Working Electric Current:	100-300mA
4	Card type	Temic 5557 card
5	Battery Life:	18 months’ duration
6	Lock operation records	240pcs
7	Insert Reliability:	No mistake even inserted continuously 2000 times
8	Insert Guarantee:	Still work well after inserting any illegal card
9	Low Voltage Warning:	low Battery Voltage warning. (Lower than 3.5 V)
10	mortise	ANSI Standard mortise/Euro standard
11	Humidity	20%-90%
12	Working tempreture	-50°C-80°C
13	Suitable door	Wooden door, fire-proof door, metal door and so on.

Indication Symbols
