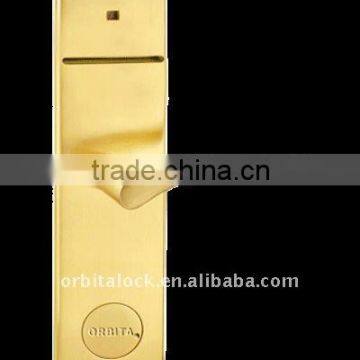

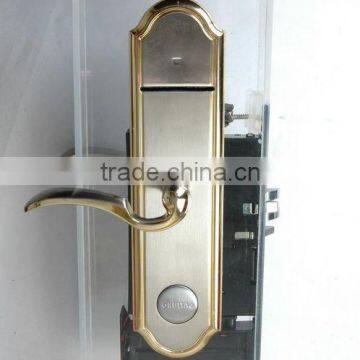

E1010s hotel system magnetic key door lock
electronic hotel locks
nology:temic electronic hotel locks
2.materials:304 stainless steel
3.Warranty:2 years
4.certification:CE&FCC
1. Fancy Features:
Led display To show room number,status of batteries,time and date.
Indication of lock status such as Welcome,Don't disturb,Wrong card etc.And error self-detective info is available as well.
LOCK Construction:
1.Panels: SS304
2.Handles: SS304
3.Deadbolt: Zinc Alloy or SS304
4.Mortise: Cooling steel
5.Cylinder: Pure copper
TECHNICAL PARAMETERS
1.Dimension of External Panel: L98mm*W74mm*H16mm
2.Material: Stainless Steel, Moisture Proof, Fire Retardant
3.Working Voltage: DC6V or 4 AA Alkaline batteries
4.Power Consumption:
5.Static Load<10Ua
6.Dynamic Load 100~150Ma
7.Working Environment:
8.Working Humidity: 20%~90%
9.Working Temperature: -50°C~60°C
10Keycard Option: Mifare 1 card
FUNCTIONAL CHARACTERISTICS
1.Interface with most of the PMS systems, Fidelio/Opera registered!
2.CE & FCC Certified!
3.Brushed stainless steel color lasts more than10 years
4.ANSI Standard mortise
5.Inside Dead Bolt. Inside handle retracts latches and deadbolt.
7.Override Computer Key for Emergency use, individual or master cylinder
8.Personalized locking system and cylinder cover
9.Step by step installation software, easy operation. OEM locking system available
10.Classified Access Authorization for safety management
11.General master card, building master card, floor master card, guest card, Fire-alarm card
12.All cards with validity, guest card expires automatically at default check out date and time
13.Meeting room function and three levels of passage door functions
14.Lost guest card suspension simply by issuing a new guest card with suspending function
15.Multiple operators with different card issuing authorizations
16.Lock operation record printable: 240 pcs or more
17.Receptionist card issuing records printable
18.Power: 4pcs #5 AA Alkaline batteries. 18 months’ duration
19.Low battery voltage warning. (Lower than 3.5 V.)
20.Self Error detecting by LED and “beep”
21.Improper lock warning
22.Wireless stand alone lock realizes 95% of online lock function
23.Passage function available
24Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis court/Gym …etc. That is to say, one Guest card not only can open its own Guest room but also can open other common areas such as Lift, Parking, Club, Swimming…etc optionally (such as if the guest pays for Lift, Parking, Club, Swimming…etc, his Guest card can open its own Guest room and Lift, Parking, Club, Swimming…etc; if not, his Guest card can only open its own Guest room).
25.Also it is suitable for suite Guest room
3. How ORBITA system works?
Our hotel locking system consists of following:
-PC(usually located on the reception desk of hotel lobby)
-Hotel lock management software+Encoder (How the cards are issued)
-Hotel card lock (Installed on the hotel room door)
-Cards (The keycard to open doors)
4. NOTE:
When you place an order, please provide us your order quantity of left or right handles, door thickness and door hole distance. (Distance from door side to the center of door hole !
Our hotel locking system consists of following: |
1. Hotel card lock (Installed on the hotel room door) |
2. PC (usually located on the reception desk of hotel lobby) |
3. Hotel lock management software+Encoder (How the cards are issued) |
4. Cards (The keycard to open doors) |
5. Portable programming |
6.Energy saver |
Advantage of key card hotel lock | |
1 |
High quality and good performance. |
2 |
Easy installing and suitable for right or left door you can change it by yourself |
3 |
We have own manufacturer factory and engineer which ensure the good quality, punctual shipment and competitive price. |
4 |
colour choice: golden or silver |
5 |
Low power alarm and unlock alarm ensures safety |
6 |
Two year warranty and all life maintenance |
7 |
Durability and reliability |
6. PANEL SIZE:
6. INSTALLATION

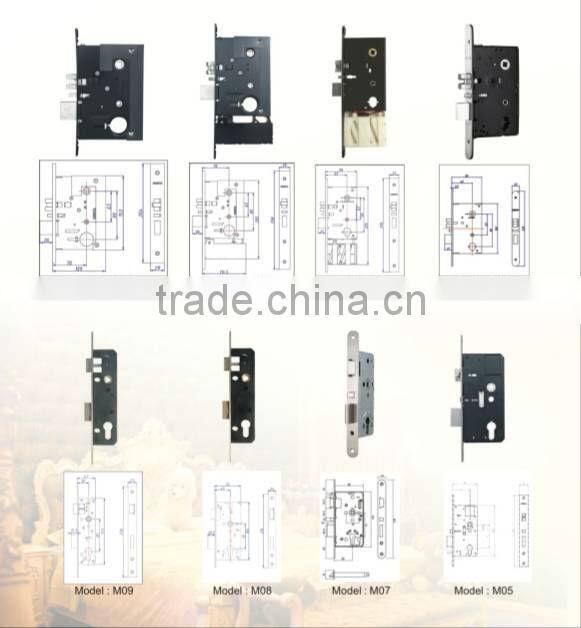

7. DOOR HOLE DESGN:

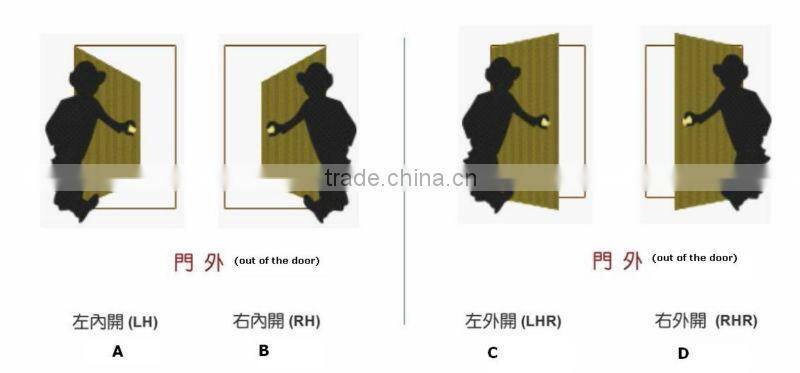

CHOOSE DOOR TYPE
Accssories needed :
