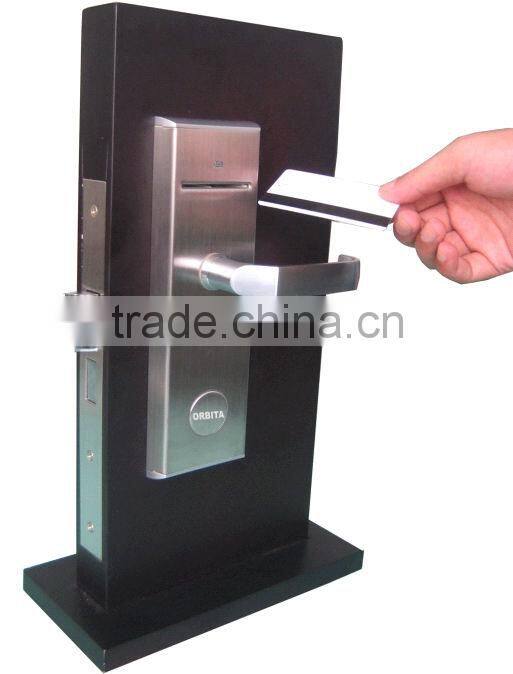

E1010S 33 magnetic strip card hotel lock with locking system
-Magnetic strip card
-2 years' warranty
-CE, FCC, ISO Certified
-PMS interface available
-4 AA Batteries.
PCB Reader : Very durable double-side reading from Korea !
FUNCTIONAL CHARACTERISTICS :
Interface with most of the PMS systems, Fidelio/Opera registered !
CE & FCC Certified
Stainless steel finish, PVD coating lasting 10 years
ANSI standard mortise
Inside Dead Bolt. Inside handle retracts latches and dead bolt.
Magnetic card, compatible with Magnetic Energy Saver.
Override computer key for emergency use, individual/master cylinder and override key available.
Personalized locking system and cylinder cover.
Step by step installation software, easy operation. OEM locking system available.
Classified access authorization for safety management.
General master card, building master card, floor master card, guest card, firealarm emergency card.
All cards with validity, guest card expires automatically at default check out date and time.
Meeting room function and three levels of passage door fuctions.
Lost guest card suspension simply by issuing a new guest card with suspending function.
Multiple operators with different card issuing authorizations.
Look operation record printable. 250 pcs or more.
Receptionist card issuing records printable.
Power : 4 PCS #5 AA Alkaline Batteries. 18 monthes' duration.
Low Battery Voltage warning. ( Lower than 3.5V)
Self error detecting by LED and " beep " sound.
Improper lock warning.

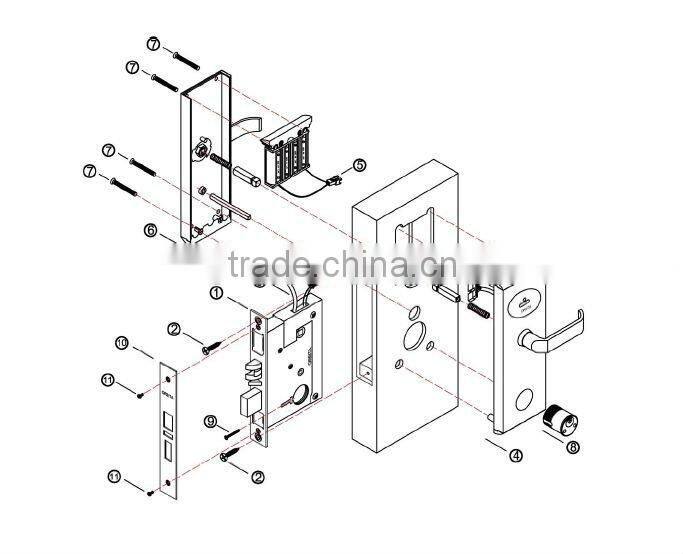

Installation Drawing :
Lock Dimension :
LED Light Indication :
LED Color |
Times |
Indication |
Solution |
Yellow |
1 |
card not issued (blank or wrong card). |
Reissue the card. |
Yellow |
2 |
Wrong room No or area No.. |
Check the room card. |
Yellow |
3 |
Card expired. |
Renew the card. |
Yellow |
4 |
The lock is not programmed |
Authorize the lock with Athor card. |
Yellow |
5 |
This card has been suspended(blacklisted) |
Issue a new card. |
Yellow |
6 |
The deadbolt is activated. |
Guest inside, use master card. |
Yellow |
7 |
The lock is blocked. |
Unblock the lock. |
Yellow |
8 |
The card is not issued from this system. |
Change a card. |
Red |
3 |
Battery power low. |
Change battery. |
Red |
1/5s |
Deadbolt activated. |
Normal state. |
System illustration :
