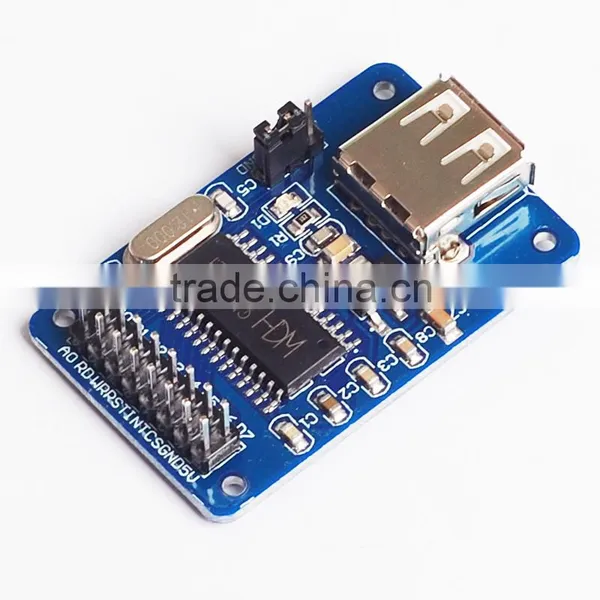

CH376S USB Module With Good Quality
Features:
1) CH376 chip curing the FAT file system, file operations simple and fast
2) support, including U disk, USB hard drives, USB flash drives, including USB card reader and USB storage devices
3) support a variety of communication interfaces: 8 parallel port, SPI, and asynchronous serial interface
4) Compatibility: Compatible device mode and CH372, CH375 is compatible with host mode
5) Module Size: 50mm × 34mm
Product Description:
USB interface in the current electronic products accounted for a very large share of the microcontroller with USB interface communication direction of one of the most popular microcomputer application master chip module using the CH376S, CH376S is a USB bus interface chip to support USB-The hOST and USB-DEVICE/SLAVE equipment the way. Locally, CH376S with 8-bit data bus and read, write, chip select control lines and interrupt output can be easily attached to the system bus of the microcontroller/DSP/MCU/MPU controller. USB host mode, CH375 also provides serial communication via serial input, serial output, and interrupt output monolithic/DSP/MCU/MPU connected.
CH375 USB device mode is fully compatible with CH372, CH376S contains all the features of the CH372. Common CH375 USB host mode support USB full-speed device, external microcontroller can through the the CH375 in accordance with the USB protocol and USB device communication. CH375 firmware also built a dedicated protocol processing Mass-Storage mass storage devices, external microcontroller can be directly used as the basic unit of reading and writing in sectors USB storage devices (including USB hard disk/USB flash drive/U disk).
Product Specification:
* 2x8 connector, easy with the MCU mount.
* Jumper selectable, can work in parallel or serial mode.
* USB status ndicator.
* Onboard 3.3V LDO 1117, provides 800mA current.
* 5V power supply is powered from the target board.
* 12MHZ crystal.

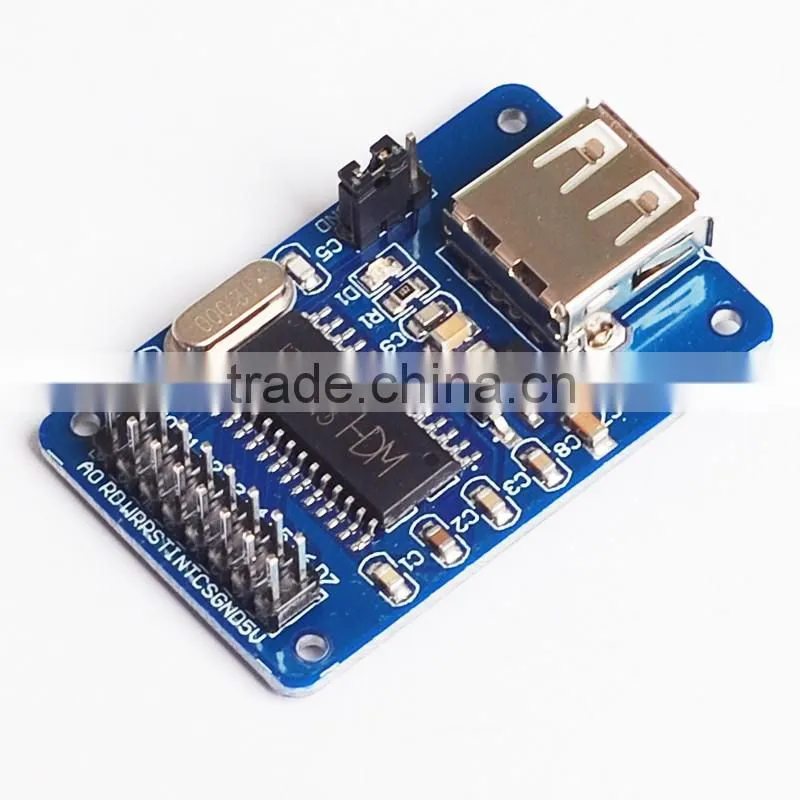

CH376S USB Module With Good Quality Photos:
Sample term:
Sample can be provided as request.
Nice and solid packaging is our advantage.
