PL2303HX USB to RS232 TTL 5V Converter Adapter Module With 3 LED
DESCRIPTION:
1, All kinds of satellites set-top box upgrade
2, Router,HDD,ADSL,broad band modem firmware upgrade or cracked upgrade
3,cellphone,XBOX360,GPS serial communication,vehicle inspection and test,DVD flash and so on
4,Burn write STC MCU,NXP MCU,renesas MCU,NEC MCU and so on
5, Simple UART communication,commonly used UART debugging tools in supper terminal
6, USB signal transferred to TTL signal,may be used by electronic enthusiasts
Features:
1, Adopt imported controller PL2303HX,which can stabilize the flash with high speed
2,500mA self recovery fuse for protection
3,Two data transmission indicator can monitor data transfer status in real time
4, Reserve 3.3V and 5V pin interface,easy for the DDWRT of different voltage system that need power
5, The entire board is coated by high quality transparent heat-shrinkable sleeve,making the PCB in insulation state from outside,
so that the board won't burnt down by material short cut.
6, Electrostatic package,insures the board will not be damaged before use
7,Support WIN7 system not Support WIN8
Package:
Product Features:
Uses PL2303hx
Supports Windows 8
Supports three power modes: 5V external power supply; 3.3V external power supply; externally powered (requires 3.3V-5V)
With 3 LED: TXD LED, RXD LED, POWER LED
Applications:
RS-232 to USB upgrade traditional devices
USB to RS-232 serial adapter
Instructions for use: (to access the MCU for example)
VCCIO: Output 3.3V or 5V (USB-powered module jump, jumper shall 3.3V or 5V)
GND: GND connection
TXD: pick MCU.RX (signal flow: MCU.RX << PL2303 << PC.TX)
RXD: pick MCU.TX (signal flow: MCU.TX >> PL2303 >> PC.RX)

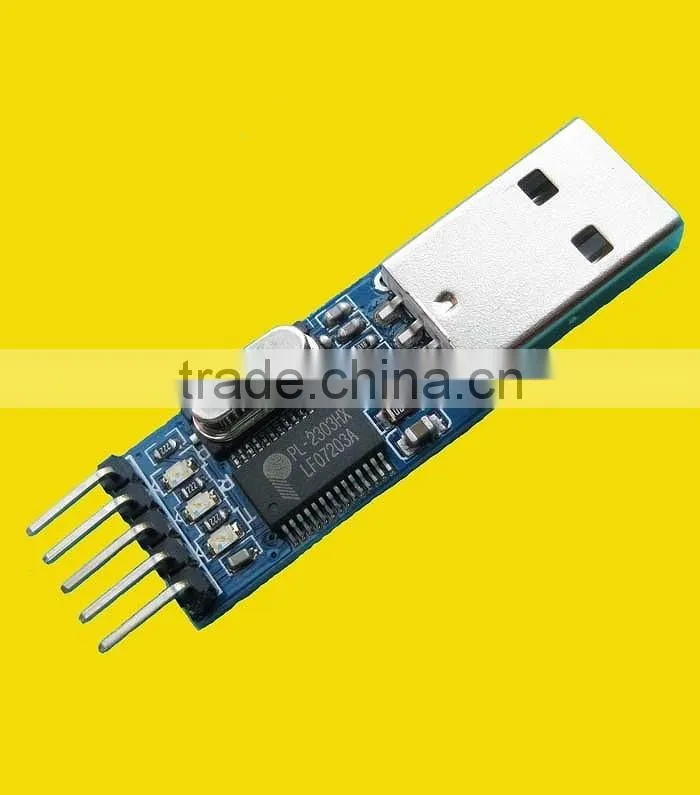

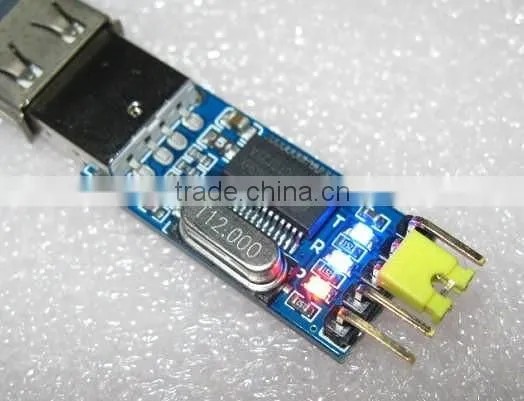

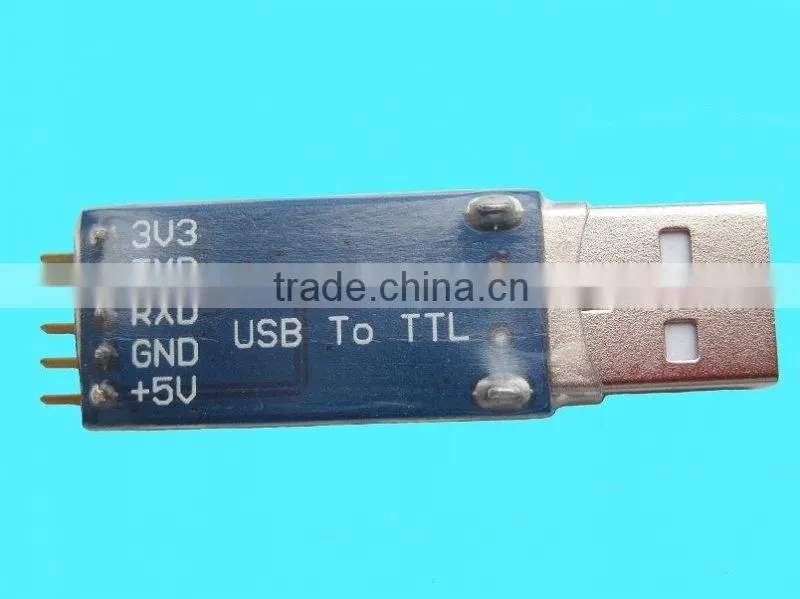

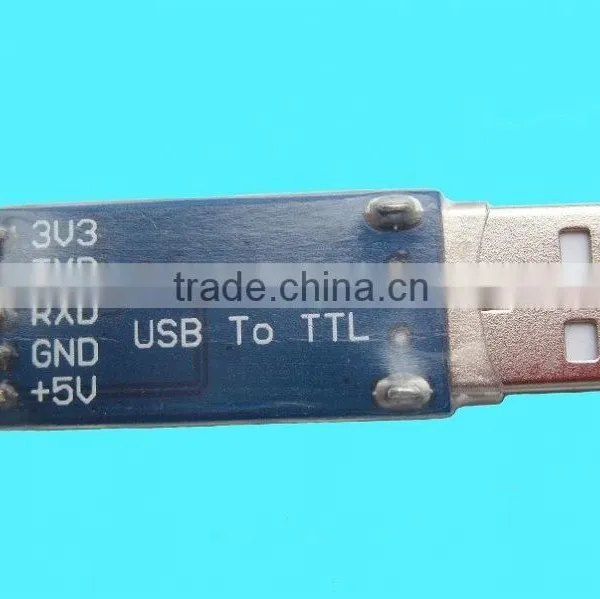

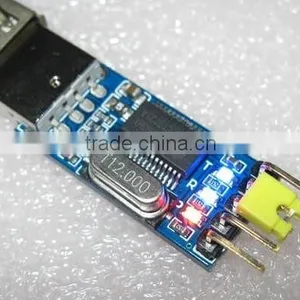

PL2303HX USB to RS232 TTL 5V Converter Adapter Module With 3 LED Photos:
Sample term:
Sample can be provided as request.
Nice and solid packaging is our advantage.
