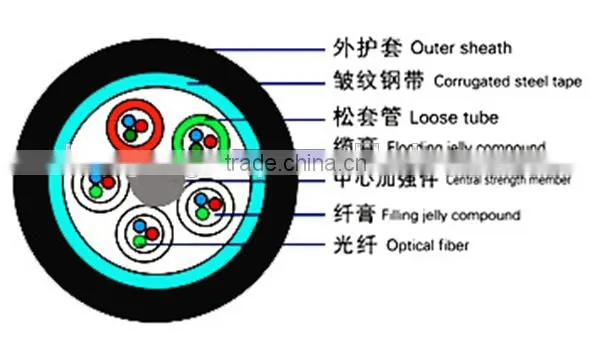

Cable structure:outer sheath,corrugated,flooding jelly compound,loose tube,optical cable,filling jelly compound,central strength member.
1-Corrugated steel tape armoring,loose tube stranding with single sheath.
2-Loose tube material has good hydrolysis resistance performance and high strength.
3-Compact structure,excellent water-blocking performance.
4-Strict manufacturing processes,Good mechanical performance and environmental properties.
The cable's life span is 25 years and the warranty period is 3 years.
Our company :Hongan Group Co.,Ltd is located at No.88,Hengshan Road,Wendeng District,Weihai city,Shandong ,province,China,was established in 1985. We guaranteed that all our products follow industry standard.
1-Buried,duct,aerial
2-Relay communication system,
3-Core network,metropolitan area network and access network etc.
Passed TLC as below :
| Fiber count |
Nominal diameter (mm) |
Nominal weight(kg/km) | Permitted tensile Long term/Short term(N) | Permitted CRUSH Long term/Short term(N) | Bend radius Static state /Dynamic state(mm) |
| 2-36 | 9.8(10.2) | 105(124) | 600/1500(1000/3000) | 300/1000(1000/3000) | 10D/20D |
| 38-60 | 11.5 | 142 | 1000/3000 | 1000/3000 | 10D/20D |
| 62-72 | 12.0 | 169 | 1000/3000 | 1000/3000 | 10D/20D |
| 74-96 | 13.7 | 205 | 1000/3000 | 1000/3000 | 10D/20D |
| 98-120 | 15.2 | 241 | 1000/3000 | 1000/3000 | 10D/20D |
| 122-144 | 16.9 | 290 | 1000/3000 | 1000/3000 | 10D/20D |
| 146-216 | 17.5 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
