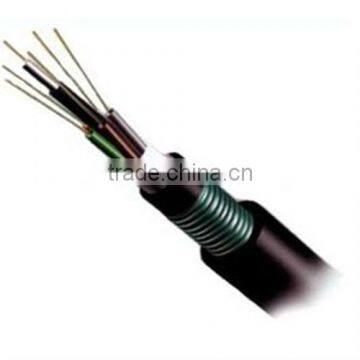

24 Core Single Mode Fiber Optic Cable
Specifications

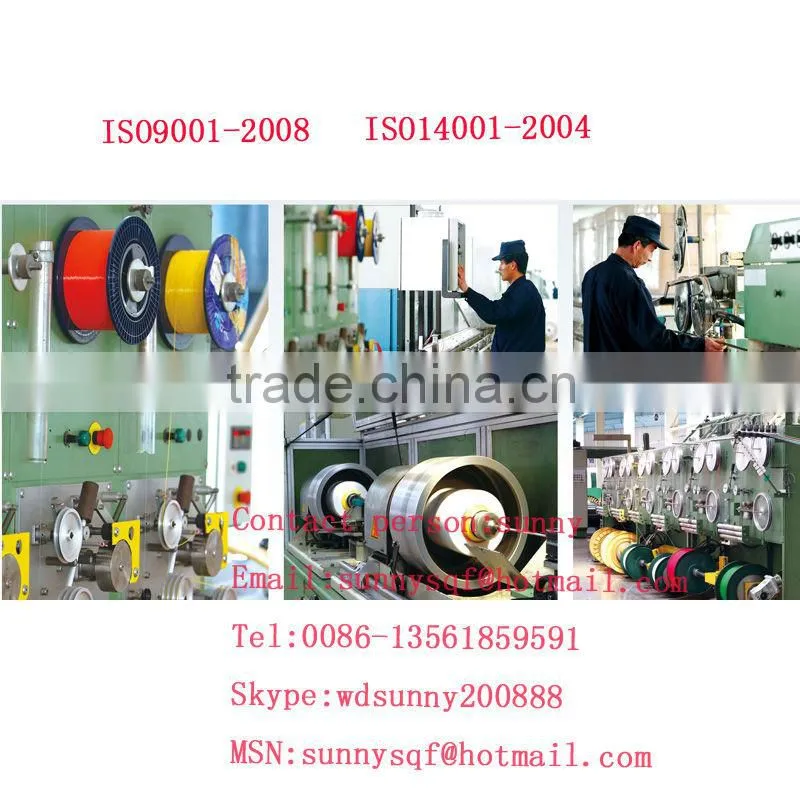

1)27 years experience2) ISO9001,ISO14001
3) IEC 60794,IEC60793
4) FOB price:$0.1-9/meter
5)Mini.order:1km customer's demand
Characteristics of product:
1.structure with aluminium tape against moisture, corrugated steel tape as armour,loose tube stranding and double sheaths;
2.loose tube material has good hydrolysis resistance performance and high strength;
pact structure, excellent water-blocking performance;
4.strict manufactureing processes.good mechanical performance and environmental properties.
Applications:
buried,cable trench,etc;
relay communication system;
core network, metropolitan area network and access network etc.
Temperature:
operating temperature:-40°C~+70°C
Standards:
IEC811,IEC60794,IEC60793
Optional:
1.the structure diameter can be designed for customers;
2.to design flame resistance, anti-rodent, anti-ant cable according to the customers' demands.

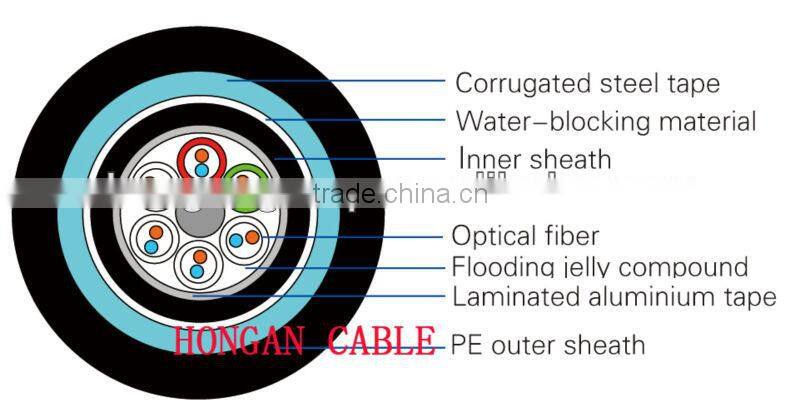

Cable structure:
Structural parameters:
| fiber count | nominal diameter (mm) | nominal weight (kg/km) | permitted tensile LT/ST(N) | permitted crush LC/SC (N) | bend radius static state/dynamic state (mm) |
| 2-36 | 14 | 211 | 600/1500(1000/3000) | 300/1000(1000/3000) | 12.5D/25D |
| 38-60 | 15.2 | 238 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 62-72 | 15.8 | 249 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 74-96 | 17.3 | 295 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 98-120 | 18.8 | 336 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 122-144 | 20.3 | 390 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 146-216 | 20.5 | 409 | 1000/3000 | 1000/3000 | 12.5D/25D |

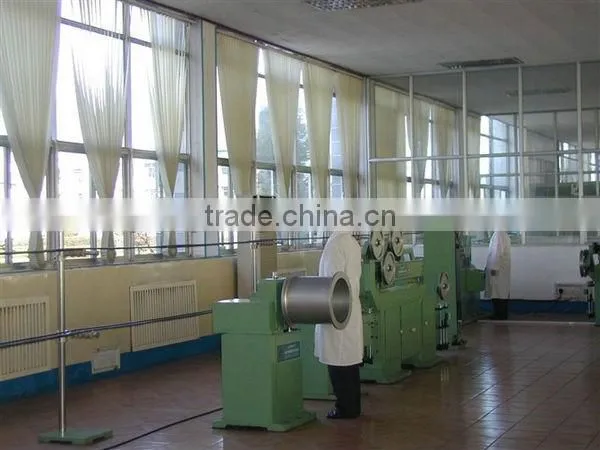

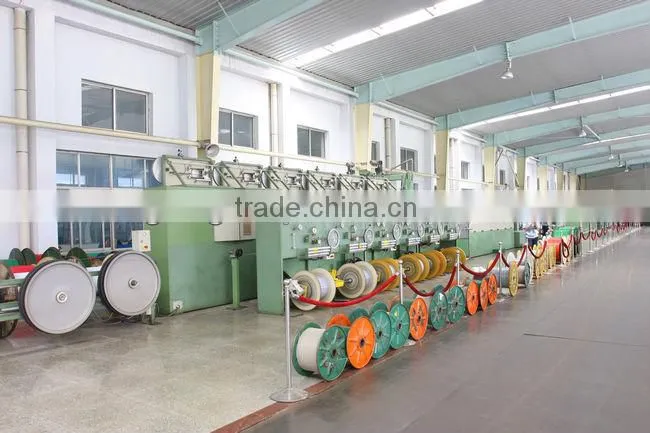

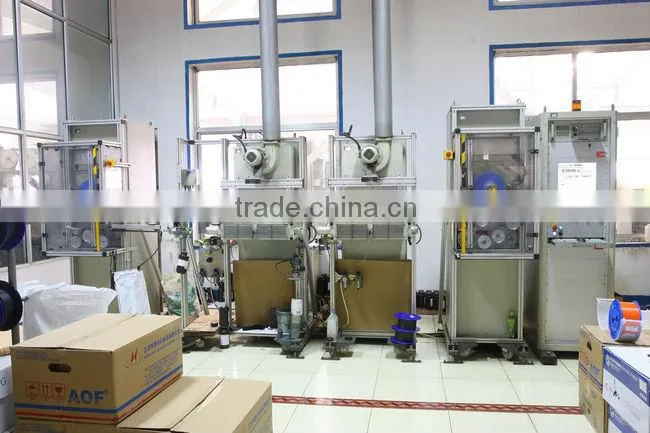

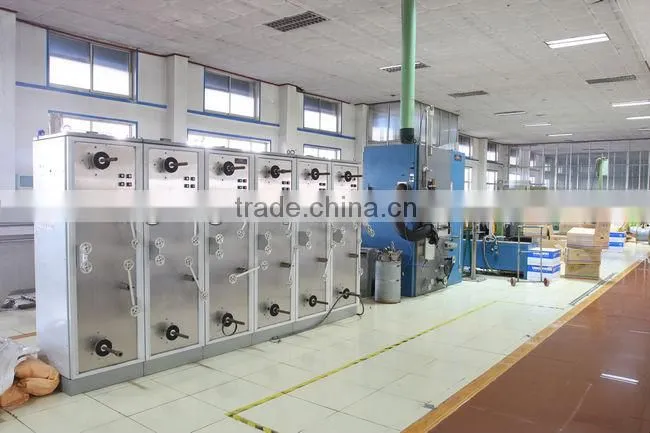

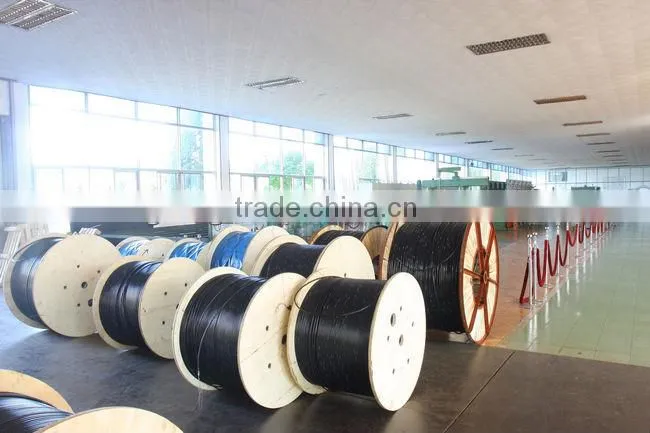

Product lines:

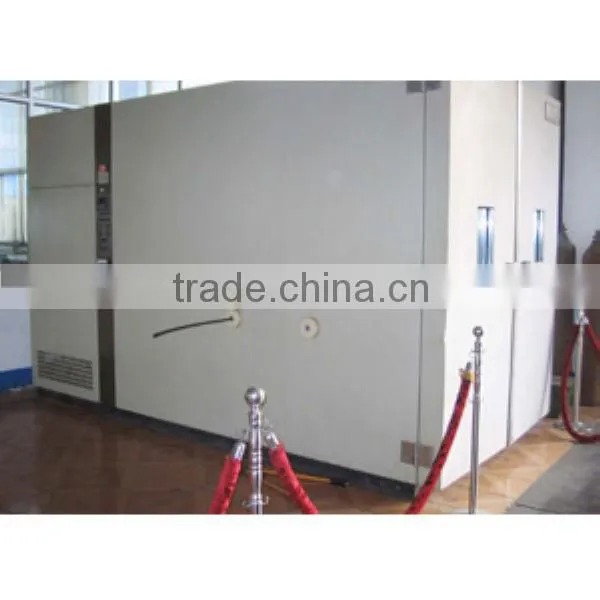

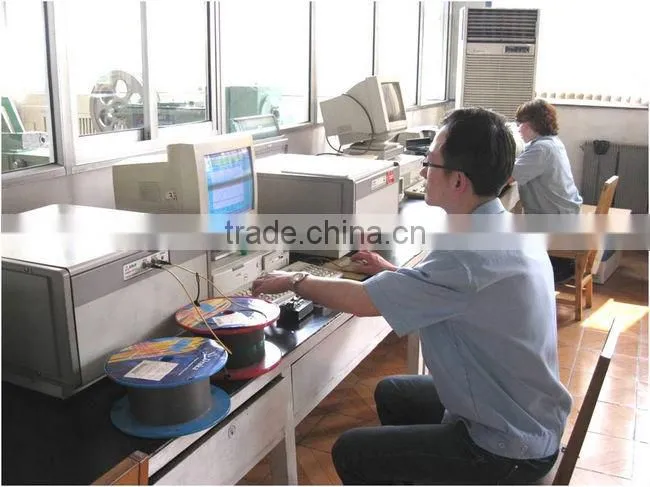

Test equipments:
