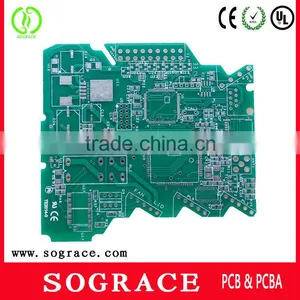

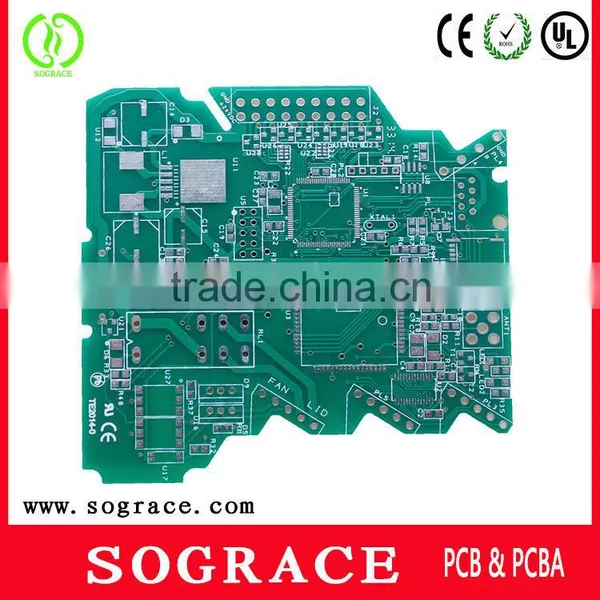

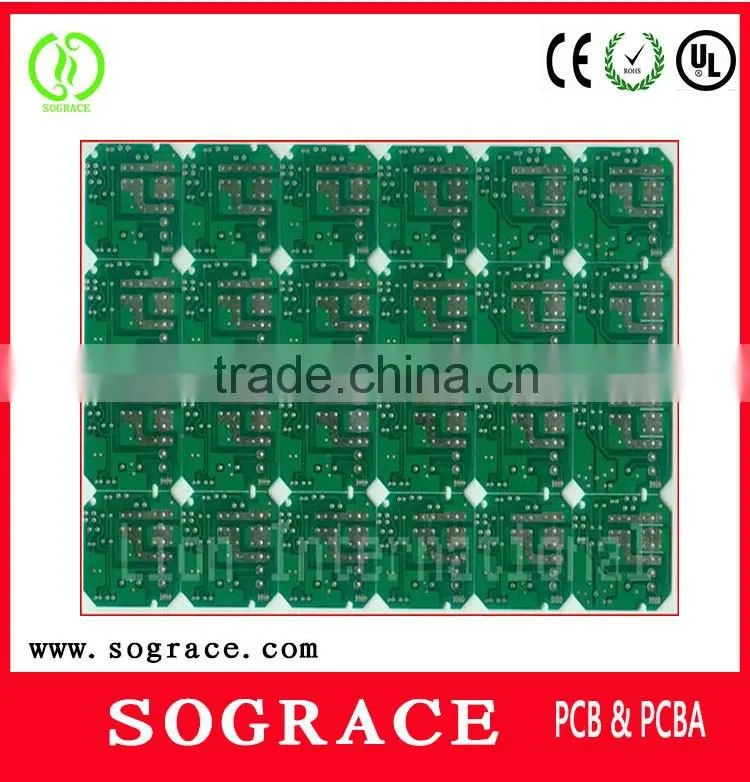

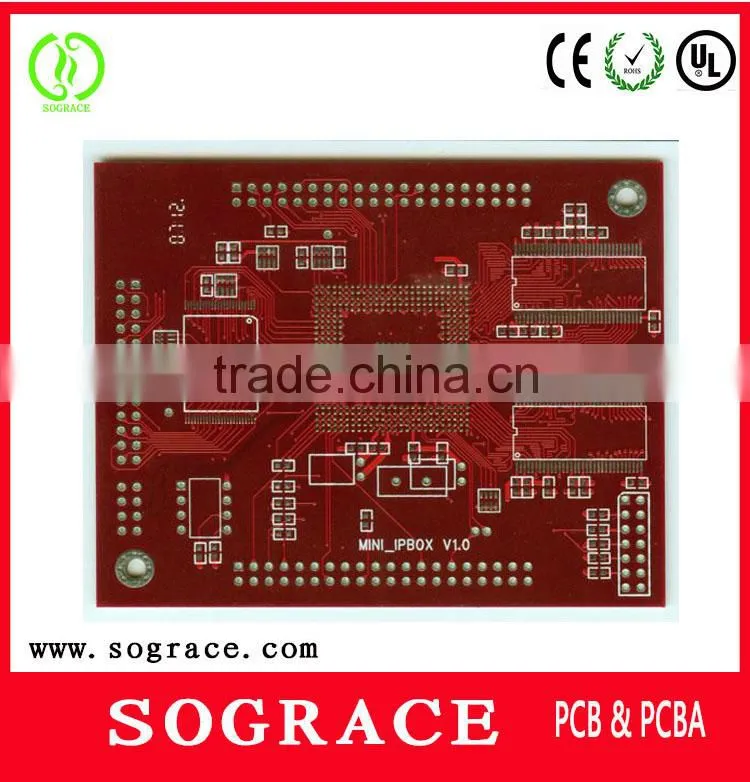

fr4 rigid multi-layer pcb board and pcb assembly fabrication
1.Circuit board assembly fabrication: One-stop pcb assemblies service, PCB design, PCB layout, PCB manufacturing, PCB Assemblies, components sourcing, PCBA Function Test, design solution.
2.Quote Needed: 1.PCB Gerber File; 2.Bom List for PCB Assembly; 3. Send us a sample of PCBA to make the exactly same for you. 4. Test Method for PCB Assembly.
3.PCB+COMPONENTS+SMT the whole service with top quality and very competitive price for you; OEM design and custom made products are welcomed.
PCB Technical capabilities
NO |
ITEM |
Technical capabilities |
1 |
Layers |
2-20 layers |
2 |
Max. Board size |
2000×610mm |
3 |
Min. board Thickness |
2-layer 0.15mm |
4-layer 0.38mm | ||
6-layer 0.55mm | ||
8-layer 0.80mm | ||
10-layer 1.0mm | ||
4 |
Min. line Width/Space |
0.075mm(3mil) |
5 |
Max. Copper thickness |
6OZ |
6 |
Min. S/M Pitch |
0.075mm(3mil) |
7 |
Min. hole size |
0.1mm(4mil) |
8 |
Hole dia. Tolerance (PTH) |
±0.05mm(2mil) |
9 |
Hole dia. Tolerance (NPTH) |
+0/-0.05mm(2mil) |
10 |
Hole position deviation |
±0.05mm(2mil) |
11 |
Outline tolerance |
±0.10mm(4mil) |
12 |
Twist & Bent |
0.75% |
13 |
Insulation Resistance |
>1012 Ω Normal |
14 |
Electric strength |
>1.3kv/mm |
15 |
S/M abrasion |
>6H |
16 |
Thermal stress |
288°C 20Sec |
17 |
Test Voltage |
50-300V |
18 |
Min. blind/buried via |
0.15mm (6mil) |
19 |
Surface Finished |
HAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold |
20 |
Materials |
FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base |
Our advantage
1.Sograce International Corporation is a professional PCB ,PCBA and LED Strip manufacturer servicing clients globally for ten years.
2.Sograce International Corporation can meet all your PCB manufacturing needs from single-sided to complex multi-layered PCB.
3.All orders receive and engineering file review before going to fabrication and download the industry’s best PCB board design software.
4.We have a consistent on-time shipping record and we are now shipping many of our orders early!
5.In Sograce, we are committed to giving you personal Customer EXCELLENCE not just Customer Service! When you call, we answer. When you email, we respond.
6.We don’t have any minimum lot requirements, so you never have to buy more than what you need.
7.Located miles from Shenzhen, hong kong port, Sograce can provide quick shipping.
Q:Sograce is an Foreign Trading company?
A:No! We are an PCB and PCB Assembly manufacturer, who responsible for PCBassembly service, Like SMT, DIP and so on.
Q:What kind assembly service?
A:1-12layer PCB board assembly service, End-products assembly service, Packaging service.
Q:What kind other service Sograce provide?
A:Sograce provide: Function testing, PCB and PCBA clone service, Purchasing service, IC decryption, and Porgramming service.
Q:How many workers in Sograce factory?
A:We totally have over 200 workers in our factory
Q:Do you have MOQ requirement?
A:Sograce MOQ requirement, just different quantity with different price level.
Q:Does Sograce provide customer's products to others, After you signed NDA files?
A: Absolutely not, Keep and protect our customer's profit is our highest purpose!
Q:Where your factory located?
A:Our factory located at Wanxia Industrial zone,Xinhe Road,Shajing Town,Baoan district,Shenzhen,china.
