Helilai Stadium Led Display/ph16 P10 P25 Perimeter Football Led Board/// Stadium Led Display Xxx Sport Led Display///led Stadium
US$ 400 - 900
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HELIAI
Model Number:
SCXK-P16
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Perimeter Stadium Led Display Screen P10 P16 P25US$ 400 - 1,200MOQ: 1 Square Meter -
Cheap Price High Quality P25 Full Color Stadium Advertising LED Display , P25LED Video Screen Panels,P25 RGB Display ModuleUS$ 200 - 500MOQ: 1 Square Meter
-
Stadium Sport Led Display ScreenUS$ 400 - 900MOQ: 1 Square Meter
-
Best Selling Sports Games Led Display Panel Billboard Stadium Football Sports Show DIP Led Full Color Display P10US$ 400 - 1,200MOQ: 1 Square Meter
-
Large Stadium Football Sports Events Led Display P10 P16 Outdoor Full Colorging Big Advertising ScreenUS$ 400 - 1,200MOQ: 1 Square Meter
Place of Origin
Guangdong, China
Brand Name
HELIAI
Model Number
SCXK-P16
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Other, video-message-Time-Graphics-Animation
Pixels
16mm
Screen Dimension
Customized Size
WELCOM TO ORDER YOUR STADIUM LED DISPLAY SCREEN FROM OUR FACTORY
Applications:
LED display is applied for advertising, city beautifying, information publicity, great concerns and relative activities.
1. Outdoor advertising, digital billboards, advertising in big companies

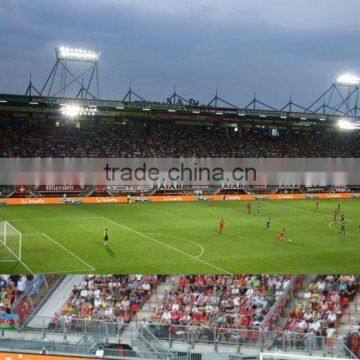

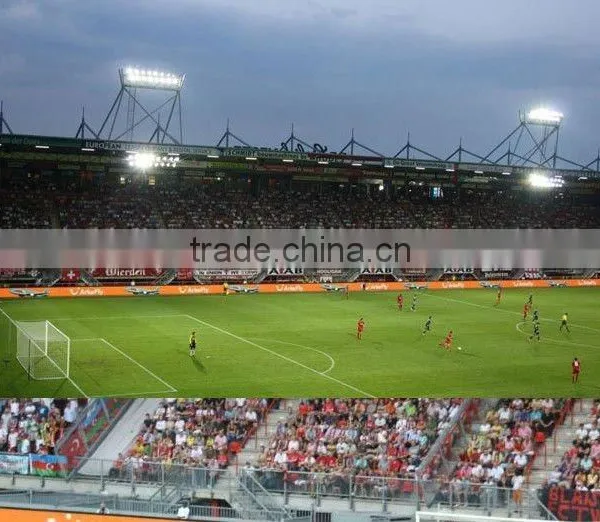

2. Stadium, Sports halls, fields, playgrounds
3. Airports, bus stations and railway passenger terminals
4. Facades of shopping malls, department stores, banks and car dealerships
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.
1- Technical Specification
| Parameter | Unit | Value |
| Pitch | mm | 16 |
| Brightness | nits | 8,500 |
| Color temperature | deg. K | 6,500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 130 (+65/-65) |
| Viewing angle - Vertical (50% brightness) | deg. | 60(+30/-30) |
| Panel weight | kg | 60 |
| Panel width | mm | 1,280 |
| Panel height | mm | 896 |
| Panel depth | mm | 170 |
| Panel area | sq. m. | 1.15 |
| Panel material | Epoxy paint coated Cold rolled steel | |

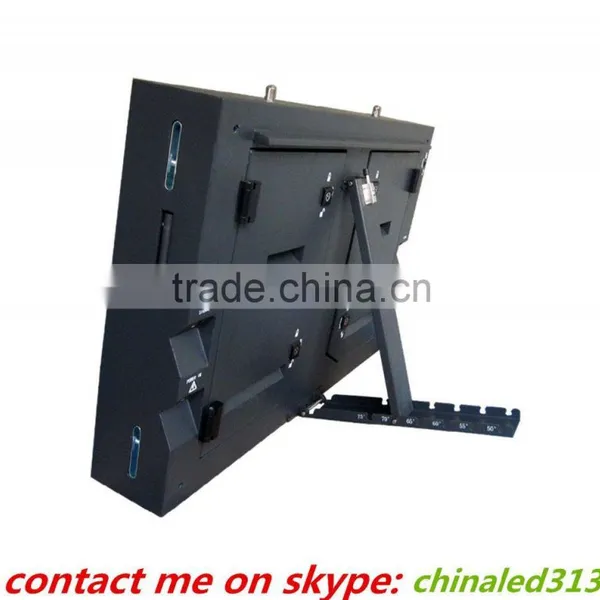

| Panel Mode | Quick Assembly Cabinet with Bracket | |

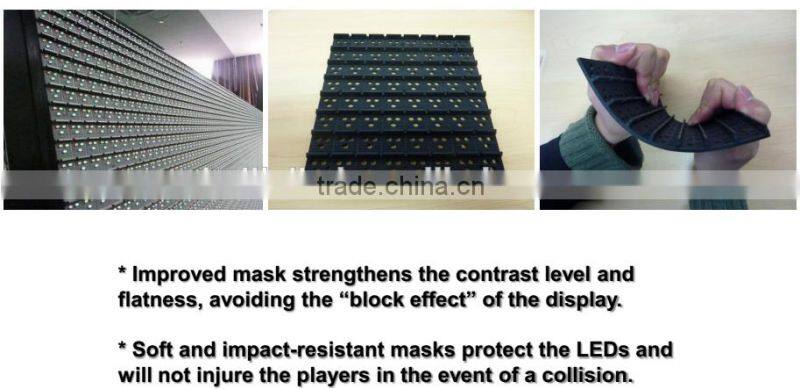

| Special Design | Soft Plastic Mask | |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 2R1G1B |
| Resolution per panel | 80x56 | |
| Dot per panel | 4,480 | |
| Dot per sq. meter | 3,906 | |
| LED per sq. meter | 15,624 | |
| Recommended minimum viewing distance | m | 12 |
| Recommended best viewing distance | m | 16~48 |
| Colors | 1,073.7 million | |
| Grey scale (linear) | Levels | 1,024 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1,000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / sq. m. | 610 |
| Input power (typical) | Watts / sq. m. | 244 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |

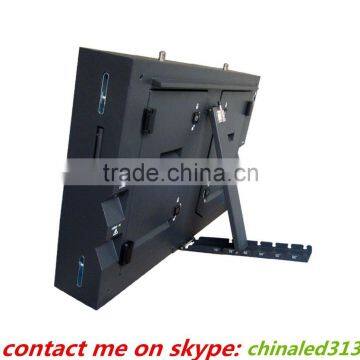

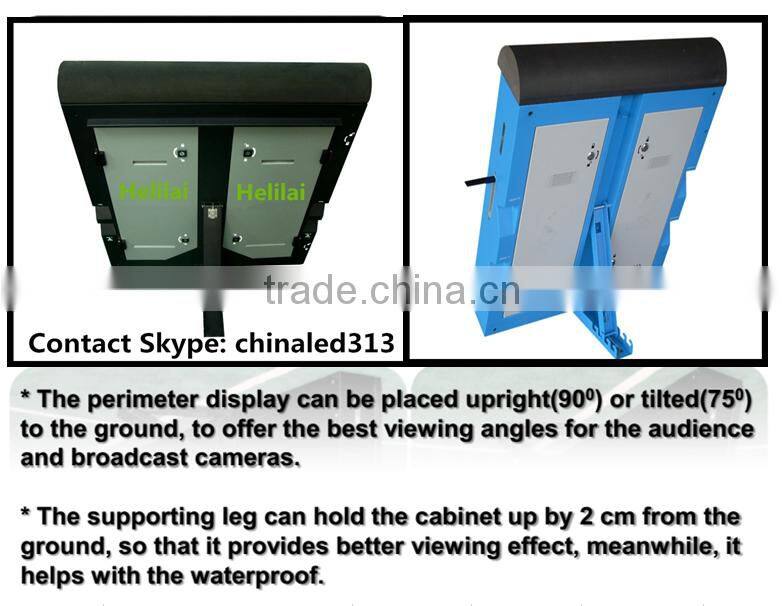

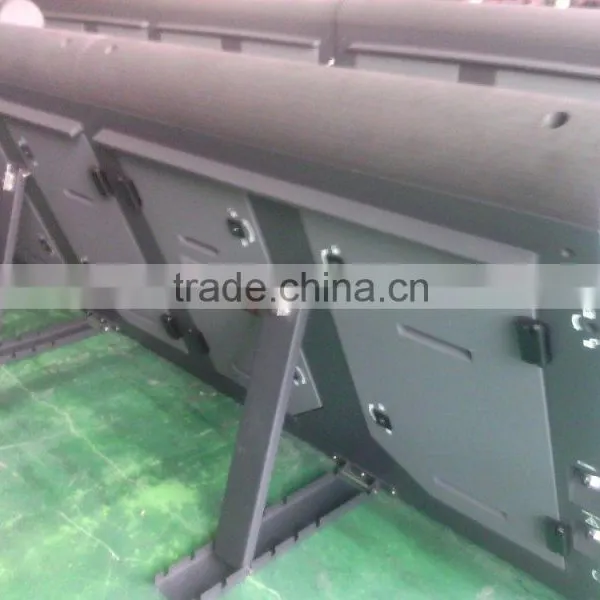

| Mounting system | Stand on ground by bracket |
Cabinet design we can manufacture according to your need
2-Helilai Factory
3-WOODEN BOX PACKAGE
Many selection for your screen ,I am ready her to help you.
Outdoor series:
P6 outdoor full color led module/or screen display
P6.66 outdoor full color led module/or screen display
P8 outdoor full color led module/or screen display
P10 outdoor full color led module/ or screen display
P12 outdoor full color led module/ or screen display
P16 outdoor full color led module/ or screen display
P20 outdoor full color led module/ or screen display
P25 outdoor full color led module/ or screen display
indoor series:
P3,P4,P5,P6,P7.62,P6,P10 SMD indoor full color led module/display.
you need a professional to manufacture your Fix or Rental Indoor/Outdoor LED screen
Contact : Michael wang for more information 24h/online:
Skype :chinaled313
Tel :+86-13006688870.
