P10 Outdoor Single Color LED Board LED Display White Led Display Module

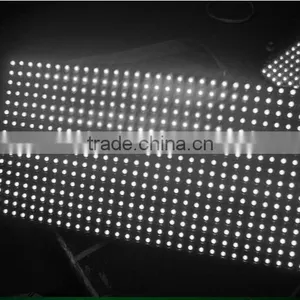

P10 Outdoor Single Color LED Board LED Display White Led Display Module thumbnail-1
P10 Outdoor Single Color LED Board LED Display White Led Display Module photo-1
US$ 6 - 10 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Helilai
Model Number:
Helilai-P10-white
Contact Supplier Request Quote Chat Now
Shenzhen Helilai Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Helilai
Model Number Helilai-P10-white
Usage Outdoor
Tube Chip Color Other, White
Display Function Graphics
Pixels 10mm
Screen Dimension 320mmx160mm

Parameter

P10  Single  Color  Outdoor  Module
Item Unit Parameter
Pixel  Pitch mm 10.00
Resolution  of  Module dots  32x16
Module  Size mm 320x160
Led  Package                                                                                             DIP  Oval  346  Lamp
Pixel  Configuration                                                                                           1R/1G/1B/1W/1Y  Optional
Chip  Brand  of  LEDs                                                                                                     Epistar
Module  Weight kgs/pc 0.65
Pixel  Density dots/sqm 10, 000
Brightness  (White  Balance) nits(cd/sq. m) 2500-3500
Red  Wavelength nm 620-625
Green  Wavelength nm 520-525
Blue  Wavelength nm 470-475
Scan  Mode                                                                                                 1/4  Scan
Viewing  Distance  M 5~100
Best  View  Distance M 12.5~33m
Viewing  Angle-Horizontal deg. 80
Viewing  Angle-Vertical deg. 60
Module  Maximum  Power W 20
Max.   Power  Consumption W/sq. m 400
Avg.   Power  Consumption W/sq. m 100~250
Working  Voltage                                                                                                     40A  5V
Power  Supply                                                                                                 AC  110/220V
Waterproof  Grade                                                                                               IP65
Refresh  Rate Hz/S 300
Frame  Rate Hz/S ≥   60
Gray  Scale                                                                                               256  grade
Display  Function                                                                                         Texts
Input  Signal                                                                             RS232/485,   USB, Ethernet
Luminance  Degradation  Less  than  5%  after  1000  hours  Ageing  test,   testing  current  30mA,   under  normal  temperature  25  centigrade.
Defective  Dot  Rate                                                                                               < 0.0001
Life  Span hours 100, 000
MTBF hours > 5, 000
Storage  Temperature centigrade   -35  --  +80
Working  Temperature centigrade   -20  --  +80
Control  System   Asynchronous  or  Synchronous
Quality  Certificate CE, CCC, ISO9001: 2008
Warranty 2  Years
Working  Environment Outdoor





Advantage

We can offer you a very cheap price with top quality modules!

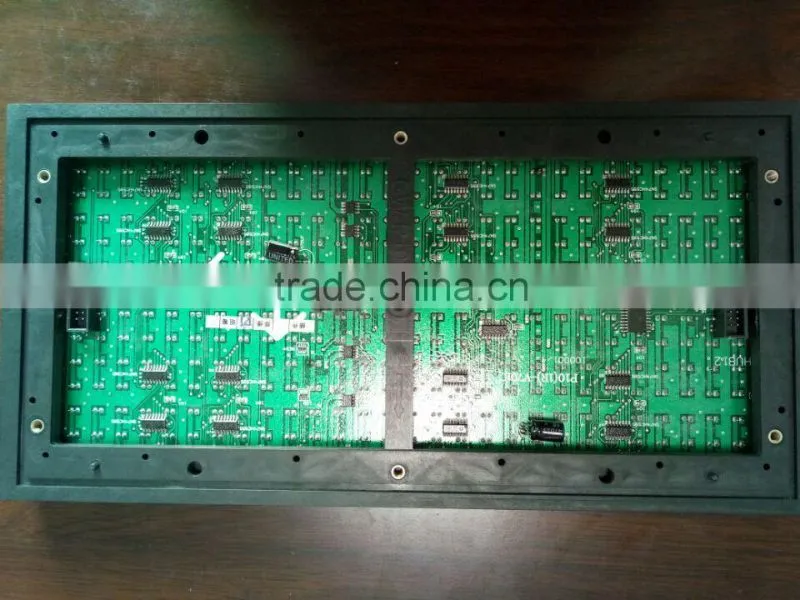

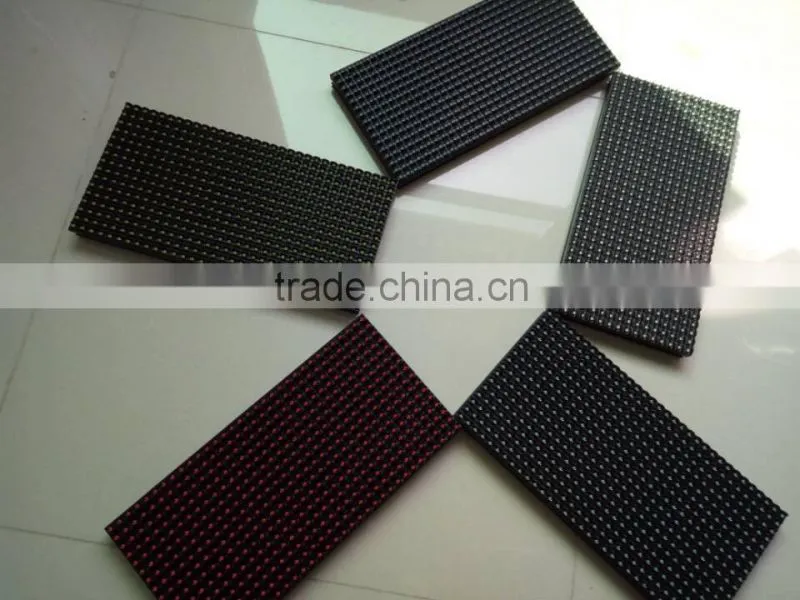

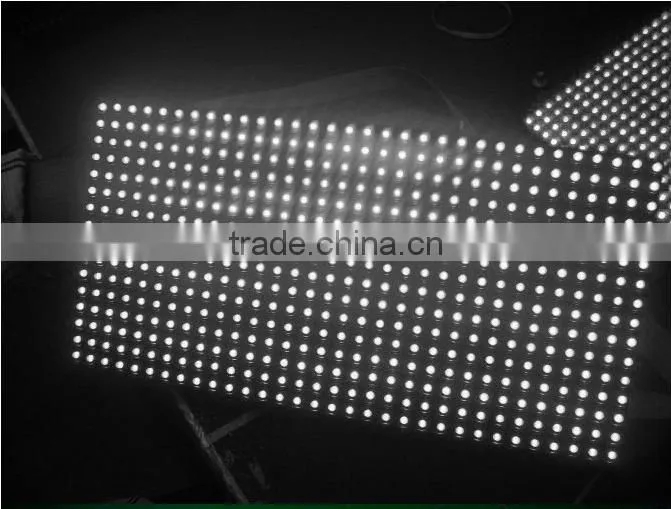

P10 Outdoor Single Color LED Board LED Display white led display module



P10 Outdoor Single Color LED Board LED Display white led display moduleP10 Outdoor Single Color LED Board LED Display white led display module



1. Taiwan Epistar DIP546 LED lamps, not easy to be damaged , brightness is up to 8000nits.

2. constant current chip driving reduces the power consumption and prompts the stability.

3. Can undertake single point, single lamp maintenance, the cost is low.





Packaging



1,We can pack your goods according to your demands.





Shipping

1,We Ship to Worldwide.

2,Goods are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc.

3,Delivery time: 2-7days for samples, 8-20 days for bulk order.



Our Service

1, Guidance service: We can guide on line if customers have questions about the installation and usage.

    For large project, we can send an engineer  to customer’s country for on-site guidance.

2, Warranty period: 3 years warranty.

3, Maintenance principles: solve problems as soon as possible.



Contact me to get the cheap price and catalogue!



Angel Lee (Sales Manager)

Mob: +86 13266771147
Skype : jackybrazil
Wechat : wxid_jpfqwnv991eu21
QQ :1158665386
