P10 Red Led Module,p10 Outdoor Red Led Module,p10 Led Module Red

P10 Red Led Module,p10 Outdoor Red Led Module,p10 Led Module Red thumbnail-1
P10 Red Led Module,p10 Outdoor Red Led Module,p10 Led Module Red thumbnail-2
P10 Red Led Module,p10 Outdoor Red Led Module,p10 Led Module Red thumbnail-3
P10 Red Led Module,p10 Outdoor Red Led Module,p10 Led Module Red photo-1
P10 Red Led Module,p10 Outdoor Red Led Module,p10 Led Module Red photo-2
P10 Red Led Module,p10 Outdoor Red Led Module,p10 Led Module Red photo-3
US$ 4 - 8 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HELILAI
Model Number:
P10
Contact Supplier Request Quote Chat Now
Shenzhen Helilai Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HELILAI
Model Number P10
Usage Outdoor
Tube Chip Color Other, red glue yellow green white
Display Function Other, text message ,graphic
Pixels 10mm
Screen Dimension Size 320*160mm



Features:







1.Applications: The applications for Multi Line Displays are endless.



2.Up-dated Multi Line LED Electronic Displays are easy to use and can be up-dated quickly and with no technical expertise



3. Character heights: Available in a variety of character heights: although if you have a multi line display made up from a number of Bi-Line displays, you can show a single line of text in double height format which will usually double these heights. Larger height signs are also available.



4.Color:LED Colour Options are: RED, GREEN, YELLOW, or TRI-COLOUR, blue and white are also available



5.Various speed and Characters :The signs can display most different  Characters and Graphic Symbols.



The signs can run at variable Speeds, and have various display features including Bold, Run Left/Right etc.



6.Can be controlled remotely , like WIFI, GSM, GPRS,3G,4G,5G

.



module parameters
Model P10
Pixel pitch 10 mm
Pixel configuration 1R
Pixel matrix per panel 32*16pixels
Module resolution rate 32*16=512dots
Module dimensions (W×H) 320*160mm
Module dimensions (W×H) 12.6*6.3 Inch
Weight 0.7kg±0.05kg
Package material Polycarbonate
Construction combined driver board
Input votage 4.8-5.5V
MAX. input current 3.4A±0.1A
Driving mode 1/4 constant votage scan
Module power ≤17.0 W
cabinet parameters
Brightness ≥3000 cd/m2
Cabinet dimensions (W×H×D) 960*960*70 mm
Cabinet dimensions (W×H×D) 37.8*37.8*2.76 Inch
Resolution ratio 96*96=9216dots
Weight 33.5±0.05 kg
Weight 99.78±0.023 lbs
Pixel density 3906 dots/m2
Viewing angle (H/V) 80±15 deg
Best viewing distance ≥10m
MAX. power ≤400W/m2
AVE. power 200W/m2
control parameters
Gray scale per color 0-128 to optional
Colors 256
Life time ≥100,000 hours
MTBF ≥10,000 hours
 Refresh rate ≥ 75Hz
MAX. power 1000 W/m2
Input voltage (AC) 110V ~ 240V
Operating temperature -20°C ~+ 50°C
Operating humidity 10% ~ 90%
Source compatibility (with video processor) DVI/VGA,Vedio(mutiple modes),RGBHV,composite Vedio Single,S-VIDEO,YpbPr(HDTV)





Single color module



DIP series
PH10 red color outdoor module size 320x160
PH10 yellow color outdoor module size 320x160
PH10 green color outdoor module size 320x160
PH10 blue color outdoor module size 320x160
PH10 white color outdoor module size 320x160
PH16 single color outdoor module size 256x128
PH12.5 single color outdoor module size 400x200
PF20 single color outdoor module size 320x160









p10 red led module,p10 outdoor red led module,p10 led module red









p10 red led module,p10 outdoor red led module,p10 led module red









p10 red led module,p10 outdoor red led module,p10 led module red









p10 red led module,p10 outdoor red led module,p10 led module red







Our company

p10 red led module,p10 outdoor red led module,p10 led module red









Workshop

p10 red led module,p10 outdoor red led module,p10 led module red

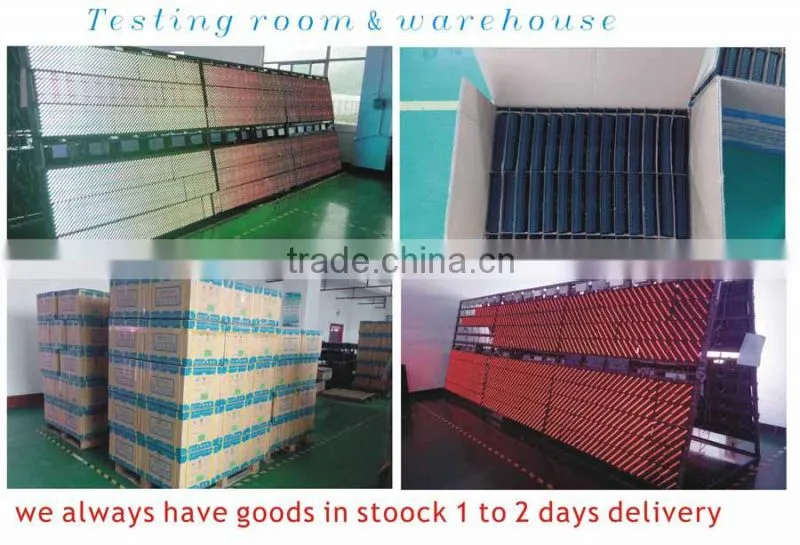

 Testing room &Warehouse

p10 red led module,p10 outdoor red led module,p10 led module red



 Packaging

p10 red led module,p10 outdoor red led module,p10 led module red







Competitive Advantages:

1) Stable quality and fast Response;

2) Short delivery,effective production;

3) Sample order,trial order be acceptable;

4) Good communication;

5) 2 years warranty;





Choose us!

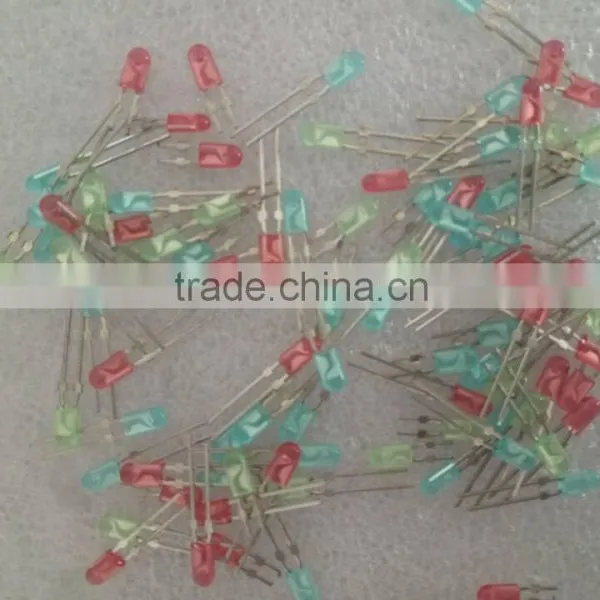

  • Taiwan Epistar LED lamps
  • JXI 5020 OR MIB5188 IC





We manufacture all kind of module



I am her to help you to get the cheap price.



contact me on skype: jacky.wenjie or call me on Mb: +86-13556817643 I am 24h online
