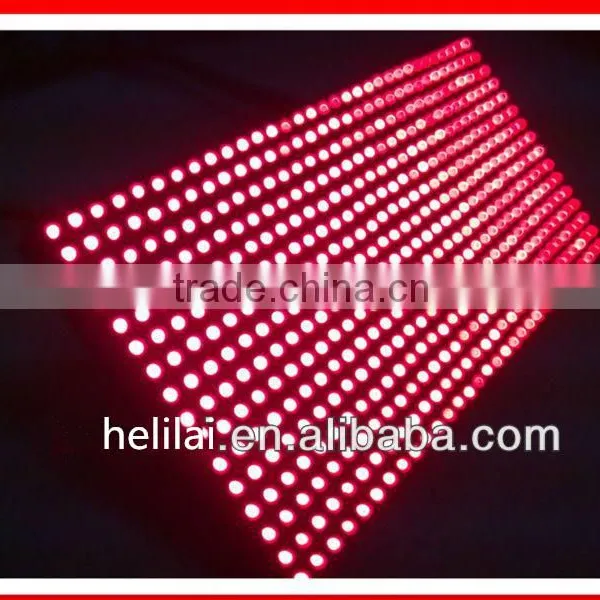

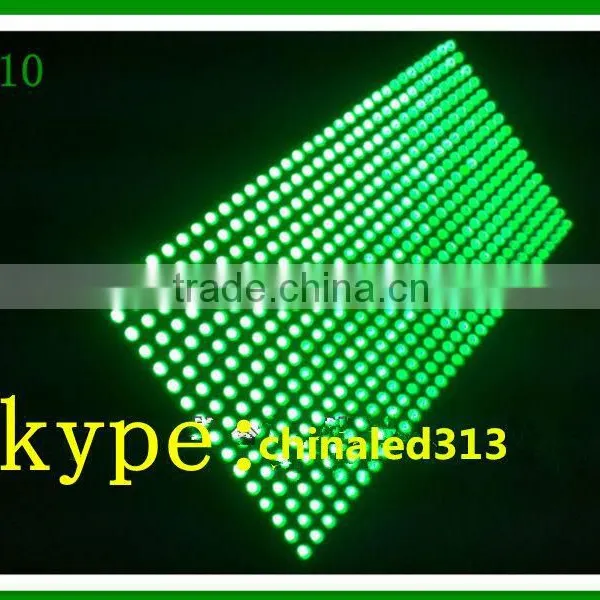

P10 Outdoor Single Color Led Display Module Design and Led Display Board,red Green Blue Color Led Display Module
US$ 4 - 10
MOQ: 5 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
helilia
Model Number:
P10
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Green P10 Outdoor LED Display Module Single Color Red Yellow White Blue and Led Display Module Unit BoardUS$ 4 - 12MOQ: 5 Pieces -
P10 Outdoor Single Color Led Display Screen Module,red,green,white,blue,yellow Led Display Module BoardUS$ 4 - 12MOQ: 5 Pieces
-
Single Color Led Display Screen Module,red,green,white,blue,yellow High Quality Compititive Price P10 LED Display ModuleUS$ 4 - 12MOQ: 5 Pieces
-
HELILAI P10 Single Color RED 320x160 Outdoor Module for Led Display ScreenUS$ 4 - 8MOQ: 5 Pieces
-
P10 RED Color 320x160 Outdoor Module for Led Display Screen Water ProofUS$ 4 - 8MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
helilia
Model Number
P10
Usage
Other, indoor and outdoor
Tube Chip Color
Other, bllue,red,yellow,white,green
Display Function
Other, text messange,amimation,graphics,time
Pixels
10mm
Screen Dimension
160mm
Welcome to our factoy

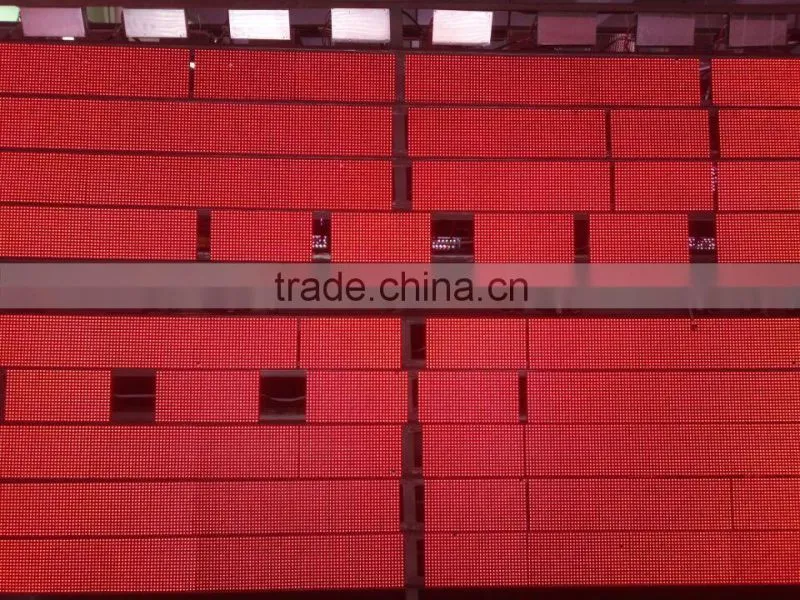

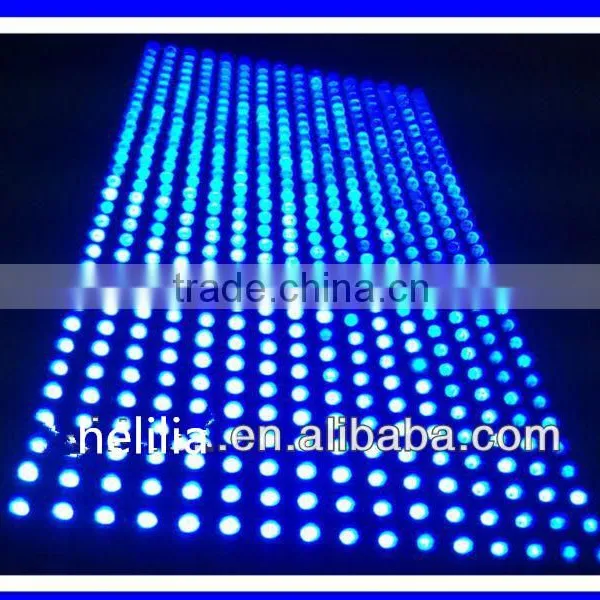

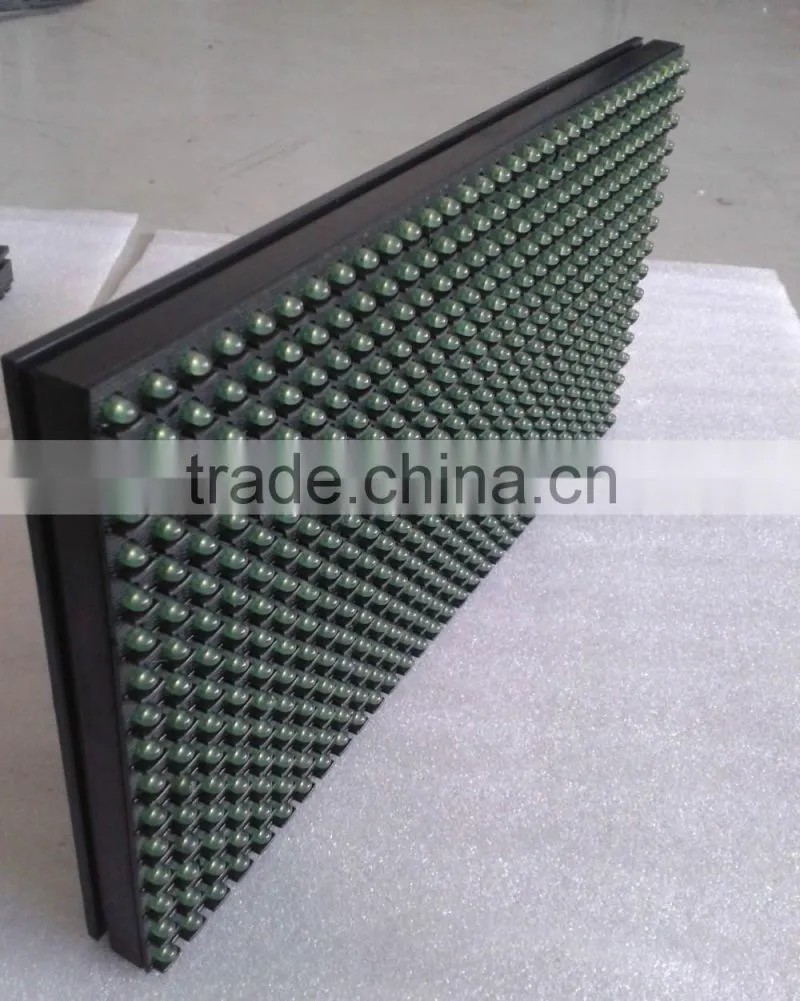

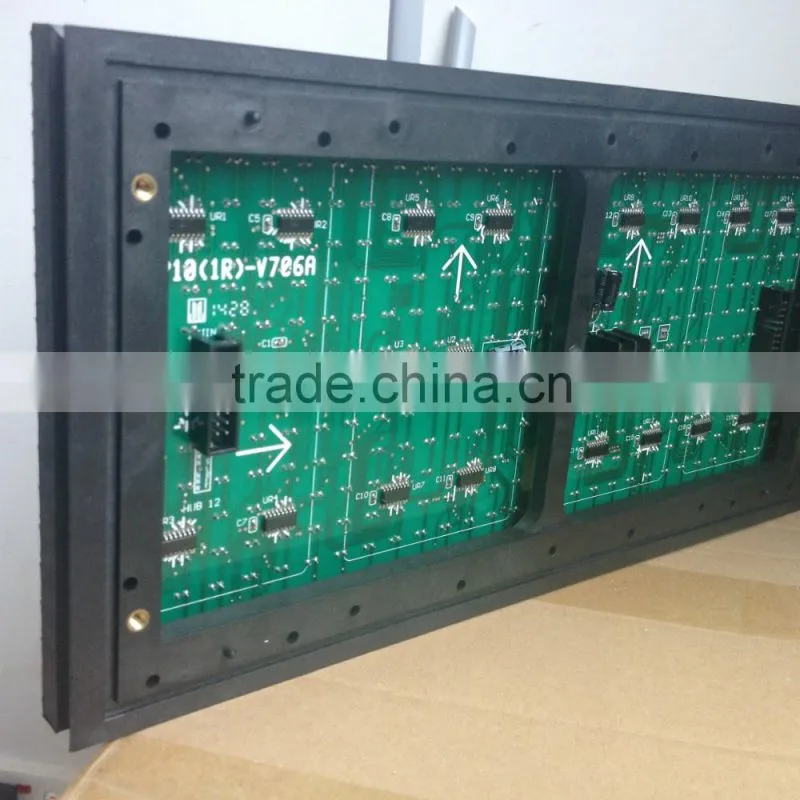

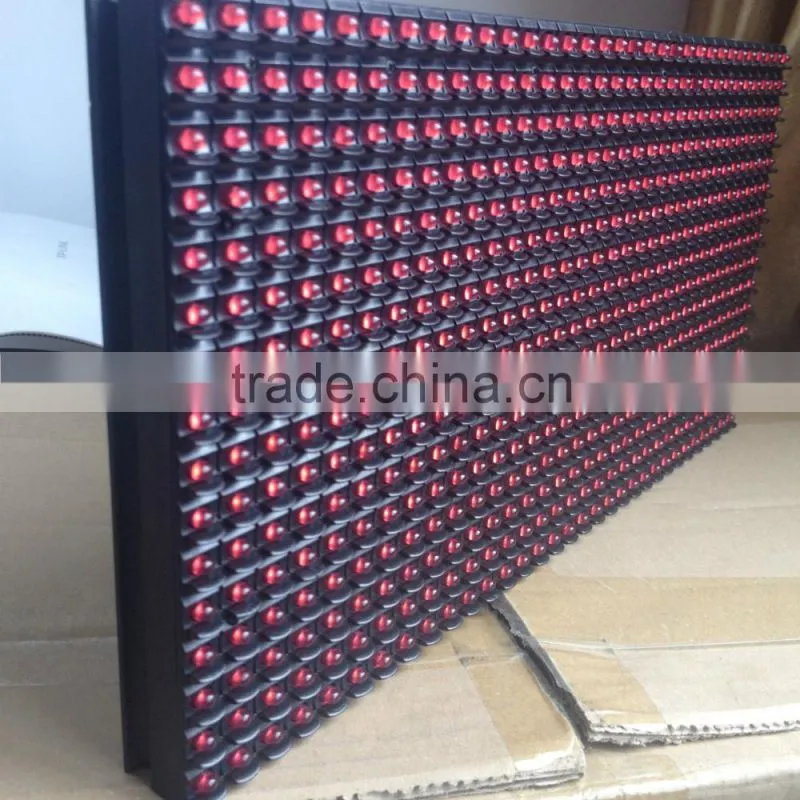

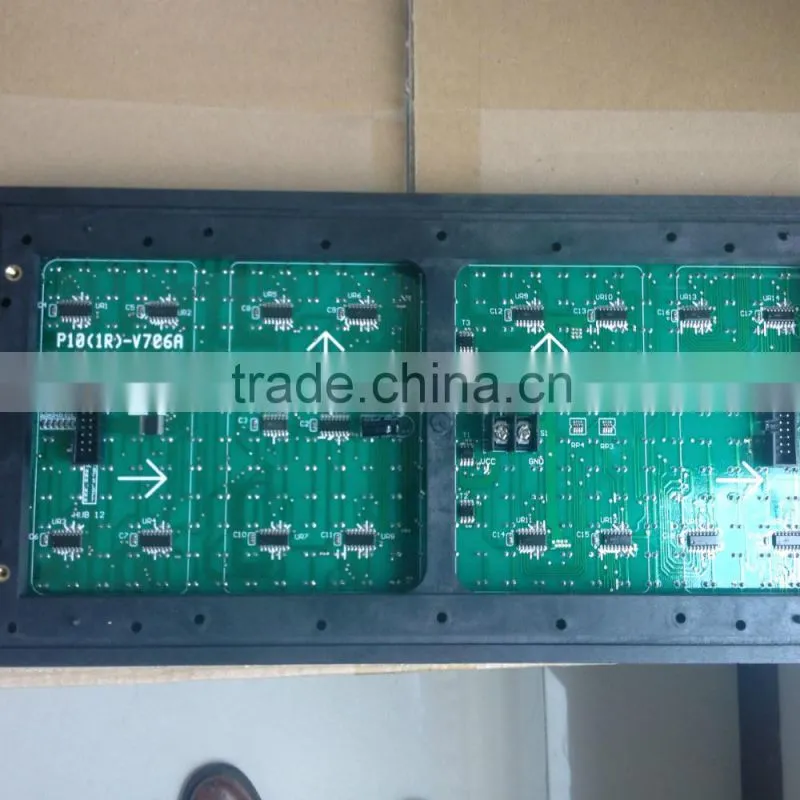

p10 outdoor single color led displayled design and led display board,red green blue color led display module
product:
Applications Occasions:
Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,
airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Specifications:

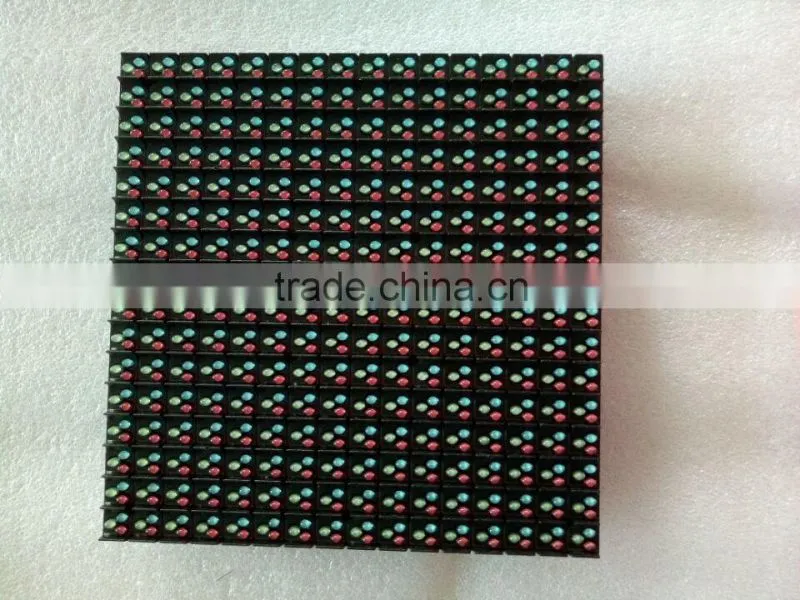

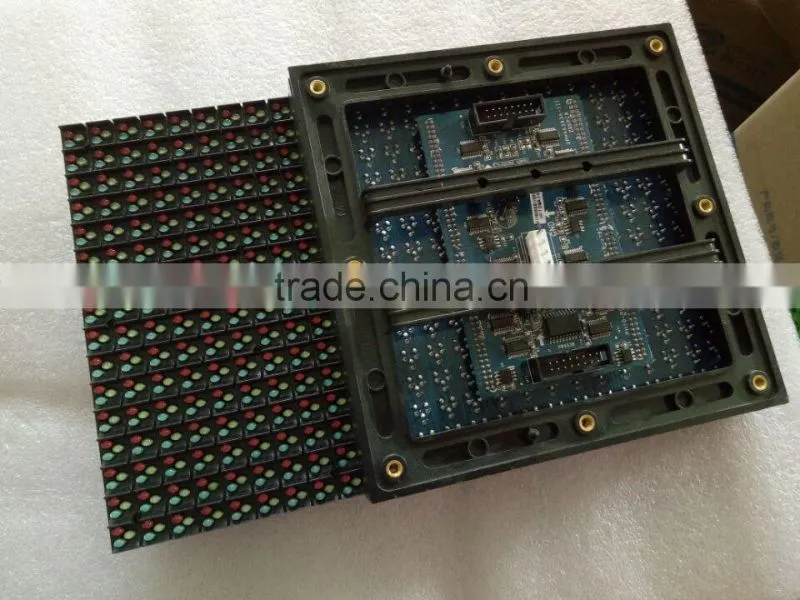

P10 Outdoor Full Color LED Display Screen
Pixel configuration |
DIP346 1R1G1B |
|
LEDs configuration |
Red:wave length: 625~630nm;1100-1300mcd Green:wave length: 525~530nm;1900-2400mcd Blue:wave length: 470~475nm;500-700mcd |
|
Pixel pitch(mm) |
10 |
|
Pixel density(dots/sqm) |
10000 |
|
Calibrated brightness(cd/sqm,nit) |
9000 nits(adjustable) |
|
Calibrated brightness proportion ratio |
R:G:B = 3:6:1 |
|
Contrast ratio |
4,500:1 |
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
View angle(degree)(50% brightness) |
V60/H120 |
|
Color capability |
4.4 trillion |
|
Refresh rate(Hz) |
>1200 Hz |
|
Frame frequency(Hz) |
>60 Hz |
|
Interface port |
DVI interface(DVI connector) |
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
Protection grade |
IP65 front side/IP43 backside |
|
LED Drive |
Constant-current |
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
Signal transmission direction |
Horizontal |
|
Operating temperature(Celsius degree) |
-30 ~ 65 |
|
Storage temperature(Celsius degree) |
-35 ~70 |
|
Operation humidity(RH) |
0-95% |
|
Operation humidity(RH) |
0-99% |
|
Servicing |
Front and back serving optional |
|
Control mode |
Synchronous & asynchronous available |
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
Power |
120/240 V AC single phase(50-60Hz) |
|
Maximum power consumption(W/sqm) |
1000 |
|
Average power consumption(W/sqm) |
500 |
|
Screen operation mode(scan/static) |
1/4 |
|
Module configuration(Pixels quantities of the module) |
Length |
16 |
Height |
16 |
|
Module dimensions(mm) |
Length |
160 |
Height |
160 |
|
Cabinet configuration |
Length |
128 |
Height |
96 |
|
Cabinet dimensions(mm) |
Length |
1280 |
Height |
960 |
|
Width |
120 (+30~35mm module) |
|
Aspect Ratio(L:H) |
4:3 or 16:9 |
|

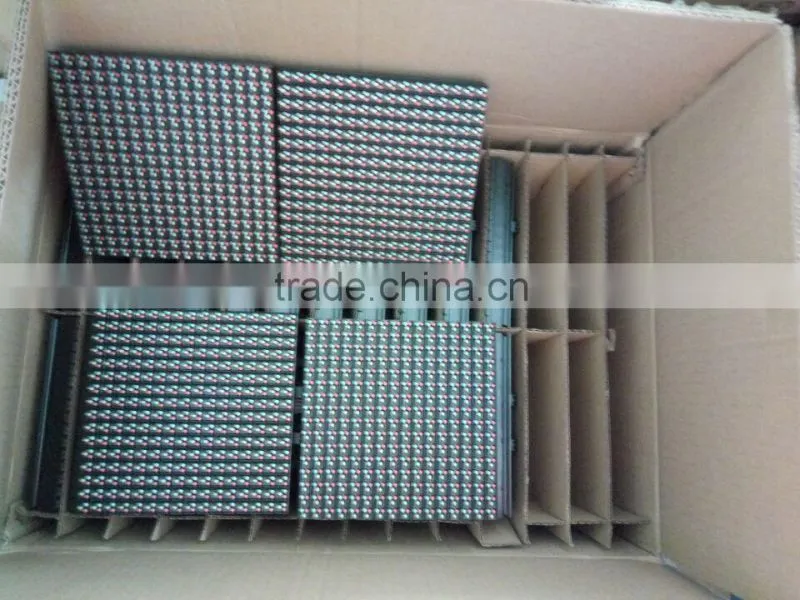

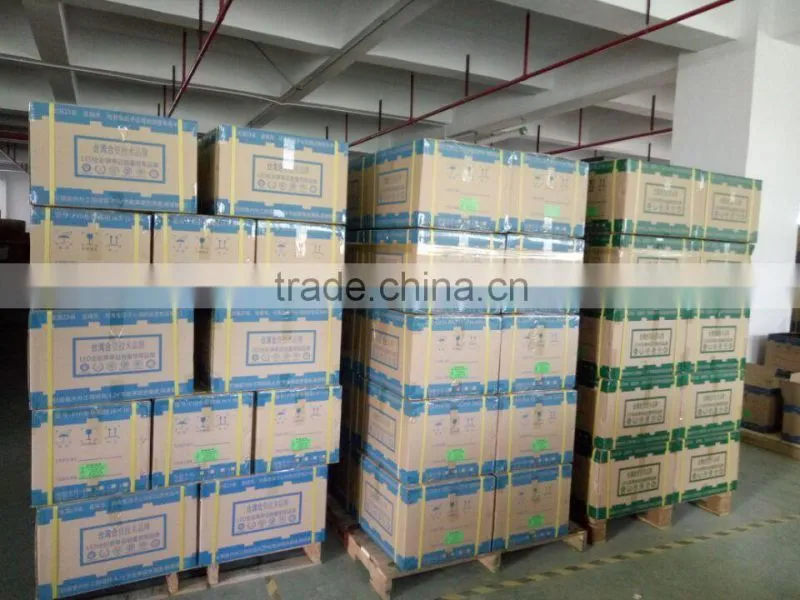

Packaging configuration |
1~4 standard cabinets in a packing case |
|
Packing material |
Wooden case/carton/flight case(optional) |
|
Packing weight(KG) |
net |
50KG/m2 |
gross |
55KG/m2 |
|
