Shenzhen led display outdoor replacement lcd tv screen led programmable sign
---------------------------------------------------------------------
Parameter
Pixel configuration |
DIP346 1R1G1B |
|
LEDs configuration |
Red:wave length: 625~630nm;1100-1300mcd |
|
Pixel pitch(mm) |
16 |
|
Pixel density(dots/sqm) |
3906 |
|
Calibrated brightness(cd/sqm,nit) |
8500 nits(adjustable) |
|
Calibrated brightness proportion ratio |
R:G:B = 3:6:1 |
|
Contrast ratio |
4,500:1 |
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
View angle(degree)(50% brightness) |
V60/H120 |
|
Color capability |
4.4 trillion |
|
Refresh rate(Hz) |
>1500 Hz |
|
Frame frequency(Hz) |
>60 Hz |
|
Interface port |
DVI interface(DVI connector) |
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
Protection grade |
IP65 front side/IP43 back side |
|
LED Drive |
Constant-current |
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
Signal transmission direction |
Horizontal |
|
Operating temperature(Celsius degree) |
-30 ~ 65 |
|
Storage temperature(Celsius degree) |
-35 ~ 70 |
|
Operation humidity(RH) |
0-95% |
|
Operation humidity(RH) |
0-99% |
|
Service |
Front and back service optional |
|
Control mode |
Synchronous & asynchronous available |
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
Power |
120/240 VAC single phase(50-60Hz) |
|
Maximum power consumption(W/sqm) |
850 |
|
Average power consumption(W/sqm) |
400 |
|
Screen operation mode(scan/static) |
Static |
|
|

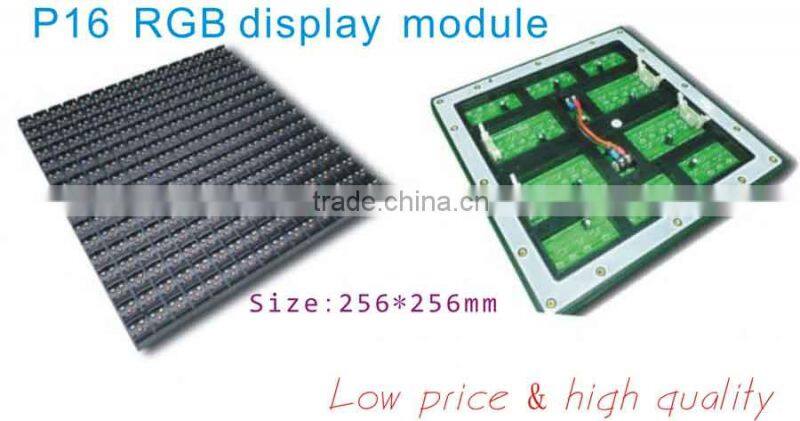

Module configuration(Pixels quantities of the module)
|
Length |
16 |
Height |
16 |
|
|
Module dimensions(mm)
|
Length |
256 |
Height |
256 |
|
|
Cabinet configuration
|
Length |
64 |
Height |
48 |
|
|
Cabinet dimensions(mm)
|
Length |
1024 |
Height |
768 |
|
Width |
120 (+30~35mm module) |
|
Aspect Ratio(L:H) |
4:3 or 16:9 |
|
Packaging configuration |
1~4 standard cabinets in a packing case |
|
Packing material |
Wooden case/carton/flight case(optional) |
|
|
Packing weight(KG)
|
net |
50KG/m2 |
gross |
55KG/m2 |
|
Competitive Advantages:
1) Stable quality and fast Response;
2) Short delivery,effective production;
3) Sample order,trial order be acceptable;
4) Good communication;
5) 2 years warranty
