Led Display Screen //// Led Display Boards/// Led Display Panel/// Indoor Led Display Screen// RGB Video Wall Led Display

Led Display Screen //// Led Display Boards/// Led Display Panel/// Indoor Led Display Screen// RGB Video Wall Led Display photo-1
US$ 550 - 2,500 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HELILAI
Model Number:
KH-P3
Payment & Shipping
Payment Methods:
Port of Shipment:
exw price
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name HELILAI
Model Number KH-P3
Usage Indoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, p3 smd
Screen Dimension Customized
Special Offer for p3 rental indoor led display for stage,concert,rental use for advertising
Product Description
LED Module Parameters
1 Pixel Pitch 3 mm
2 Pixel Encapsulation SMD 2121
3 Pixel Configuration 1R1G1B
4 Module Size 192*192MM
5 Module Resolution 648*64
6 Driving Method 1/16 Scan, Constant Current
7 Driving IC 2016

LED Cabinet Parameters
1 Cabinet Size (L*H*D) 576*576MM
2 Cabinet Resolution 192*192
4 Average Power Consumption 700 w/sqm
5 Cabinet Material Die-casting Aluminum
6 Cabinet Weight 30kg/sqm

Screen Parameters
No. Optical Details
1 Density 111,111 dots/ sqm
2 Brightness >2500nits
3 Optimum View Distance >3 m
4 Gray Scale 16 bit
5 Display Color 281 trillions(synchronized)
No. Power Supply
1 Operation Power 110v~220v±10%
2 Max Power Consumption 800 w/ sqm
No. Control System
1 Control Mode Synchronized
2 Refresh Frequency >800HZ
3 Fram Frequency >60HZ
4 Control Distance UTP140m, Single Mode Fiber 15km
5 Brightness Adjustment 65536levels per color (autamatically)
No. Reliability
1 Operating Temperature -30℃ to 60℃
2 Operating Humidity 10%~90%
3 Life Span (50% Brightness) >100,000hrs
4 MTBF >10,000hrs
5 IP (Front/Rear) IP43
6 Out of Control Pixel Rate <0.0001











led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display





led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display









led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display

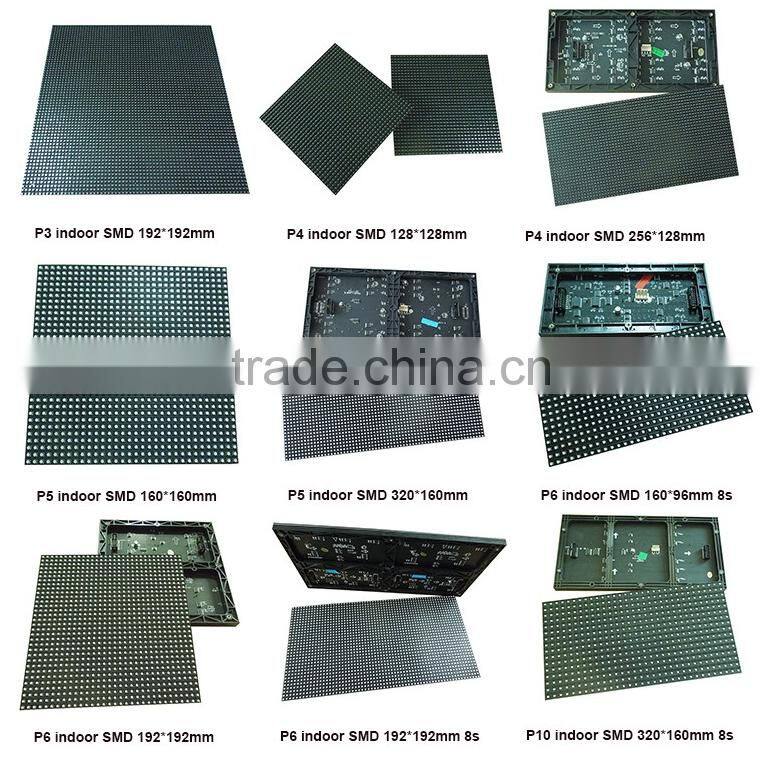

       are you also looking for cheap price module..??

                                                                                 you have many chose



led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display





led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display

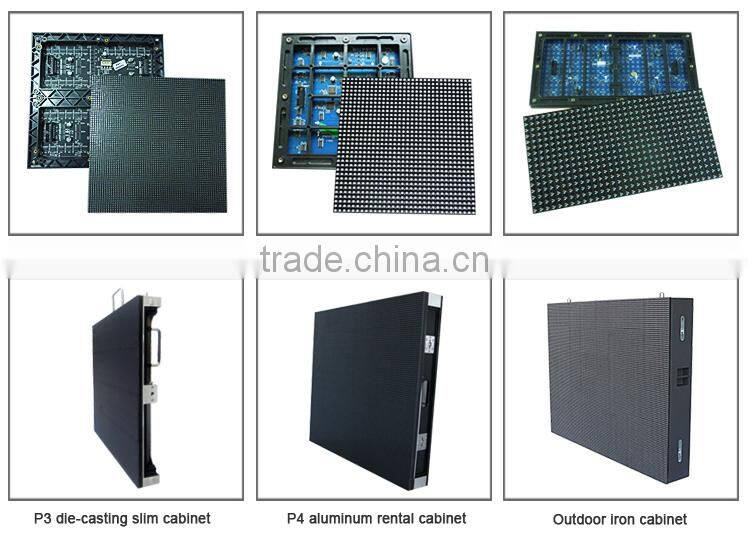

                                                                             Many cabinet chose





led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led displayled display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display

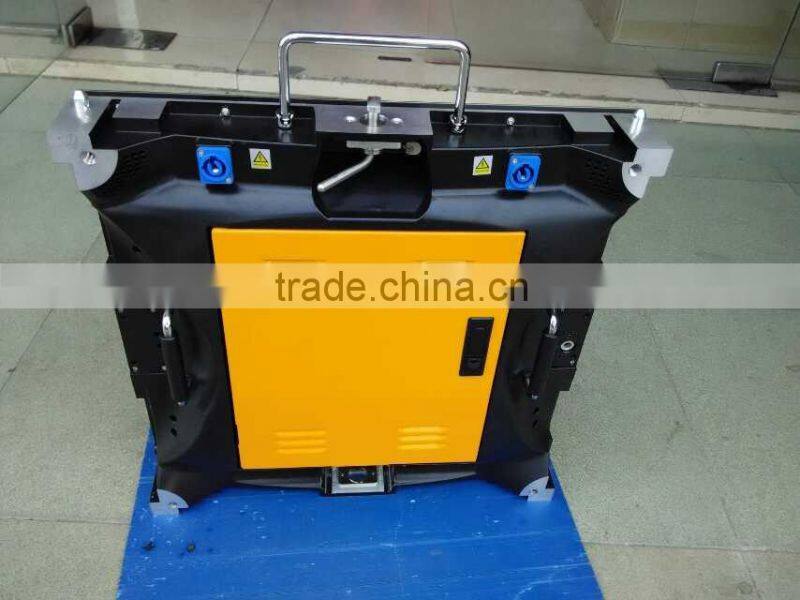

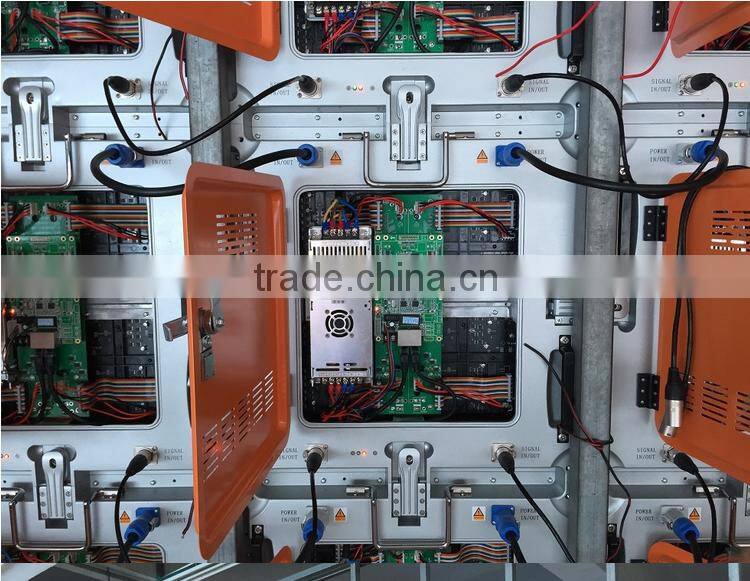

                                                                                              full cabinet assambling





 led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display





 led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display





 led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display



 led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display





 led display screen //// led display boards/// led display panel/// indoor led display screen// RGB video wall led display
