Tiny Electromagnetic Vibrating Feeder for Batching

Specifications

Application

 Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. Vibrating feeders are widely used in mining, building-material, silicate andchemical industry in the crushing and screening plants.In the Sand-Stone production line, vibrating feeder can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly.Vibrating feeder can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.

Features

1. Stable and long span life.

2. Easy to adjust.

3. Reliable operation.

4. Easy maintenance.

5. No pollution.

Working Principle

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gearsare jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to producea linear huge power which forces the feeder to vibrate. Through the vibration,the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the furthercrushing, so screening purpose can be reached.

Specification

Model	GZV1	GZV2	GZV3	GZV4	GZV5	GZV6
Capacity(t/h)	0.1	0.5	1	2	4	6
Double Amplitude(mm)	1.5	1.5	1.5	1.5	1.5	1.5
Frequency(r/m)	3000	3000	3000	3000	3000	3000
Voltage(V)	220	220	220	220	220	220
Power(W)	5	8	20	25	30	50
Weight(kg)	4	7	12	18	27	45

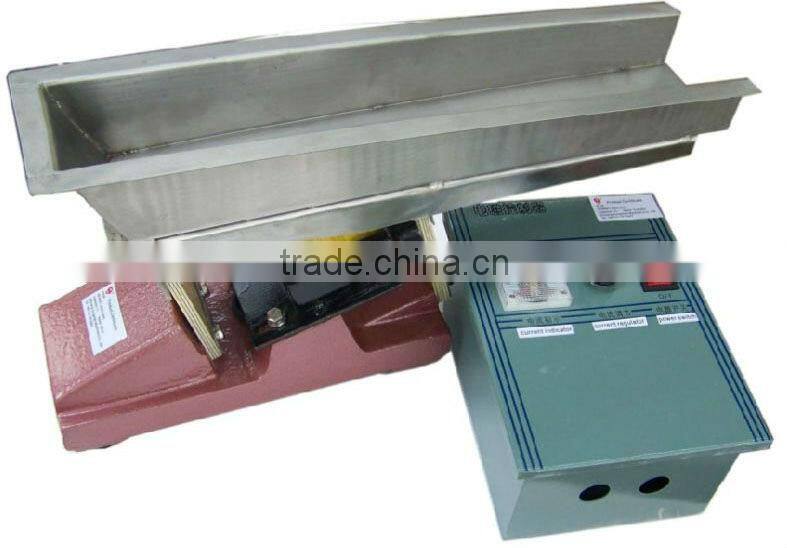

Machine Picture

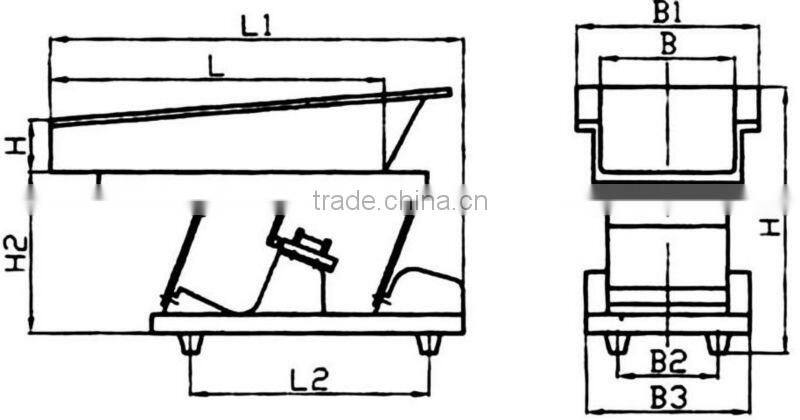

Machine Structure
