Screw Conveyor for Powder Packaging
- Qingdao China
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Screw Conveyor | |
| Material | Stainless Steel | Material Feature | Heat Resistant | |
| Structure | Conveyor System | Place of Origin | Henan, China | |
| Brand Name | CW | Voltage | as per order | |
| Power(W) | variable | Dimension(L*W*H) | variable | |
| Certification | CE | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
1. Fully dust seal, low noise,easy maintenance2. Flexible arrangement of inlet and outlet
3. Equiped with cleaning device
Introduction
Screw convey is widely used to convey material during production/packing process etc.
The bicephalous bearing of screw conveyor has been installed outside the shell. The hanger bearing is a rolling and sheave interconverted structure with a dust-proof sealed appliance, the sealed material is nylon plastic which can give a better seal effect and enduring performance.
Cleaning device is installed besides the discharge end.
Low noise, easily handle and maintenance, flexibility working place.
Application
Screw conveyor is widely used in many industries to convey powder, granule, patch scattered material, such as plastic, abradant material, chemical, pharmacy, building materials, food, carbon, fertilizer etc.
Features
The temparature must be less than 200°C. Can not handle material that are easily dazed, viscosity and easily lump.
Working temparature:-20°C~50°C
Working inclination angle:≤30 °C
Technical parameter
| Model | 100 | 160 | 200 | 250 | 315 | 100 | 500 | 630 | 800 | 1000 | 1250 |
| Spiral diameter(mm) | 100 | 160 | 200 | 250 | 315 | 100 | 500 | 630 | 800 | 1000 | 1250 |
| Screw pitch(mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Speed(r/min) | 140 | 112 | 100 | 90 | 80 | 71 | 63 | 50 | 40 | 32 | 25 |
| Capacity(t/h) | 2.2 | 7 | 13 | 22 | 31 | 62 | 98 | 140 | 200 | 280 | 380 |
| Speed(r/min) | 112 | 90 | 80 | 71 | 63 | 56 | 50 | 40 | 32 | 25 | 20 |

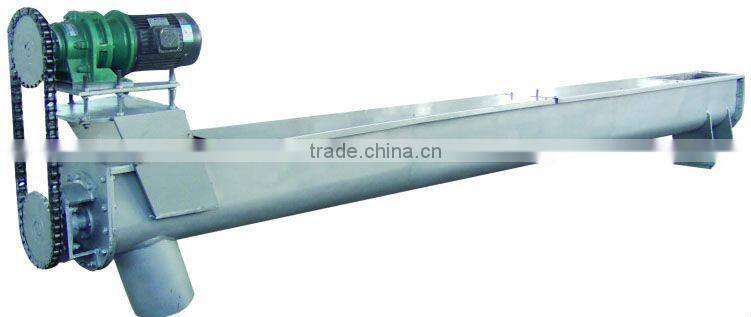

Machine Picture
