Specifications
1. Fully sealed structre is optional.2. Simple structure, easy to maintain and clean.
3. Low power consumption, low noise.
Introduction:
CEC Series Vertical Vibrating Conveyor is widely applied in chemical, rubber, plastic, grain, pharmacy, metallurgy, building material, mine and other industries.
With two vibration motors mounted on the bottom or top of the machine body crisscross, this make the materials move vertically and the materials are discharged from the top outlet of the machine.
Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase ec.
Spare parts for free within 12 months warranty period. Our engineers and sales also provide online realtime supports through Skype, MSN etc.
Featues:
- Simple structure, easy to install, maintain and clean.
- Low power consumption, low noise.
- Fully sealed structure is available to ensure the health requirement.
Applications:
- Chemical, rubber, plastic, grain, pharmacy, metallurgy, building material, mine and other industries for various owder, Block and Short Fibre Solid Materials.
Specifications:
| Model |
Frame Diameter (mm) |
Lifting Height (m) |
Motor Speed (r/m) |
Double Amplitude (mm) |
Power (kw) |
| CWC300 | 300 | up to 4.0 | 960 | 6-8 | 2*0.4 |
| CWC500 | 500 | up to 6.0 | 960 | 6-8 | 2*0.75 |
| CWC600 | 600 | up to 8.0 | 960 | 6-8 | 2*1.5 |
| CWC800 | 800 | up to 8.0 | 960 | 6-8 | 2*2.2 |
| CWC900 | 900 | up to 8.0 | 960 | 6-8 | 2*3.0 |
| CWC1200 | 1200 | up to 8.0 | 960 | 6-8 | 2*4.5 |
| CWC1500 | 1500 | up to 8.0 | 960 | 6-8 | 2*5.5 |
| CWC1800 | 1800 | up to 8.0 | 960 | 6-8 | 2*6.5 |

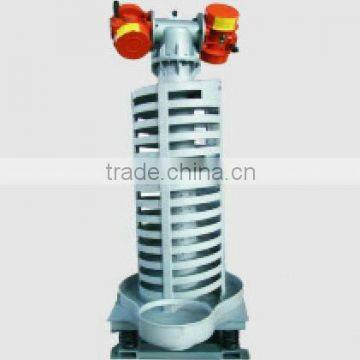

Pictures Show:
