Company Description:
Xinxiang Chenwei Machinery Co., Ltd is a manufacturer of vibrating screens, centrifugal sifters, tumbler screens, gyratory screens and aluminum foil tape with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in mining, pharmacy, food, chemical, metal powder and other industries
Introduction
Screw convey is widely used to convey material during production/packing process etc.
The bicephalous bearing of screw conveyor has been installed outside the shell. The hanger bearing is a rolling and sheave interconverted structure with a dust-proof sealed appliance, the sealed material is nylon plastic which can give a better seal effect and enduring performance.
Cleaning device is installed besides the discharge end.
Low noise, easily handle and maintenance, flexibility working place.
Application
Screw conveyor is widely used in many industries to convey powder, granule, patch scattered material, such as plastic, abradant material, chemical, pharmacy, building materials, food, carbon, fertilizer etc.
Features
The temparature must be less than 200°C. Can not handle material that are easily dazed, viscosity and easily lump.
Working temparature:-20°C~50°C
Working inclination angle:≤30 °C
Technical parameter
| Model | 100 | 160 | 200 | 250 | 315 | 100 | 500 | 630 | 800 | 1000 | 1250 |
| Spiral diameter(mm) | 100 | 160 | 200 | 250 | 315 | 100 | 500 | 630 | 800 | 1000 | 1250 |
| Screw pitch(mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Speed(r/min) | 140 | 112 | 100 | 90 | 80 | 71 | 63 | 50 | 40 | 32 | 25 |
| Capacity(t/h) | 2.2 | 7 | 13 | 22 | 31 | 62 | 98 | 140 | 200 | 280 | 380 |
| Speed(r/min) | 112 | 90 | 80 | 71 | 63 | 56 | 50 | 40 | 32 | 25 | 20 |

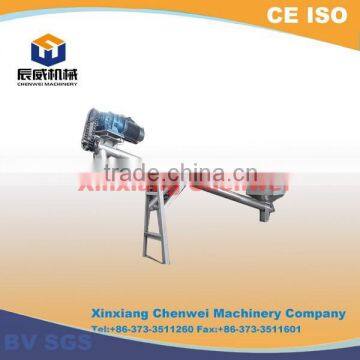

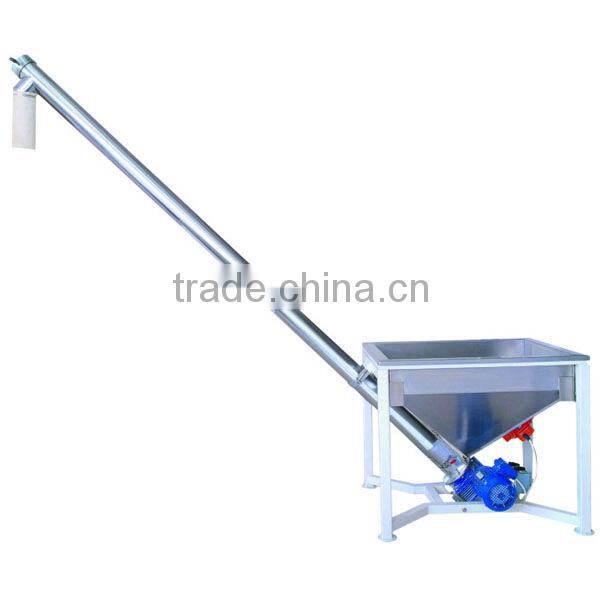

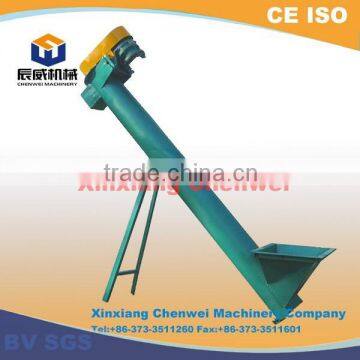

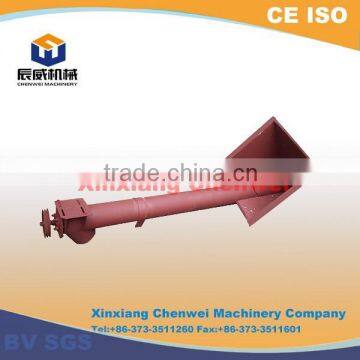

Machine Picture

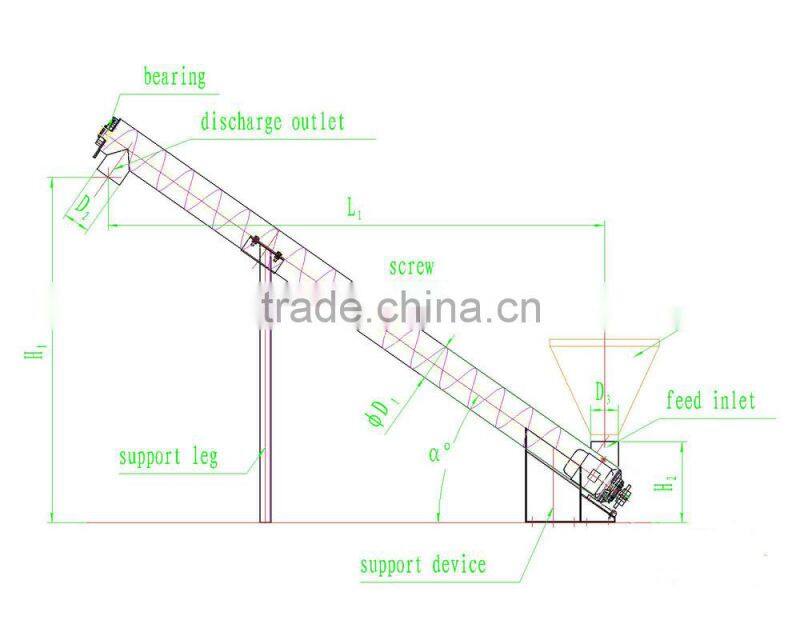

Machine Structure
FAQ:
Q:What factors I need to get a quotation?
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q: Do you accept special orders?
A: Special order is also available because we have our own factory ,which is a leading manufacturer in this area with 30 years’experience.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DZJX for most of our customers at home or abroad. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
Quotation of vibrating equipments in other type is also available, please feel free to contact us if you have any request.
