Rotary Vibrating Screen for Chemical Industries Quality Choice

Specifications

1. Compact construction, easy to install and maintain.
2. Fully sealed, no dust spillover.
3. Easy to change the sieve.

Introduction:

S49 Series Rotary Vibration Screen can realize various materials screening for most industries including food industries, feed industries, chemical industries, metal industries, metallurgy and mining industries, grinding materials industries, paper-making industries, ceramic industries, pharmaceutical industies etc.



8 different models are available for different materials and processing capacities, S49 Series Rotary Vibration Screen can continuously and efficiently running to screening 3-600 mesh materials. Stainless Steel and Carbon are available for the machines according to customers' requirements.



Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase ec.



Spare parts for free within 12 months warranty period. Our engineers and sales also provide online realtime supports through Skype, MSN etc.





Working Principle:

A vibrating motor with variable eccentric weights mounted on each sides of the motor shaft. The vibrating motor provide horizontal, vertical and slant exciting force. To controll the horizontal, vertical movement of the machine, the speed, moving track of the materials on the sieve by adjusting the angle of the two eccentric weights.





Features:

- High screening efficiency, screening precision is more that 90%.

- Compact construction, light weight, easy to install and maintain.

- The direction of the outlet ports can be adjusted by 360 degree.

- Simple construction, easy to change the sieve.

- Fully sealed, no dust spillover.

- Suitable for screening dry and wet materials.





Detailed Applications:

- Food Industries: sugar powder, monosodium, salt, starch, spices, seasonings, milk powder,egg powder, rice flour, wheat flour, bread crumbs, beans powder, sauce, fruit juice, food additives, animal feed etc.

- Chemical Industries: fertilizer, detergent powder, talcum powder, dyestuff, rubber, resin, pigment, cosmetic, coatings, PVC powder, CPE powder etc.

- Grinding Material and Ceramic Industries: alumina, quartz, slurry, kaoline, carborundum, sprayer dust etc.

- Metal, Metallurgy and Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate etc.

- Paper-Making Industry: dope, white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling etc.





Specifications:

Size Code	Diameter (mm)	Mesh Area per deck (m2)	Number of Decks	Power (KW)	Maximum size to process(mm)
S494-B	430	0.13	1-5	0.25	20
S496-B	610	0.16	1-5	0.5	20
S498-B	760	0.44	1-5	0.75	30
S4910-B	910	0.63	1-5	0.8	30
S4912-B	1120	1.03	1-5	1.5	30
S4915-B	1460	1.65	1-5	2.2	50
S4918-B	1728	2.4	1-5	2.5	50
S4920-B	1910	2.98	1-5	2.5	60

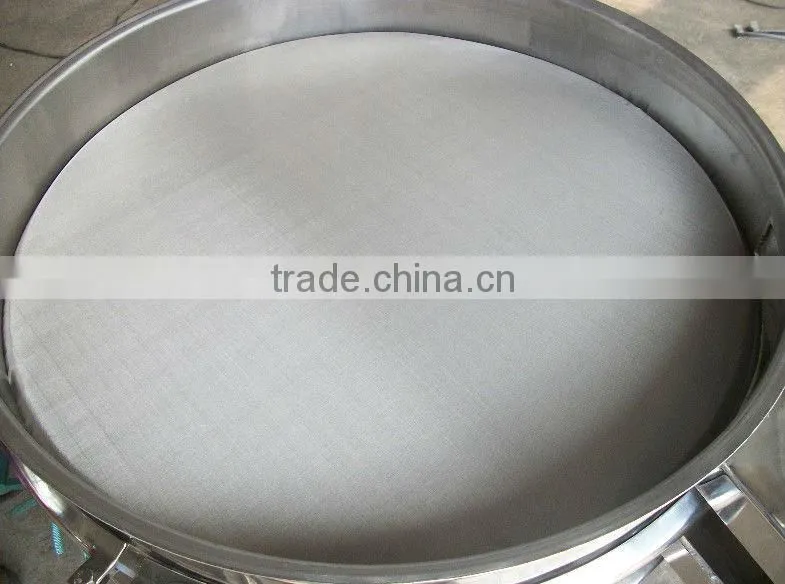

Pictures Show:
