Help CenterLinear Vibration Sieve for Grinding Materials
Related Products
-
Vibrating Filter for Powder and Pasty MaterialsUS$ 666 - 999MOQ: 1 Set -
Ultrasonic Vibration Screen for Fine Powder MaterialsUS$ 999 - 3,999MOQ: 1 Set
-
Ultrasonic Vibrating Sieve for Fine PowderUS$ 800 - 3,800MOQ: 1 Set
-
Vibrating Filtrating Machine for Powder and Pasty MaterialsUS$ 666 - 999MOQ: 1 Set
-
Rotary Vibrating Sieve for FertilizerUS$ 900 - 6,000MOQ: 1 Set
Specifications
1. Multi layers structure is optional for multi grades screening.2. Fully sealed structure is optional, no dust spillover.
Introduction:
CWZS Series Linear Vibrating Screen is a kindly of stadard and universal screening machine. It consists of screen frame(screen box), supporting or hanging device, driving device, vibration isloation and other parts.
With two vibrating motors mounted on both sides of the machine body, or mounted on the bottom base of the machine body, this make the materials running a straight trace on the sieve to finish the screening work.
Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase ec.
Spare parts for free within 12 months warranty period. Our engineers and sales also provide online realtime supports through Skype, MSN etc.
Features:
- Multi layers structure is optional for multi grades screening.
- Fully sealed structure is optional, no dust spillover.
- Low energy consumption, high efficiency.
- Simple structre, easy to maintain.
Detailed Applications:
- Food Industries: sugar powder, monosodium, salt, starch, spices, seasonings, bread crumbs, beans powder, animal feed etc.
- Chemical Industries: fertilizer, detergent powder, talcum powder, dyestuff, rubber, resin, pigment, cosmetic, coatings, PVC powder, CPE powder etc.
- Grinding Material and Ceramic Industries: alumina, quartz, slurry, carborundum etc.
- Metal, Metallurgy and Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate etc.
Specifications:
Model |
CWZS-520 |
CWZS-840 |
CWZS-1030 |
CWZS-1255 |
CWZS-1650 |
Dimension (mm) |
500*2000 |
800*4000 |
1000*3000 |
1200*5500 |
1600*5000 |
Granularity (mm) |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
Speed (r/min) |
960 |
960 |
960 |
960 |
960 |
Amplitude (mm) |
4-8 |
4-8 |
4-8 |
4-8 |
4-8 |
Layer |
1-4 |
1-4 |
1-4 |
1-4 |
1-4 |
Power (kw) |
2×0.75 |
2×1.5 |
2×1.9 |
2×2.2 |
2×3.0 |

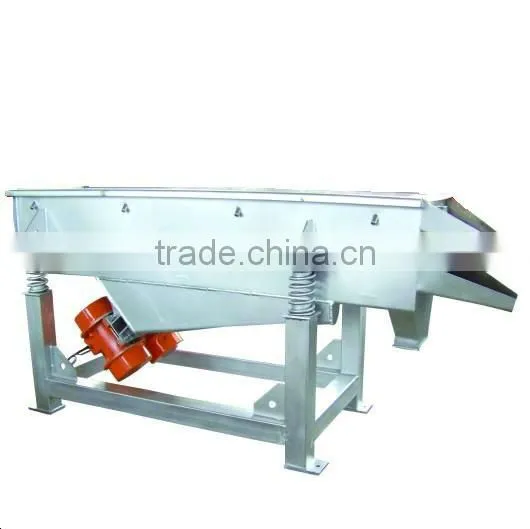

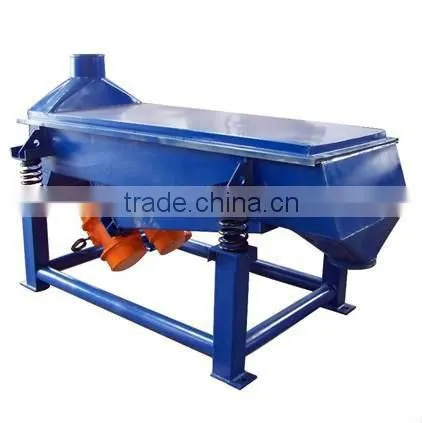

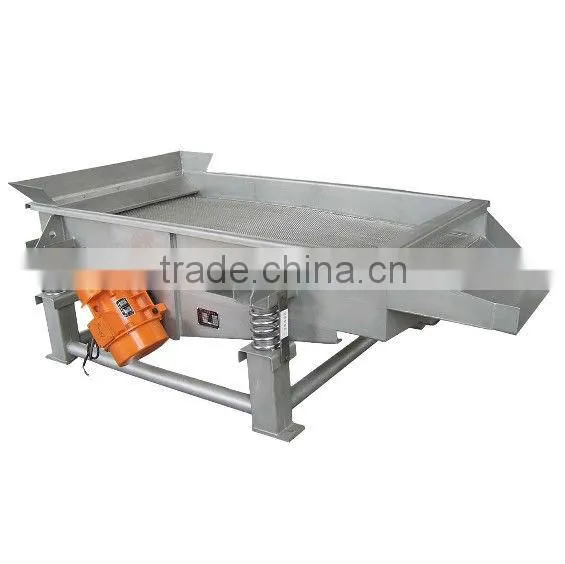

Pictures Show:
