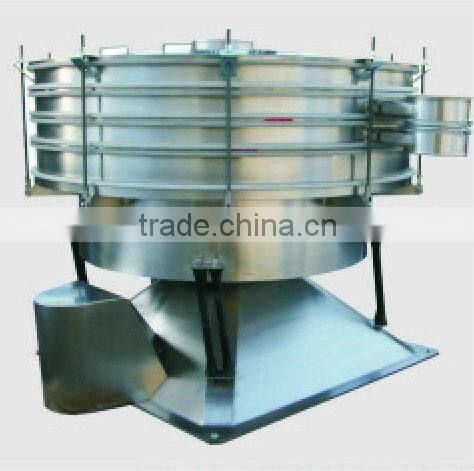

Tumbler Screen for Fertilizer

Specifications

1. High screening efficiency from 90% to 95%.
2. Fully sealed, no dust spillover.
3. Low noise, lower than 75 dB.

Introduction:

CWYS Series Tumbler Screen is an efficient screening machine which can realize large-tonnage, high-density sieving screening. The movement of the machine is similar to hand screening. Fully sealed structure, no dust spillover, safe to operate. The acceleration speed is 4.5 times lower than the vibrating screen, this ensure longer service life of the spare parts and less maintainence.



CWYS Seres Tumbler Screen is suitable for all the fine and ultra-fine powder and granular materials, especially for materials which are very difficult to sieve. Up to 5 times output per unit area, accurate to 6 levels separation, screening efficiency is up to 90% - 95%. Silicone rubber balls, ultrasonic device are available to prevent blocking of the mesh hole.



Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase ec.



Spare parts for free within 12 months warranty period. Our engineers and sales also provide online realtime supports through Skype, MSN etc.





Working Principle:

The rotary motion is similar to hand screening, the eccentricity is adjustable from 25 to 40mm, low-speed V-belt is adjustable from 120 to360rpm.



The staying time on the sieve of each material is adjustable by adjusting the radial and tangential angle towards to the drive axis.



The horizontal and throwing three-dimensional rolling movement make the material disperse evenly onthe sieve surface from the center to the outer edge, and thus spread towards to the axis by sprial movement. Then the small particles are sieved from the sieve.





Features:

- Low frequency, little damage to the swing screen and the material.

- Low power consumption, low noise.

- High output, high screening efficiency up to 95%.

- Fully sealed, no dust spilover.

- The direction of the outlet ports can be adjusted by 360 degree

- Easy to change the sieve, suitable for classifying both wet and dry materials.





Detailed Applications:

- Food Industries: sugar powder, monosodium, salt, starch, spices, seasonings, milk powder,egg powder, rice flour, wheat flour, bread crumbs, beans powder, sauce, fruit juice, food additives, animal feed etc.

- Chemical Industries: fertilizer, detergent powder, talcum powder, dyestuff, rubber, resin, pigment, cosmetic, coatings, PVC powder, CPE powder etc.

- Grinding Material and Ceramic Industries: alumina, quartz, slurry, kaoline, carborundum, sprayer dust etc.

- Metal, Metallurgy and Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate etc.

- Paper-Making Industry: dope, white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling etc.





Specifications:

	availability of screening area	screen slope°	particle diameter (mm)	Vibration frequencyr/min	Double amplitudemm	powerkW	outputt/h
CWYS-60	0.23	0-10	≤100	750 960 1500	5-8	2×0.75	6-10
-100	0.70				5-8	2×0.75	8-15
CWYS-150	1.62				5-8	2×1.1	15-30
CWYS-180	2.32				5-8	2×1.1	25-50
CWYS-220	3.83				5-8	2×2.2	30-60
CWYS-250	4.61				5-8	2×2.2	45-60

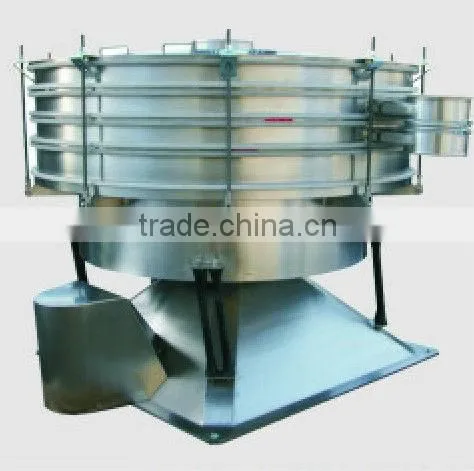

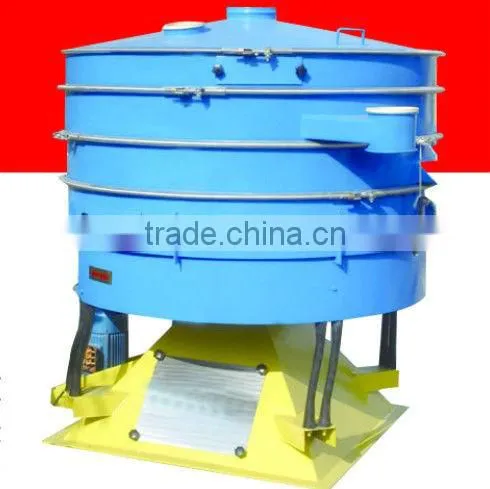

Pictures Show:
