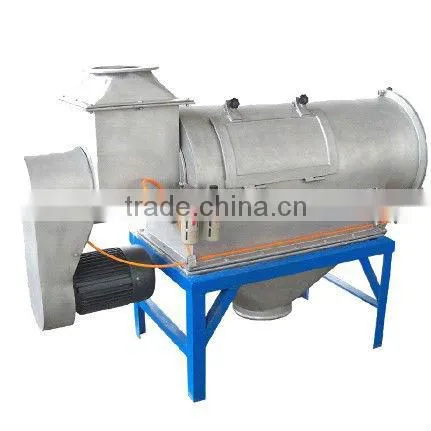

Airflow Sieve for Spices

Specifications

1. Material: stainless steel or carbon steel.
2. Application: spices, seasoning, starch, flour etc.
3. Low noise.

Introduction:

BL Series Airflow Sieve adopts cylinder screen, installed inside the machine body. The material is transferred by screw conveyor, and then mixed with the airflow, atomized and enter into the cylinder screen. The small particles are sprayed through the screen and then discharged from the outlet port by centrifugal force and whirlwind propulsion force of the rotor vane inside the screen. The large particles are discharged from the other outlet port.



BL Series Airflow Sieve is specially suitable for fine, ultra fine materials such as spices, seasonings, flour, starch etc.



Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase ec.



Spare parts for free within 12 months warranty period. Our engineers and sales also provide online realtime supports through Skype, MSN etc.





Features:

- Stable performance, no vibration, low nosie.

- Well sealed, no dust spillover.

- Hygienic design sifting screen.

- No tools required for screen, paddle and screw removal.

- Fully rotatable screen for in-situ inspection.

- Different screens are available: nylon, woven wire and wedge wire.





Detailed Applications:

- Food Industries: starch, spices, seasonings, milk powder,egg powder, rice flour, wheat flour, beans powder, food additives etc.

- Chemical Industries: fertilizer, detergent powder, talcum powder, dyestuff, rubber, resin, pigment, cosmetic, coatings, PVC powder, CPE powder etc.





Specifications:

Model	Material	Screen cage sizemm (diameter*length)	Screen material
BL 30-100	Q235A Carbon steel	300mm*1000mm	Stainless steel or Nylon screen
	SUS Stainless steel	300mm*1000mm
BL 50-130	Q235A Carbon steel	500mm*1300mm
	SUS Stainless steel	500mm*1300mm
BL 65-180	Q235A Carbon steel	650mm*1800mm
	SUS Stainless steel	650mm*1800mm

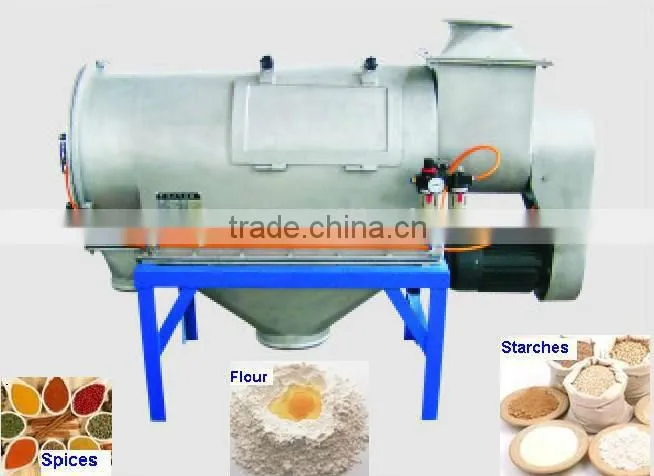

Pictures Show:
