Home > Consumer Electronics > Display & Accessories > LCD Module > TF17714A 1.77 Inch TFT LCD Display Without Touch Panel Quality Choice

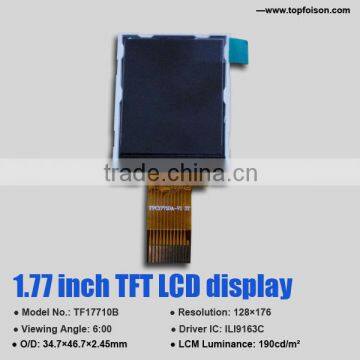

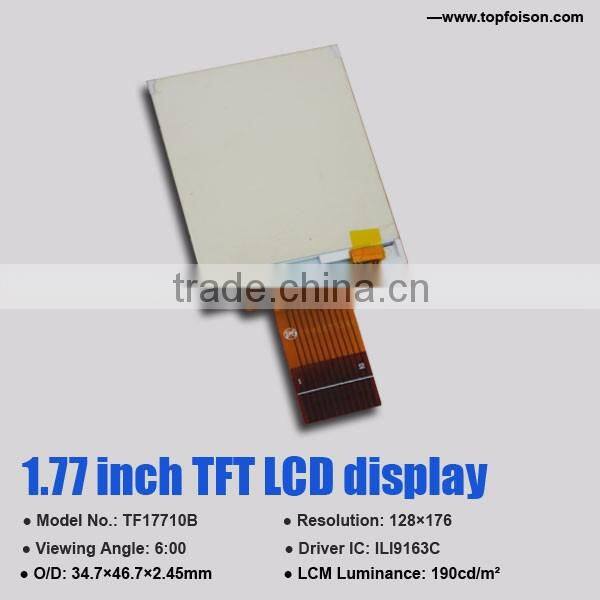

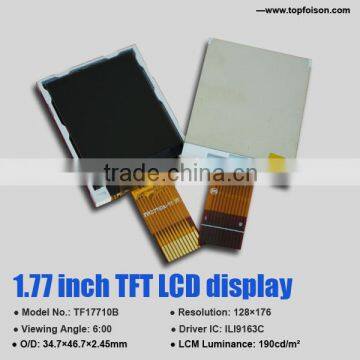

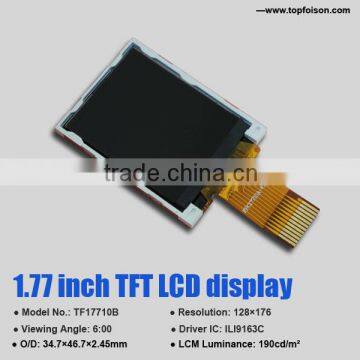

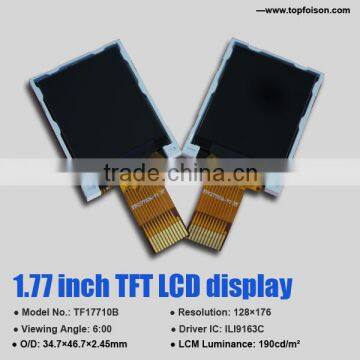

TF17714A 1.77 Inch TFT LCD Display Without Touch Panel Quality Choice
US$ 1.95 - 2.05
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Topfoison
Model Number:
TF17714A
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.6 Inch Sunlight Readable Tft Lcd Screen Transflective LCD for Mobile Device-TF16001AUS$ 10 - 15MOQ: 1 Piece -
1.22inch Tft Replacement Tft Screen Lcd Display TF12210A for Mobile Phone ProductsUS$ 4.40 - 50.00MOQ: 1 Piece
-
2.8inch IPS Wide View High Resolution 240*320 Driver ILI9340LUS$ 5.00 - 20.00MOQ: 1 Piece
-
1024*105 9.1inch Bar Lcd Display Special Size TFT LCD ModuleUS$ 29 - 100MOQ: 1 Piece
-
2.8inch TFT LCD IPS Display With QVGA for POSUS$ 6 - 20MOQ: 1 Piece
Place of Origin
China
Brand Name
Topfoison
Model Number
TF17714A
Type
TFT
Product Attribute
| Item: | 1.77 inch Touch TFT LCD screen (128*160) with touch panel-TF17714A |
| Resolution: | 128*160 |
| Inserting Mode: | Plug-in Type |
| Viewing Angle: | 12 o’clock |
| Interface: | 4 line Bit compatible 8080 I/F |
| Outline Dimension: | 34.7mm(W)×46.7mm(H)×2.45mm(D)(Typ) |
| Active Area: | LCD--- 28.03mm(W) ×35.04mm(H) |
| Driver IC: | ILI9163V |
| PIN Nos.: | 12 |
| LED Connect Mode: | 2 LEDs in parallel |
| Operating Voltage | -0.3~4.6V |
| Operating temperature | -20~70°C |
| Storage temperature | -30~80°C |
| Backlight Luminance: | -- |
| LCM Luminance: | 100 CD/M2 |
| LCM Brightness Uniformity | -- |
About Company
Product display
Product display
Product introduction
| (1)Product Range | |||
| TFT LCD display | Resistive Touch Panel | Plastic Mould | Solution Help |
| TN/STN/FSTN/OLED | Capacitive Touch Panel | Electronic Component | |
(2)Main Size of TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*128 |
| 1.77" | 128*160 |
| 2.0" | 176*220 |
| 2.4" | 240*320 |
| 2.8" | 240*320 240*400 |
| 3.0" | 240*400 |
| 3.5" | 320*240 320*480 |
| 4.3" | 480*272 |
| 5.0" | 800*480 |
| 7.0" | 800*480 |
| 9.7" | 1024*768 |
(3)Customization Items for TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*160 |
| 1.5" | 128*128 round type |
| 2.0" | 220*176,240*320,320*240 |
| 2.2" | 176*220,220*176,240*320,320*240 |
| 2.4" | 320*240 |
| 2.6" | 240*320,320*240,240*400 |
| 2.8" | 240*320,320*240,240*400 |
| 3.0" | 240*320 |
| 3.2" | 240*320,240*400,320*480,480*800 IPS full angle |
| 3.5" | 480*800,480*320,320*480 full angle |
| 4.3" | 480*272 high luminance |
| 5.0" | 800*480 high luminance |
Main application
Product | Applications |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
About Company
Company Profile
Company Information
Company Objectives
| 1 | Provide high quality display for Western and North Asia's small and medium-sized company ! |
| 2 | To be the first-class TFT LCD manufacturer ! |
Packaging
Packing and shipping
| 1 | MOQ: | 1pcs |
| 2 | L/T: | Samples in stocks,2-4 weeks for mass production |
| 3 | Trade Terms : | EXW |
| 4 | Payment: | 100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
| 5 | Warranty: | 12 months |
| 6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
