Home > Consumer Electronics > Display & Accessories > LCD Module > 2.8inch TFT LCD IPS Display With QVGA for POS
2.8inch TFT LCD IPS Display With QVGA for POS
US$ 6 - 20
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Topfoison
Model Number:
TF28041A
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New 3.97inch TFT LCD Module Color TFT LCM and Wvga 480*800-TF39701AUS$ 6.8 - 20MOQ: 1 Piece -
1.44 Inch Useful 128*128 Tft Lcd Screen Display 128*128 Inch Tft ModuleUS$ 3.20 - 10.00MOQ: 1 Piece
-
1.44inch Replacement Tft Screen 1.44inch Small Size With Low PriceUS$ 3.20 - 10.00MOQ: 1 Piece
-
HD Driver 1.44inch Tft Lcd Screen 128*128 Tft Lcd With Touch PanelUS$ 3.20 - 10.00MOQ: 1 Piece
-
Tft Display 1.44inch 128*128 Tft Display 1.44inch Tft DisplayUS$ 3.20 - 10.00MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Topfoison
Model Number
TF28041A
Type
TFT
2.8inch TFT LCD IPS display with QVGA for POS

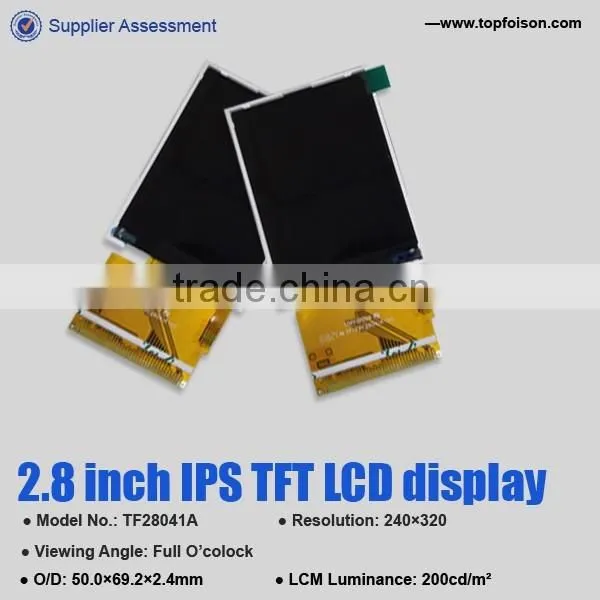

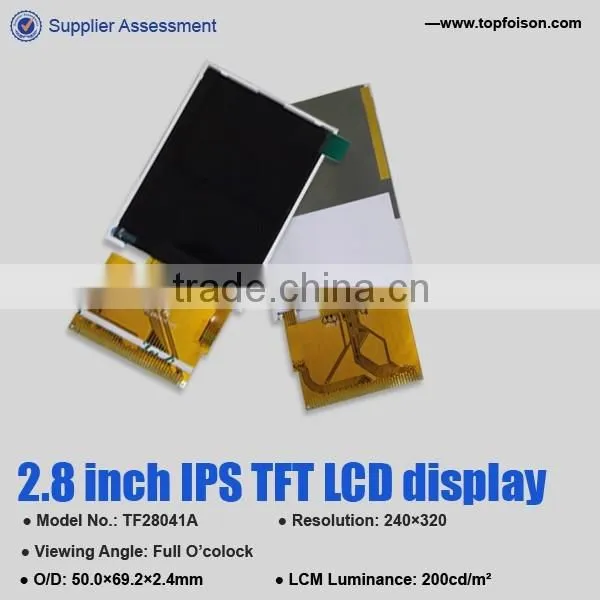

Product display
2.8inch TFT LCD IPS display with QVGA for POS
Product Description
| Item: | 2.8inch TFT LCD IPS display with QVGA for POS |
| Resolution: | 240*320 |
| Inserting Mode: | Welded Type |
| Viewing Angle: | Full O'clock |
| Interface: | 16 Bit compatible 8080 I/F |
| Outline Dimension: | 50.0mm(W)*69.2mm(H)*2.4mm(D) |
| Active Area: | LCD---43mm(W)*64.8mm(H) |
| TP--- | |
| Driver IC: | ILI9127 |
| PIN Nos.: | 37 |
| LED Connect Mode: | 4 LEDs in parellel |
| Operating Voltage | -0.3~4.6V |
| Operating temperature | -20~70°C |
| Storage temperature | -30~80°C |
| Backlight Luminance: | 4500 CD/M2 |
| LCM Luminance: | 200 CD/M2 |
| LCM brightness uniformity | 80 |
Contact Us
2.8inch TFT LCD IPS display with QVGA for POS
Company Information
Topfoison covers 6500 sq.m. production workshop area, including 4000 sq.m. dust-free clean workshop with more than 600 staffs working inside. Since the start, our company has focused on the TFT LCD’s R&D, manufacturing and selling. The 6 world-class automatic FOG, COG production lines ensure the daily capacity of 100,000 pcs. We also have our own professional R&D groups specialized in a wide range fromTN/STN/FSTN/OLED/Capacitive touch panel&Resistive touch panel/Plastic moulding customization.

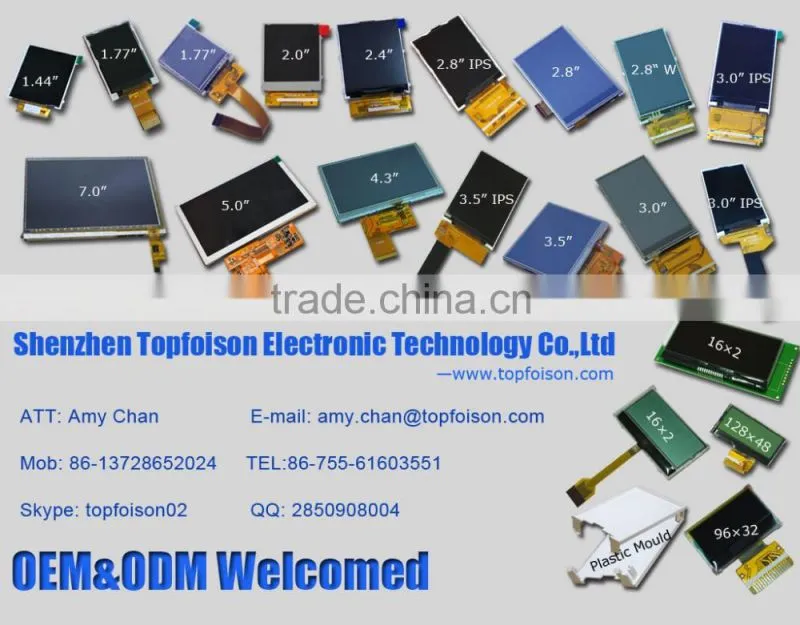

Product Introduction
| (1)Product Range | |||
| TFT LCD display | Resistive Touch Panel | Plastic Mould | Solution Help |
| TN/STN/FSTN/OLED | Capacitive Touch Panel | Electronic Component | |
|
(2)Main Size of TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*128 |
| 1.77" | 128*160 |
| 2.0" | 176*220 |
| 2.4" | 240*320 |
| 2.8" | 240*320 240*400 |
| 3.0" | 240*400 |
| 3.5" | 320*240 320*480 |
| 4.3" | 480*272 |
| 5.0" | 800*480 |
| 7.0" | 800*480 |
| 9.7" | 1024*768 |
(3)Customization Items for TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*160 |
| 1.5" | 128*128 round type |
| 2.0" | 220*176,240*320,320*240 |
| 2.2" | 176*220,220*176,240*320,320*240 |
| 2.4" | 320*240 |
| 2.6" | 240*320,320*240,240*400 |
| 2.8" | 240*320,320*240,240*400 |
| 3.0" | 240*320 |
| 3.2" | 240*320,240*400,320*480,480*800 IPS full angle |
| 3.5" | 480*800,480*320,320*480 full angle |
| 4.3" | 480*272 high luminance |
| 5.0" | 800*480 high luminance |
Main Application
Product |
Applications |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
Packaging & Shipping
| 1 | MOQ: | 1pcs |
| 2 | L/T: | Samples in stocks,2-4 weeks for mass production |
| 3 | Trade Terms : | EXW |
| 4 | Payment: |
100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
| 5 | Warranty: | 12 months |
| 6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
