1.22inch Tft Replacement Tft Screen Lcd Display TF12210A for Mobile Phone Products
- EXW
- T/T L/C D/P D/A Credit Card
You May Like
-
2.8inch IPS Wide View High Resolution 240*320 Driver ILI9340L
-
1024*105 9.1inch Bar Lcd Display Special Size TFT LCD Module
-
2.8inch TFT LCD IPS Display With QVGA for POS
-
New 3.97inch TFT LCD Module Color TFT LCM and Wvga 480*800-TF39701A
-
1.44 Inch Useful 128*128 Tft Lcd Screen Display 128*128 Inch Tft Module
-
1.44inch Replacement Tft Screen 1.44inch Small Size With Low Price
Product Details
Place of Origin | Guangdong, China | Brand Name | Topfoison | |
Model Number | TF12210A | Type | TFT |
Product Description

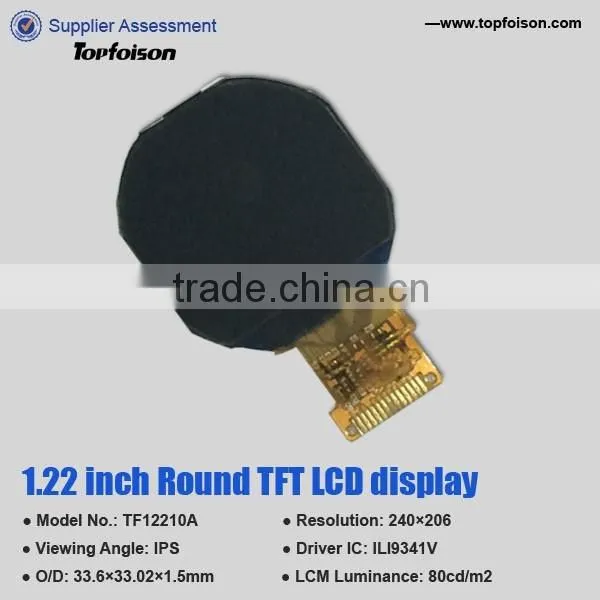

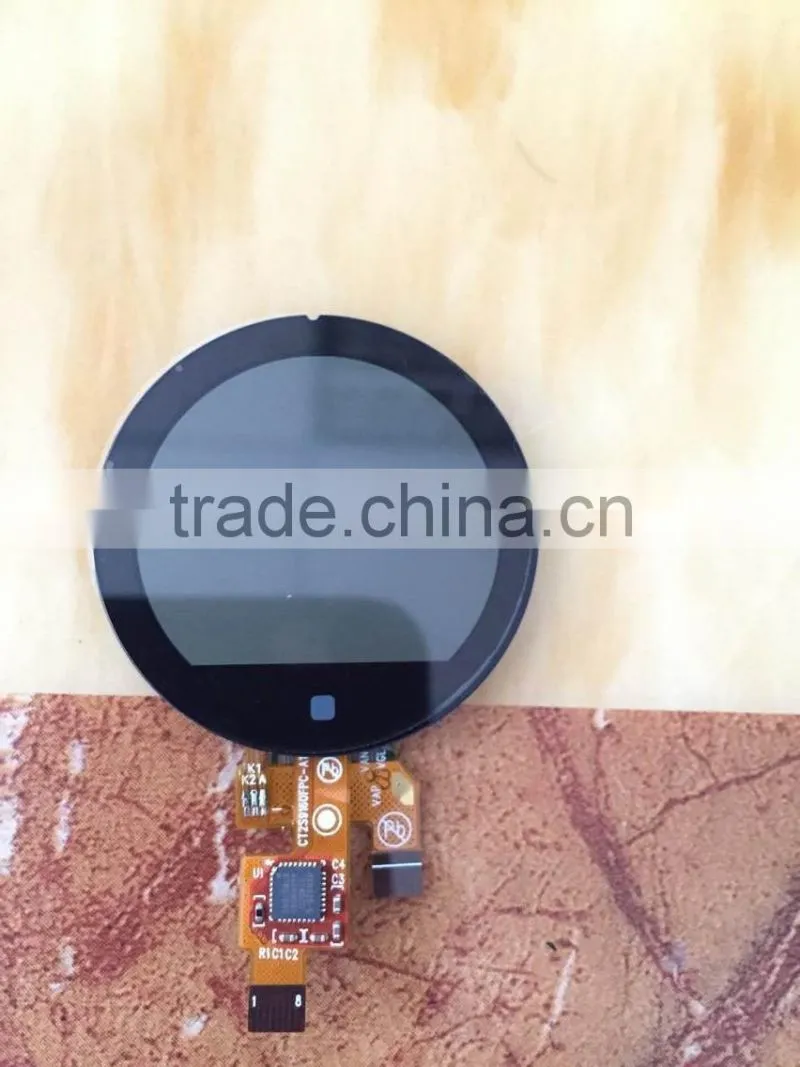

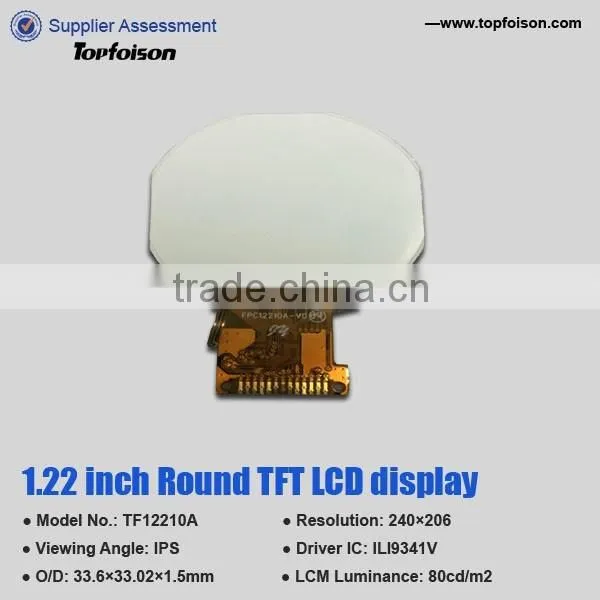

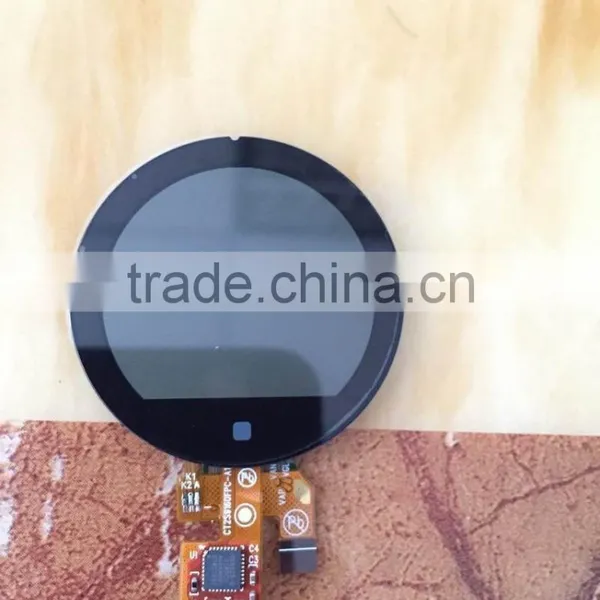

1.22inch tft replacement tft screen lcd display TF12210A for mobile phone products
1.22inch tft replacement tft screen lcd display TF12210A for mobile phone products
Item: | 1.22inch tft replacement tft screen lcd display TF12210A for mobile phone products |
Resolution: | 240*204 |
Inserting Mode: | Plug-in Type |
Viewing Angle: | Full ' clock |
Interface: | SPI 4W compatible 8080 I/F |

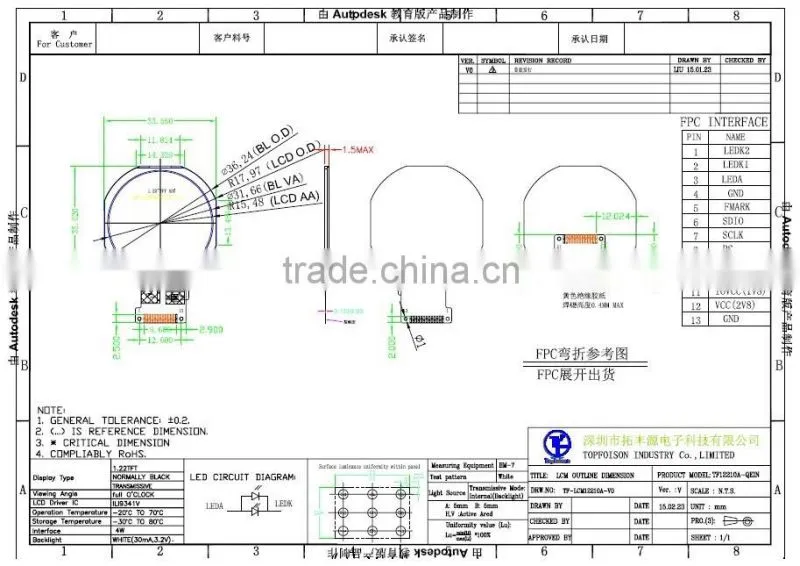

Outline Dimension: | 33.66mm(W)*33.02mm(H)*1.5mm(D)(Typ) |
Active Area: | LCD--- 30.96mm(W)*26.316mm(H) |
TP-------------(W)*-------- (H) | |
Driver IC: | ILI9341V |
PIN Nos.: | 13 |
LED Connect Mode: | 2 LEDs in series and parallel |
Operating Voltage | -0.3~4.6V |
Operating temperature | -20~70°C |
Storage temperature | -30~80°C |
Backlight Luminance: | 3000cd/m2 |
LCM Luminance: | 120 cd/m2 |
LCM Brightness Uniformity | 80 |
1.22inch tft replacement tft screen lcd display TF12210A for mobile phone products

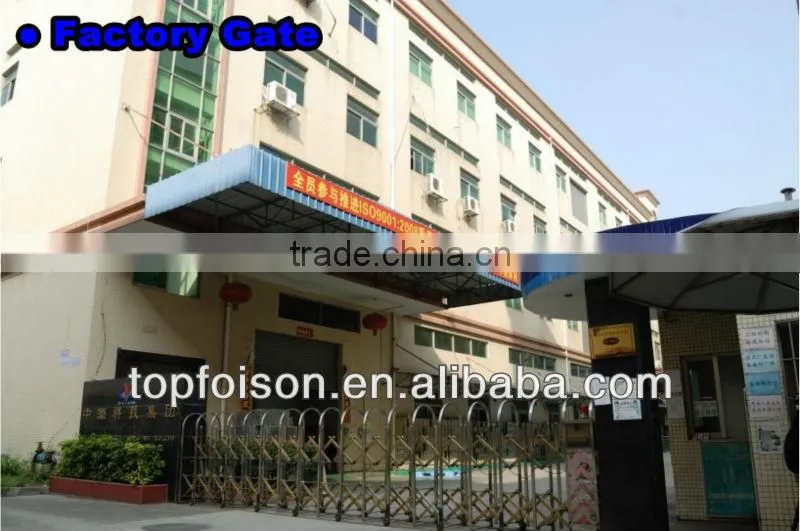

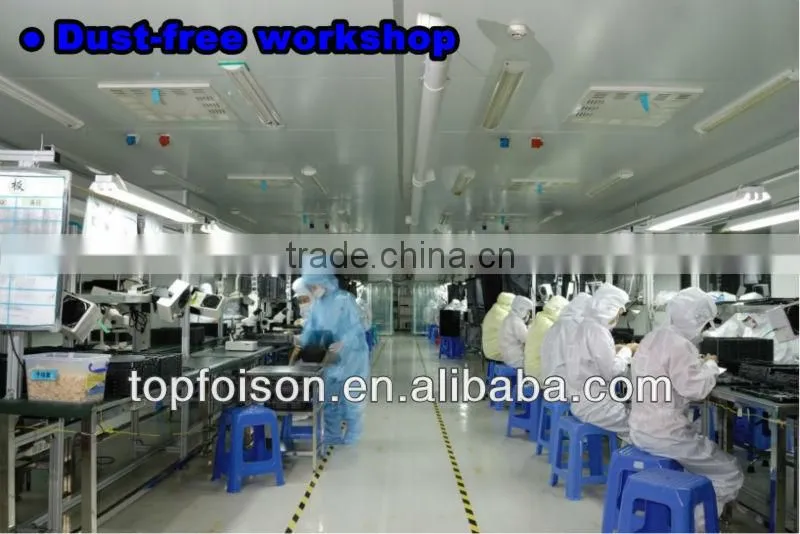

Topfoison covers 6500 sq.m. production workshop area, including 4000 sq.m. dust-free clean workshop with more than 600 staffs working inside. Since the start, our company focus on TFT LCD’s R&D, manufacturing and selling. The 6 world-class automatic FOG, COG production lines ensure the daily capacity of 100,000 pcs. We also have our own professional R&D groups specialized in a wide range fromTN/STN/FSTN/OLED/Capacitive touch panel&Resistive touch panel/Plastic moulding customization.
(1)Product Range | |||
TFT LCD display | Resistive Touch Panel | Plastic Mould | Solution Help |
TN/STN/FSTN/OLED | Capacitive Touch Panel | Electronic Component |
(2)Main Size of TFT LCD Display | |
Size | Resolution |
1.44" | 128*128 |
1.77" | 128*160 |
2.0" | 176*220 |
2.4" | 240*320 |
2.8" | 240*320 240*400 |
3.0" | 240*400 |
3.5" | 320*240 320*480 |
4.3" | 480*272 |
5.0" | 800*480 |
7.0" | 800*480 |
9.7" | 1024*768 |
(3)Customization Items for TFT LCD Display | |
Size | Resolution |
1.44" | 128*160 |
1.5" | 128*128 round type |
2.0" | 220*176,240*320,320*240 |
2.2" | 176*220,220*176,240*320,320*240 |
2.4" | 320*240 |
2.6" | 240*320,320*240,240*400 |
2.8" | 240*320,320*240,240*400 |
3.0" | 240*320 |
3.2" | 240*320,240*400,320*480,480*800 IPS full angle |
3.5" | 480*800,480*320,320*480 full angle |
4.3" | 480*272 high luminance |
5.0" | 800*480 high luminance |
Product | Applications |
Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
1 | FOG automatical device can ensure the capacity of 6000,000 per month. |
2 | MOQ can be 100pcs, lead time of standard products is 20 days. |
3 | Reliability test and full examination to ensure the high quality of the display. |
4 | OEM&ODM are provided for TFT/TN LCD/Plastic Moulding. |
5 | Strictly ISO quality management system. |
6 | Mature and Professional R&D and after service. |
7 | Various cooperation experience with big brands. |
1 | Provide high quality display for Western and North Asia's small and medium-sized company ! |
2 | To be the first-class TFT LCD manufacturer ! |
1 | MOQ: | 1pcs |
2 | L/T: | Samples in stocks,2-4 weeks for mass production |
3 | Trade Terms : | EXW |
4 | Payment: | 100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
5 | Warranty: | 12 months |
6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
