Home > Consumer Electronics > Display & Accessories > LCD Module > Factory Sale 1.77 Inch Tft Lcd Display Panel 128*160 Resolution With Resistive Touch Panel for Electronic Device-TF17713A
Factory Sale 1.77 Inch Tft Lcd Display Panel 128*160 Resolution With Resistive Touch Panel for Electronic Device-TF17713A
US$ 2.8 - 3.2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Topfoison
Model Number:
TF17713A
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TF17714A 1.77 Inch TFT LCD Display Without Touch Panel Quality ChoiceUS$ 1.95 - 2.05MOQ: 1 Piece -
1.6 Inch Sunlight Readable Tft Lcd Screen Transflective LCD for Mobile Device-TF16001AUS$ 10 - 15MOQ: 1 Piece
-
1.22inch Tft Replacement Tft Screen Lcd Display TF12210A for Mobile Phone ProductsUS$ 4.40 - 50.00MOQ: 1 Piece
-
2.8inch IPS Wide View High Resolution 240*320 Driver ILI9340LUS$ 5.00 - 20.00MOQ: 1 Piece
-
1024*105 9.1inch Bar Lcd Display Special Size TFT LCD ModuleUS$ 29 - 100MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Topfoison
Model Number
TF17713A
Type
TFT

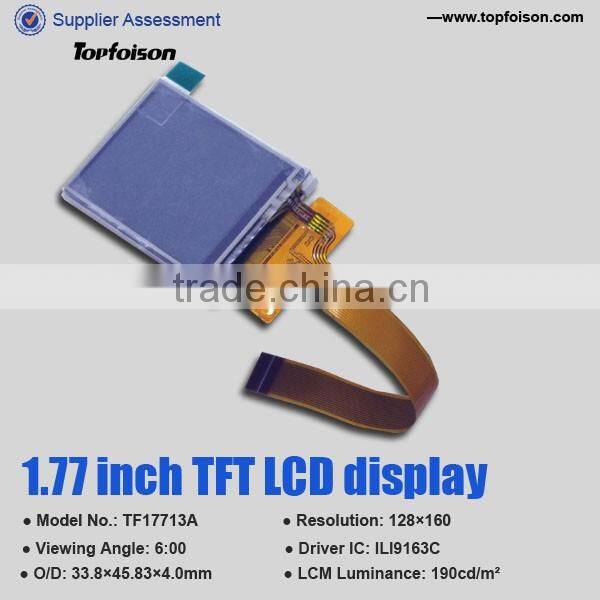

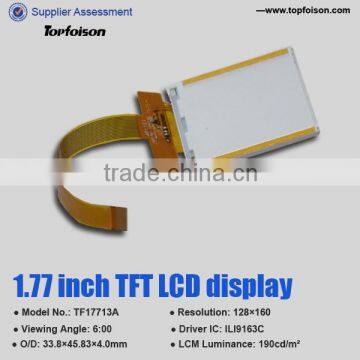

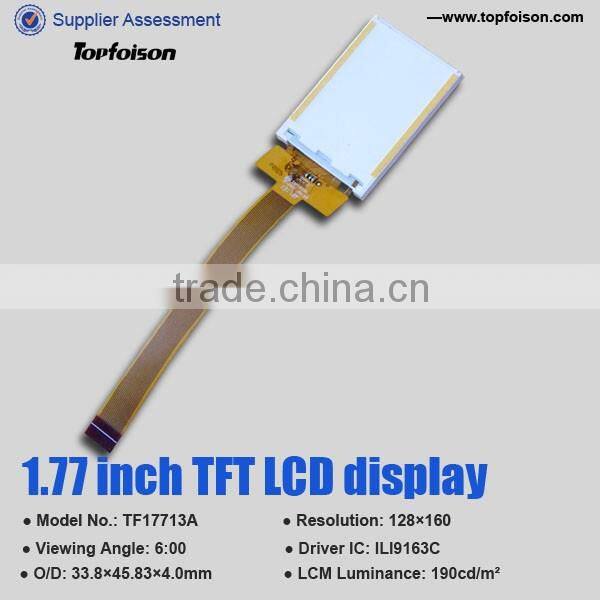

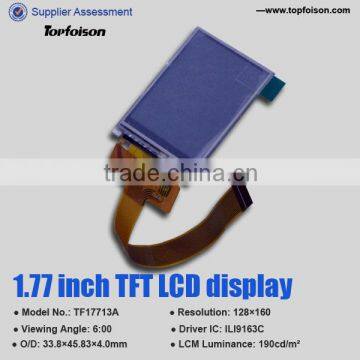

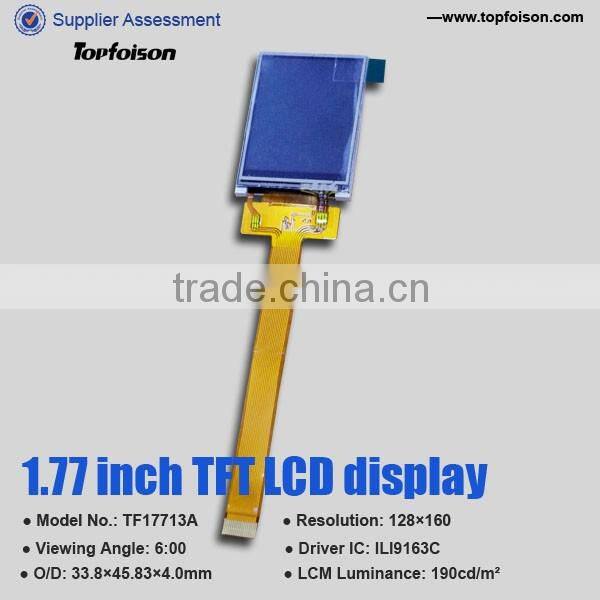

Factory Sale 1.77 inch tft lcd display panel 128*160 resolution with resistive touch panel for electronic device-TF17713A
Product Description
| Essential Specification Topfoison |
| Item: | 1.77 inch TFT touch screen |
| Resolution: | 128*160 |
| Inserting Mode: | Plug-in Type |
| Viewing Angle: | 12:00 |
| Interface: | 4line Bit compatible 8080 I/F |
| Outline Dimension: | 33.8mm(W)*45.83mm(H)*4.0mm(D) |
| Active Area: | LCD---28.03mm(W)*35.04mm(H) |
| TP---29.03mm*36.04mm | |
| Driver IC: | ILI9163V |
| PIN Nos.: | 18 |
| LED Connect Mode: | 2 LEDs in parallel |
| Operating Voltage | -0.3~4.6V |
| Operating temperature | -20~70°C |
| Storage temperature | -30~80°C |
| Backlight Luminance: | 1500 CD/M2 |
| LCM Luminance: | 100 CD/M2 |
| LCM brightness uniformity | 80 |
Company Information
| Company and Certification Topfoison |
Packaging & Shipping
| 1 | MOQ: | 1pcs |
| 2 | L/T: | Samples in stocks,2-4 weeks for mass production |
| 3 | Trade Terms : | EXW |
| 4 | Payment: | 100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
| 5 | Warranty: | 12 months |
| 6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
Our Services
Product Introduction Topfoison |
| (1)Product Range | |||
| TFT LCD display | Resistive Touch Panel | Plastic Mould | Solution Help |
| TN/STN/FSTN/OLED | Capacitive Touch Panel | Electronic Component | |

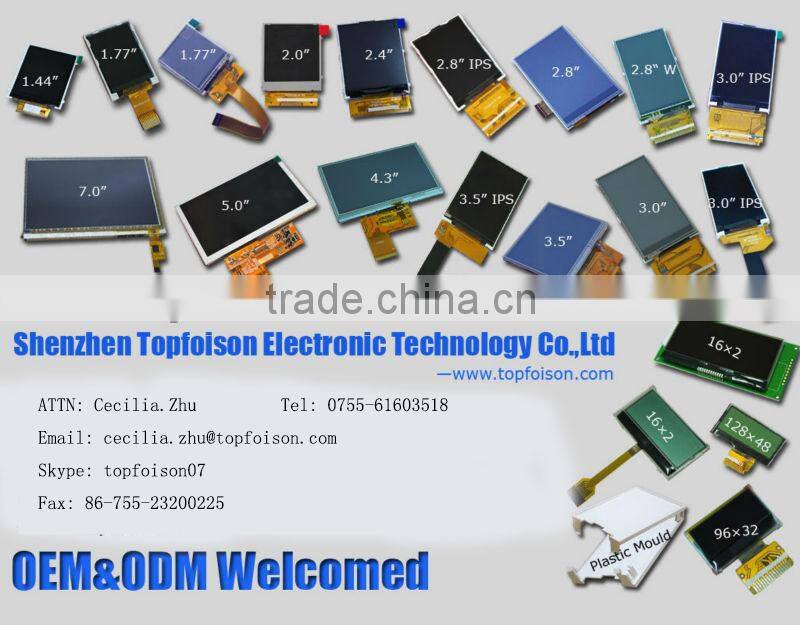

| (2)Main Size of TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*128 |
| 1.77" | 128*160 |
| 2.0" | 176*220 |
| 2.4" | 240*320 |
| 2.8" | 240*320 240*400 |
| 3.0" | 240*400 |
| 3.5" | 320*240 320*480 |
| 4.3" | 480*272 |
| 5.0" | 800*480 |
| 7.0" | 800*480 |
| 9.7" | 1024*768 |
| (3)Customization Items for TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*160 |
| 1.5" | 128*128 round type |
| 2.0" | 220*176,240*320,320*240 |
| 2.2" | 176*220,220*176,240*320,320*240 |
| 2.4" | 320*240 |
| 2.6" | 240*320,320*240,240*400 |
| 2.8" | 240*320,320*240,240*400 |
| 3.0" | 240*320 |
| 3.2" | 240*320,240*400,320*480,480*800 IPS full angle |
| 3.5" | 480*800,480*320,320*480 full angle |
| 4.3" | 480*272 high luminance |
| 5.0" | 800*480 high luminance |
Main Application Topfoison |
Product | Applications |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
Our Advantages Topfoison |
| 1 | FOG automatical device can ensure the capacity of 6000,000 per month. |
| 2 | MOQ can be 100pcs, lead time of standard products is 20 days. |
| 3 | Reliability test and full examination to ensure the high quality of the display. |
| 4 | OEM&ODM are provided for TFT/TN LCD/Plastic Moulding. |
| 5 | Strictly ISO quality management system. |
| 6 | Mature and Professional R&D and after service. |
| 7 | Various cooperation experience with big brands. |
Company Objectives Topfoison |
| 1 | Provide high quality display for Western and North Asia's small and medium-sized company ! |
| 2 | To be the first-class TFT LCD manufacturer ! |
