Low Power Consumption 2.4 Inch TFT LCD Display 240*320 for Consumer Electronics-TF24013A

Specifications

1-Item:2.4 inch TFT LCD Display
2-Resolution: 240*320
3-IC:ILI9341
4-Viewing Angle: 12 O'clock
5-OEM&ODM

low power consumption 2.4 inch TFT LCD Display 240*320 for consumer electronics-TF24013A











1.Essential Specification



Item:	low power consumption 2.4 inch TFT LCD Display 240*320 for consumer electronics-TF24013A
Resolution:	240*320
Inserting Mode:	Plug-in Type
Viewing Angle:	6:00
Interface:	8Bit compatible 8080 I/F
Outline Dimension:	42.72mm(W)*0.26mm(H)*2.55mm(D)
Active Area:	LCD--- 36.72mm(W)*48.96mm(H)
	TP---
Driver IC:	ILI9341
PIN Nos.:	44
LED Connect Mode:	4  LEDs in parallel
Operating Voltage	-0.3~4.6V
Operating temperature	-20~70°C
Storage temperature	-30~80°C
Backlight Luminance:	4000 CD/M2
LCM Luminance:	240 CD/M2
LCM Brightness Uniformity	80

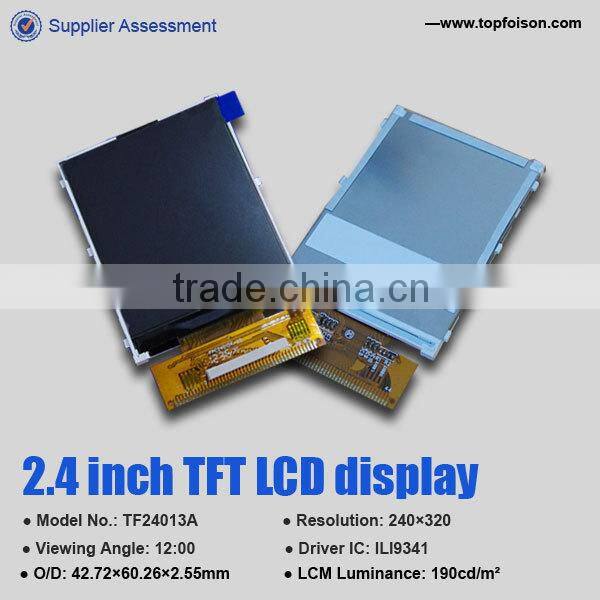

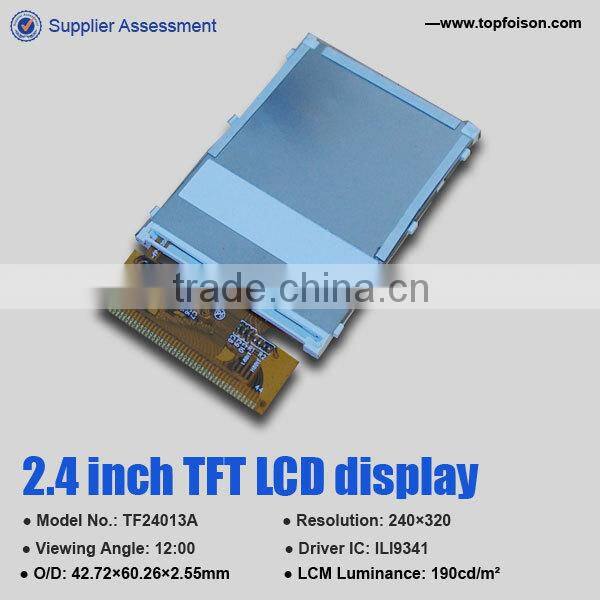

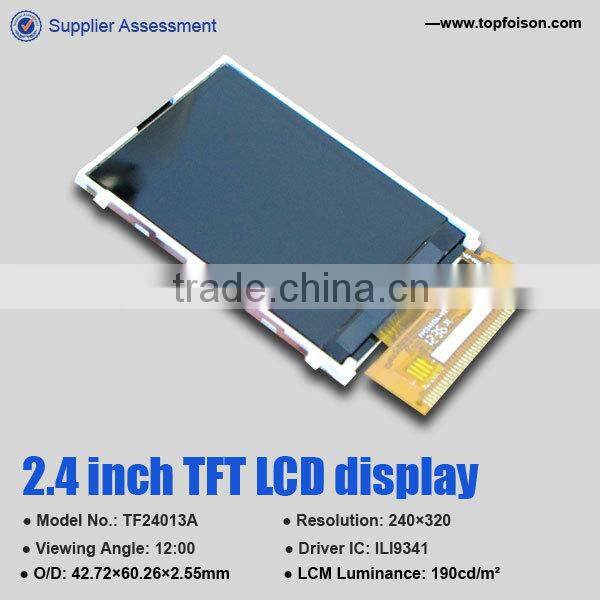

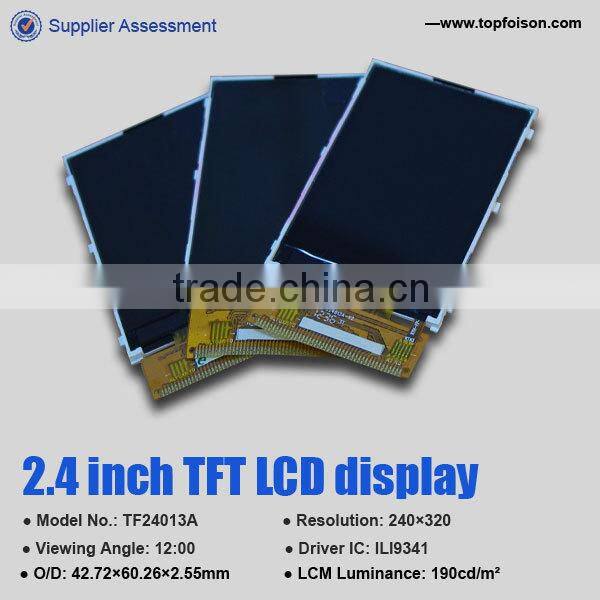

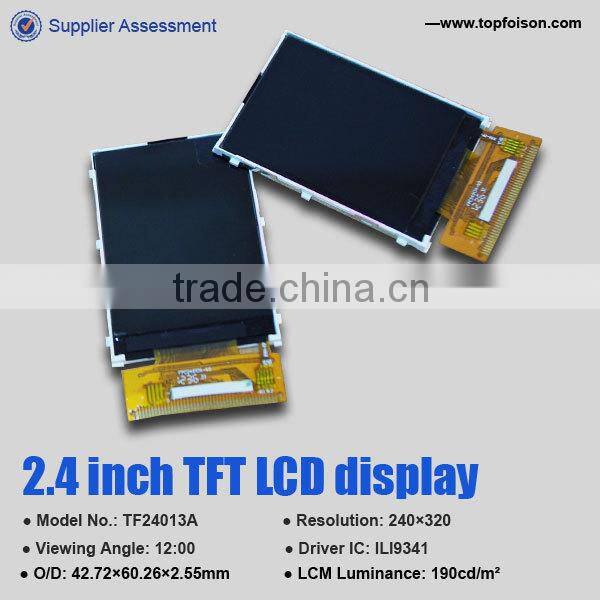

2.Product Pictures









3.Factory Show







4.Product Introduction



(1)Product Range
TFT LCD display	Resistive Touch Smart  Panel	Plastic Mould	Solution Help
TN/STN/FSTN/OLED	Capacitive Touch Panel	Electronic Component



(2)Main Size of TFT LCD Display
Size	Resolution
1.44"	128*128
1.77"	128*160
2.0"	176*220
2.4"	240*320
2.8"	240*320 240*400
3.0"	240*400
3.5"	320*240 320*480
4.3"	480*272
5.0"	800*480
7.0"	800*480
9.7"	1024*768



(3)Customization Items for TFT LCD Display
Size	Resolution
1.44"	128*160
1.5"	128*128 round type
2.0"	220*176,240*320,320*240
2.2"	176*220,220*176,240*320,320*240
2.4"	320*240
2.6"	240*320,320*240,240*400
2.8"	240*320,320*240,240*400
3.0"	240*320
3.2"	240*320,240*400,320*480,480*800 IPS full angle
3.5"	480*800,480*320,320*480 full angle
4.3"	480*272 high luminance
5.0"	800*480 high luminance





5.Main Application



Product	Applications
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.





6.Our Advantages



1	FOG automatical device can ensure the capacity of 6000,000 per month.
2	MOQ can be 100pcs, lead time of standard products is 20 days.
3	Reliability test and full examination to ensure the high quality of the display.
4	OEM&ODM are provided for TFT/TN LCD/Plastic Moulding.
5	Strictly ISO quality management system.
6	Mature and Professional R&D and after service.
7	Various cooperation experience with big brands.





7.General Business Clauses



1	MOQ:	1pcs
2	L/T:	Samples in stocks,2-4 weeks for mass production
3	Trade Terms :	EXW
4	Payment:	100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production
5	Warranty:	12 months
6	Package:	Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton





8.Company Objectives:



1	Provide high quality display for Western and North Asia's small and medium-sized company !
2	To be the first-class TFT LCD  manufacturer !
