Home > Consumer Electronics > Display & Accessories > LCD Module > TF24013B-QDIT Standard LCD Module 240*320 TFT LCM 2.4inch Tft Lcd
TF24013B-QDIT Standard LCD Module 240*320 TFT LCM 2.4inch Tft Lcd
US$ 3.80 - 10.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Topfoison
Model Number:
TF24013B
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Power Consumption 2.4 Inch TFT LCD Display 240*320 for Consumer Electronics-TF24013AUS$ 1 - 10MOQ: 1 Piece -
Topfoison 2.4 Inch TFT LCD 240*320 Display With Full Viewing Angle TF24032AUS$ 4 - 10MOQ: 1 Piece
-
Factory Supply 2.3 Inch TFT LCD Display 320*240 Resolution 8 Bit Interface for Smartwatch-TF23001AUS$ 4 - 4.4MOQ: 1 Piece
-
Hot Selling 2 Inch Tft Lcd Module With 176*220 for Consumer Product TopfoisonUS$ 4 - 10MOQ: 1 Piece
-
Factory Sale 1.77 Inch Tft Lcd Display Panel 128*160 Resolution With Resistive Touch Panel for Electronic Device-TF17713AUS$ 2.8 - 3.2MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Topfoison
Model Number
TF24013B
Type
TFT
Product attribute
TF24013B-QDIT standard LCD Module 240*320 TFT LCM 2.4inch tft lcd
| Item: | TF24013B-QDIT standard LCD Module 240*320 TFT LCM 2.4inch tft lcd |
| Resolution: | 240*320 |
| Inserting Mode: | Plug-in Type |
| Viewing Angle: | 12:00 |
| Interface: | 8 Bit compatible RGB I/F |
| Outline Dimension: | 42.72mm(W)*60.16mm(H)*3.65mm(D)(Typ) |
| Active Area: | LCD---36.72mm(W)*48.96mm(H) |
| TP---37.72mm(W)*53.16mm(H) | |
| Driver IC: | ILI9341V |
| PIN Nos.: | 44 |
| LED Connect Mode: | 4 LEDs in series and parallel |
| Operating Voltage | -0.3~4.6V |
| Operating temperature | -20~70°C |
| Storage temperature | -30~80°C |
| Backlight Luminance: | 4000 CD/M2 |
| LCM Luminance: | 200 CD/M2 |
| LCM Brightness Uniformity | 80 |

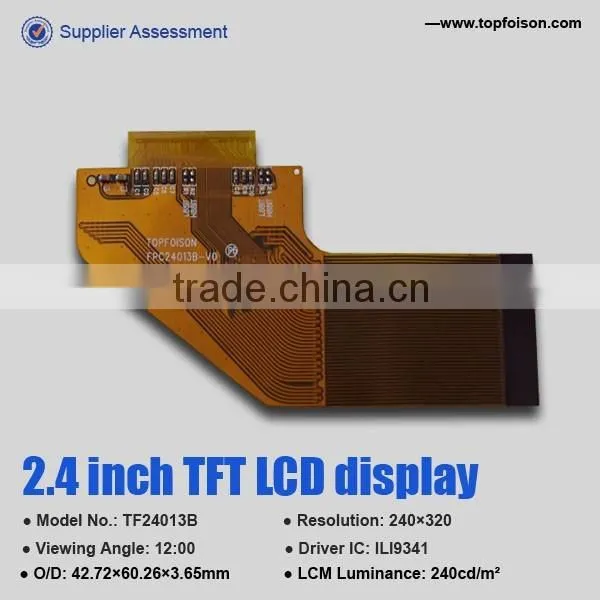

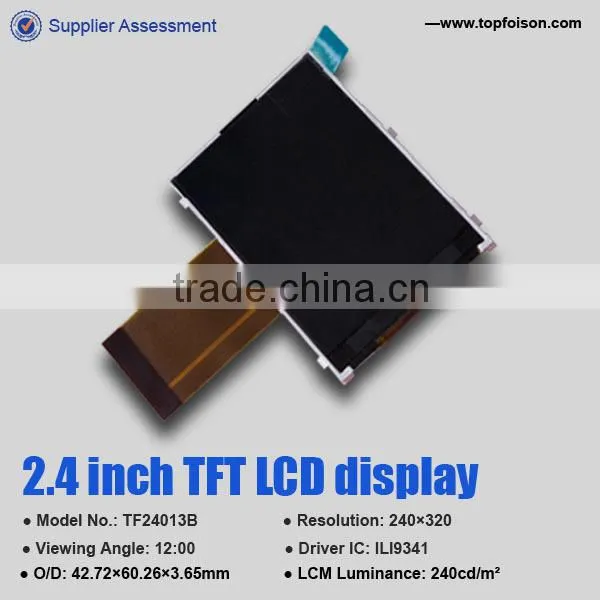

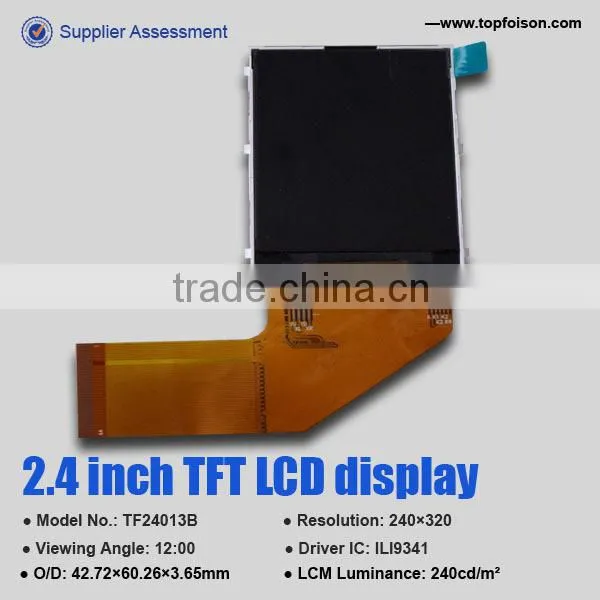

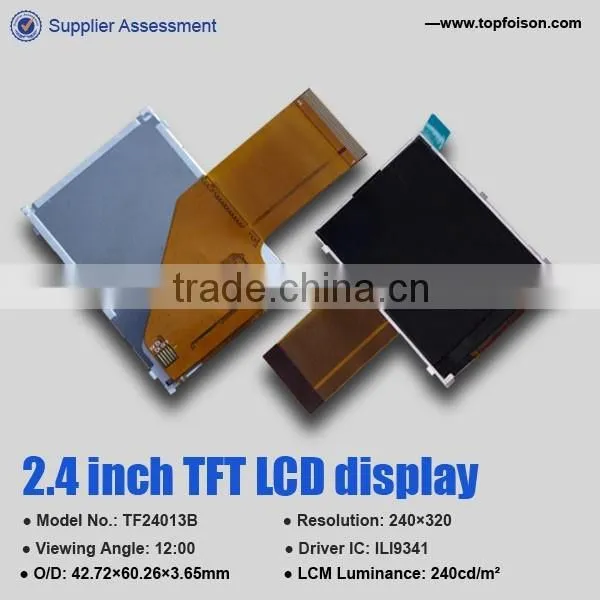

Product display
TF24013B-QDIT standard LCD Module 240*320 TFT LCM 2.4inch tft lcd
Company Information
Topfoison covers 6500 sq.m. production workshop area, including 4000 sq.m. dust-free clean workshop with more than 600 staffs working inside. Since the start, our company has focused on the TFT LCD’s R&D, manufacturing and selling. The 6 world-class automatic FOG, COG production lines ensure the daily capacity of 100,000 pcs. We also have our own professional R&D groups specialized in a wide range fromTN/STN/FSTN/OLED/Capacitive touch panel&Resistive touch panel/Plastic moulding customization.
Product Introduction
| (1)Product Range | |||
| TFT LCD display | Resistive Touch Panel | Plastic Mould | Solution Help |
| TN/STN/FSTN/OLED | Capacitive Touch Panel | Electronic Component | |
|
(2)Main Size of TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*128 |
| 1.77" | 128*160 |
| 2.0" | 176*220 |
| 2.4" | 240*320 |
| 2.8" | 240*320 240*400 |
| 3.0" | 240*400 |
| 3.5" | 320*240 320*480 |
| 4.3" | 480*272 |
| 5.0" | 800*480 |
| 7.0" | 800*480 |
| 9.7" | 1024*768 |
(3)Customization Items for TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*160 |
| 1.5" | 128*128 round type |
| 2.0" | 220*176,240*320,320*240 |
| 2.2" | 176*220,220*176,240*320,320*240 |
| 2.4" | 320*240 |
| 2.6" | 240*320,320*240,240*400 |
| 2.8" | 240*320,320*240,240*400 |
| 3.0" | 240*320 |
| 3.2" | 240*320,240*400,320*480,480*800 IPS full angle |
| 3.5" | 480*800,480*320,320*480 full angle |
| 4.3" | 480*272 high luminance |
| 5.0" | 800*480 high luminance |
Main Application
Product |
Applications |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
Packaging & Shipping
| 1 | MOQ: | 1pcs |
| 2 | L/T: | Samples in stocks,2-4 weeks for mass production |
| 3 | Trade Terms : | EXW |
| 4 | Payment: |
100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
| 5 | Warranty: | 12 months |
| 6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
Our Services
| 1 | FOG automatical device can ensure the capacity of 6000,000 per month. |
| 2 | MOQ can be 100pcs, lead time of standard products is 20 days. |
| 3 | Reliability test and full examination to ensure the high quality of the display. |
| 4 | OEM&ODM are provided for TFT/TN LCD/Plastic Moulding. |
| 5 | Strictly ISO quality management system. |
| 6 | Mature and Professional R&D and after service. |
| 7 | Various cooperation experience with big brands. |
Company Objectives
| 1 | Provide high quality display for Western and North Asia's small and medium-sized company ! |
| 2 | To be the first-class TFT LCD manufacturer ! |
