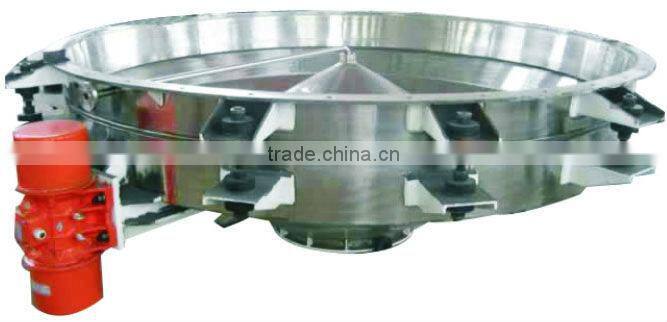

hot sale Oil resistant Food Bin activator

Specifications

Professional manufacter of 27 years experiance

Product description

Applications

Used in the Bulk Solids Material Handling Systems, Bin Activators, also known as Live Bottom Bins, Shaker Bins, or Vibrating Silo Bottoms are used to create flow of dry bulk solids from vertical storage bins. The Live Bottom will overcome sporadic or irregular discharge problems created by arching, bridging, and rat-holing. The typical geometry on a standard 4:1 vertical round bin is a live bottom that is half the diameter of the silo.

How It Works:

Positive discharge or First In First Out (FIFO) Flow of the silo is accomplished by the internal cone-shaped baffle which is rigidly attached to the body of the bin activator. This vibrated cone, replaces a major portion of the standard fixed cone. The entire bin activator unit moves horizontally by the unbalanced weights of an attached vibrator. The cone baffle relieves the weight of the material from the lower section of the bin activator, and acts like a wedge as it moves beneath the material and pushes it in all areas adjacent to the cone's surfaces. This powerful force is also transmitted to the material in the upper portion of the bin as the motion is carried from particle to particle. Product discharges around the periphery of the baffle toward the outlet of the metalfab bin activator, carmen, No Screw conveyors attached.

Materials of Construction:

Carbon Steel (enamel paint), Carbon Steel (FDA white Epoxy), 304 SS (industrial finish), 304 SS (standard food grade finish), 304 SS (3A Dairy)

Silo Discharge Aid for Calcium Carbonate, Lime, Limestone-Crushed, Flour, Sugar, Starch, Activated Carbon, Aluminia, Carbon Black, Clay, Diatomaceous Earth, Magnesium Oxide, Salt,Soda Ash, Titanium DiOxide, Zinc Oxide, Vibra.

The technology

1. Vibratory bin activator (discharge bottom)

2. Integrated baffle support

3. Hanger arms allowing horizontal vibration

4. Maintenance-free unbalance motor

5. Bin activator diameters from 600 to 2200 mm

6. Mild or stainless steel bin activators available

Advantage

• Suitable for all bulk materials
• Non-compacting discharge
• "first in - first out" without bridge
• In particle deterioration
• Deaeration and bulk density homogenization
• For mild steel, SS, aluminum or plastic silo

Product picture

About us

FAQ

Q:What factors I need to get a quotation?

A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.

Q:What is the real delivery time of your factory?

A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.

Q: How do you ensure the quality of your products?

A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DZJX for most of our customers at home or abroad. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.

Q: How do your after-sale service work if the product got damaged?

A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)

Q: How could I trust your promise?

A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;

secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;

Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.

As the professional manufacturer of vibrating & transporting equipments since 1987, we are pleased to offer you the best product in a competitive price.

Quotation of vibrating equipments in other type is also available, please feel free to contact us if you have any request.
