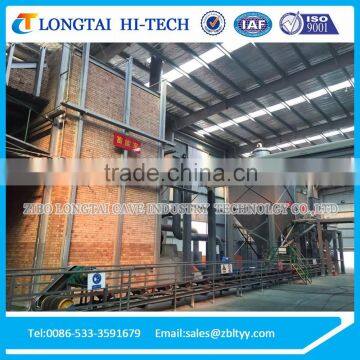

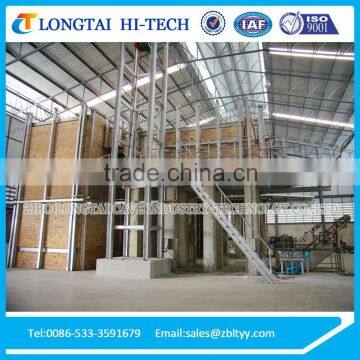

Help Center95 Tons Per Day Solid Sodium Silicate Production Plant
Related Products
-
20-22 Tons/Day Horseshoe Flame Solid Sodium Silicate Production LineNegotiableMOQ: 1 Set -
Recuperative Solid Sodium Silicate Glass FurnaceNegotiableMOQ: 1 Piece
-
High Efficiency Solid Sodium Silicate Furnace Machine ManufacturerUS$ 10,000 - 1,980,000MOQ: 1 Set
-
Low-Energy Solid Sodium Silicate Production LineUS$ 1,000,000 - 1,980,000MOQ: 1 Set
-
130 Tons Solid Sodium Silicate Furnace Production EquipmentUS$ 2,200,000 - 3,000,000MOQ: 1 Set
Features and advantage:
1. Total insulation;
2. Deep melting pool, big aspect ratio,high flame space;
3. Equipped with Pre-combustion room, stable and strong flame;
4. Throat with offset,double flow mouth with lift (easy to change raw meterial and adjust formula, flexible);

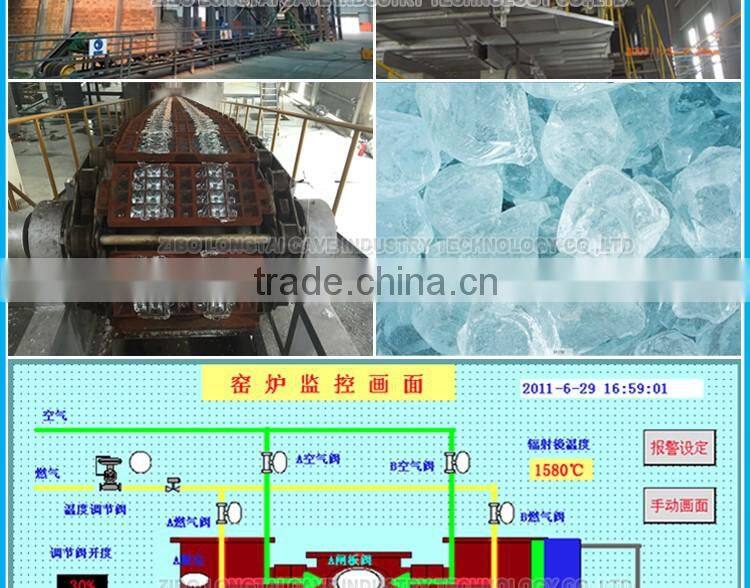

5. Glass liquid level controlled by the automatic control system(accuracy between ±0.2mm);
6. Totally sealed screw feeder, continuously automatic excavator etc;

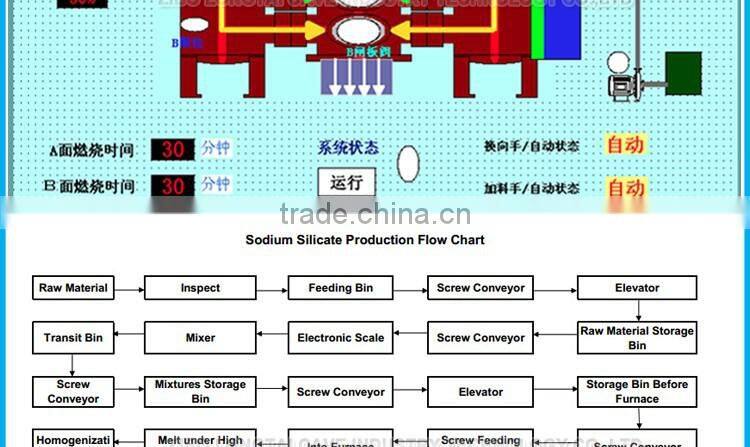

7.The furnace is equipped with two burners, which work alternately every 30 minutes, using PLC control system.
Name |
Specification Melting Area(m2) |
Fuel: Natural gas &Coking coal gas Melting Rate(K) |
Energy Consumption (CAL/KG) |
Melting Capacity (T/DAY-24H) |
Automatic Control System |
Total Weight(T)
Refractory&Steel |
|
Horseshoe flame furnace |
LT-MTL-60 |
1.58 |
1550 |
95 |
PLC |
1580 |
Name |
Specification Melting Area(m2) |
Fuel: Coal into gas Melting Rate(K) |
Energy Consumption (KG/T) |
Melting Capacity (T/DAY-24H) |
Coal gas kiln Diameter(mm) |
Total Weight(T)
Refractory&Steel |
|
Horseshoe flame furnace |
LT-MTL-60 |
1.58 |
250 |
95 |
3000 |
1730 |
Name |
Specification Melting Area(m2) |
Fuel: Heavy oil Melting Rate(K) |
Energy Consumption (CAL/KG) |
Melting Capacity (T/DAY-24H) |
Automatic Control System |
Total Weight(T) Refractory&Steel |
|
Horseshoe flame furnace |
LT-MTL-60 |
1.58 |
1550 |
95 |
PLC |
1580 |
The refractory will be packaged with wooden pallet.20GP will be used for refractory,40OT will be used for equipments.
We could provide furnace turkey project,furnace assentment and maintenance,furnace consultation.
We own:
1.Advanced and mature technology 2.More than 20 years designing and building experience

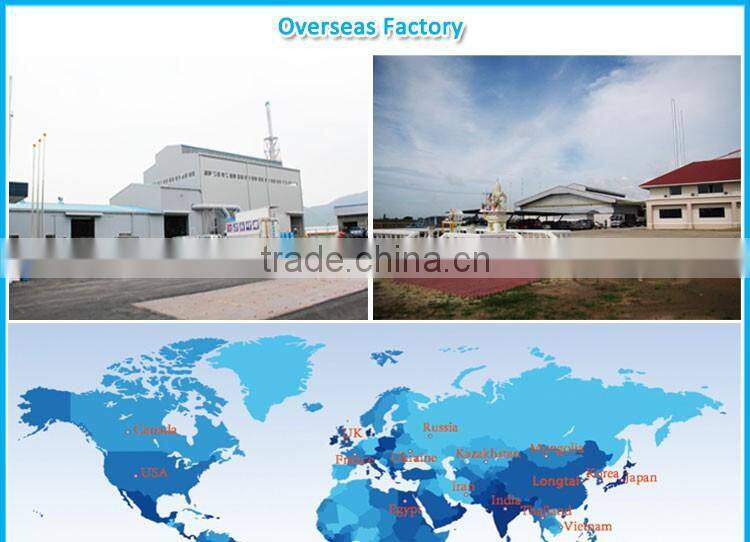

3.Professional construction team 4.Excellent oversea successfully cases
5.Stable after-service 6.ISO9001 certficate
1.What is the shape of the solid sodium silicate?
Re:There are two shapes of solid sodium silicate,one is lump,nearly pyramid.Another is granule,nearly cullet.
2.What is the raw material to produce sodium silicate?
Re:Most customers choose Na2CO3 and quartz sand.
3.How long will it take to finish a sodium silicate production line?
Re:For example,one 30tons production line from the preparations to trial production will take about 200-220days.
4.For the formal quotation,what shall be informed?
Re:Furnace capacity one day,Fuel,Raw material,Sodium silicate shape/cooling method.
