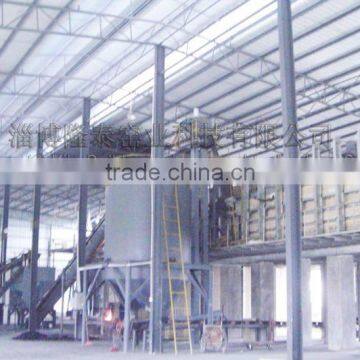

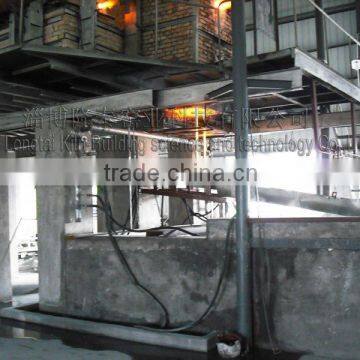

20-22 Tons/Day Horseshoe Flame Solid Sodium Silicate Production Line
- 6 Set / Sets per Month
- Qingdao Port
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Other, glass furnace | Usage: | Melting Furnace |
Place of Origin: | Shandong, China | Brand Name: | LT | Model Number: | LT-MTL-16 |
Weight: | 470 TONS |
Product Description
Specifications:
1. Scientific design.
2. Saving energy, low cost.
3. Compact structure, small covering area
4. Automatic PLC control system.
Features and advantage:
1. Total insulation;
2. Deep melting pool, big aspect ratio,high flame space;
3. Equipped with Pre-combustion room, stable and strong flame;
4. Throat with offset,double flow mouth with lift (easy to change raw meterial and adjust formula, flexible);
5. Glass liquid level controlled by the automatic control system(accuracy between ±0.2mm);
6. Totally sealed screw feeder, continuously automatic excavator etc;
7.The furnace is equipped with two burners, which work alternately every 30 minutes, using PLC control
system.
8. High thermal efficiency. Horseshoe-shaped U-shaped flame in the kiln, length times the length of the molten pool by up to 1.3-1.5, because of the long stroke, thus getting the fuel combustion, while the surface of the kiln body is extremely small, a small amount of heat loss can improve the heat efficiency and reduce fuel consumption , the current consumption of large-fired kiln can be 15-20% lower than the cross-fired kiln heat the same area.
9. simple structure, low cost. Only a small furnace melting tank is arranged in the end wall, and the cross-fired furnace generally have three or more pairs of small furnaces, and arranged on both sides of the molten pool, which would make more complex cross-fired furnace, masonry difficult, while cross-fired kiln large area, high build kilns and kiln-fired plant costs than the cost, the cost of building a horseshoe flame kiln than building the same scale cross-fired kiln 25-30% lower cost
Name | Specification Melting Area(m2) | Fuel: Natural gas Cooking coal gas Melting Rate(K) | Energy Consumption (CAL/KG) | Melting Capacity (T/DAY-24H) | Automatic Control System | Total Weight(T) Refractory&Steel |
Horseshoe flame furnace | LT-MTL-16 | 1.38 | 2100 | 20-22 | PLC | 470 |
Name | Specification Melting Area(m2) | Fuel: Coal into gas Melting Rate(K) | Energy Consumption (KG/T) | Melting Capacity (T/DAY-24H) | Coal gas kiln diameter(mm) | Total Weight(T) Refractory&Steel |
Horseshoe flame furnace | LT-MTL-16 | 1.38 | 380 | 20-22 | 1500 | 580 |
Name | Specification Melting Area(m2) | Fuel: Heavy oil Melting Rate(K) | Energy Consumption (CAL/KG) | Melting Capacity (T/DAY-24H) | Automatic Control System | Total Weight(T) Refractory&Steel |
Horseshoe flame furnace | LT-MTL-16 | 1.38 | 2100 | 20-22 | PLC | 470 |
Note:
When you send inquiry for solid sodium silicate furnace production line,in order to provide an accurately price to you,
pls provide the following request:
1.Furnace production per day?
2.Furnace fuel?
3.The raw material mixing way:Na2CO3 and quartz sand or Na2SO4 and quartz sand?
4.The solid sodium silicate is lump or particle?
5.The ratio of SiO2 and Na2O?
