Good Quality High Pressure Jumbo Cylinder for Sale
Model No. | SCS0825CS-40F | SCS0925CT-40B | SCS0625CS-40F-711 | SCS0925CS-10F | SCS1225CS-20F |
Working pressure/MPa | 25 | 25 | 25 | 25 | 25 |
Cylinder size/mm | OD559*17.4*10975 | OD559*17.4*12190 | OD711*22.1*10975 | OD559*17.4*2600 | OD559*17.4*5400 |
Steel type | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo |
Working temperature | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ |
Cylinder weight/KG | 2825 | 3100 | 4460 | 670 | 1390 |
Water volume/L | 2225 | 2580 | 3700 | 456 | 1030 |
Filling gas volume /NM3 | 662.5 | 766.67 | 1100 | 136.67 | 308.75 |

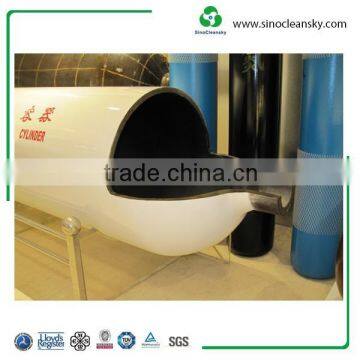

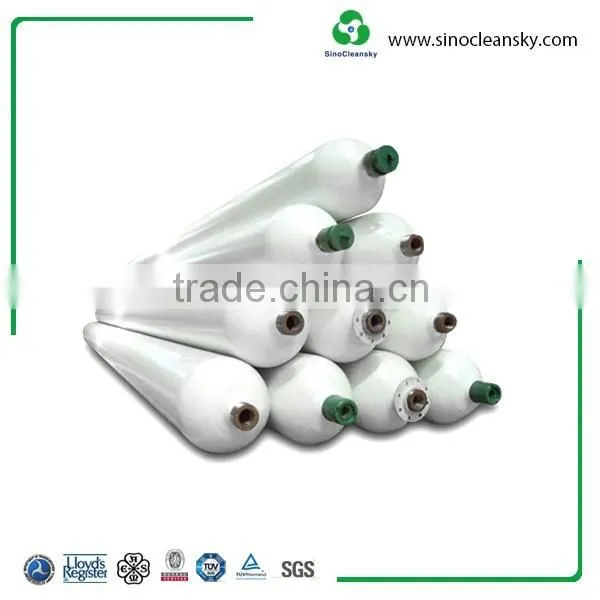

High Pressure Jumbo Cylinder
Produce as per ISO11120, ASME and approved by BV inspection report.
Application:

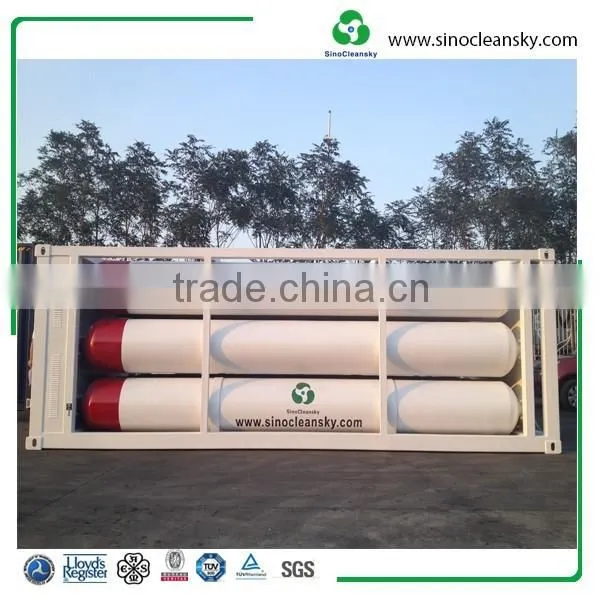

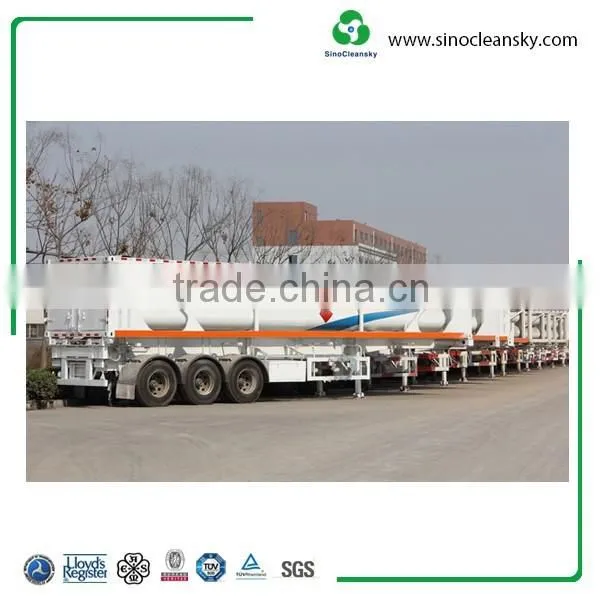

SinoCleansky CNG jumbo cylinder skid/trailers are widely used in sectors of gas storage, NGV station, CNG transportation, and CNG power generating plant and etc. Meanwhile our jumbo cylinder skid/trailers are also applied for the storage and transportation of hydrogen, oxygen, nitrogen, argon, helium, purified gas and other kinds of gases.
Features of SinoCleansky CNG jumbo cylinder:
1. Heat-spinning technology;
2. Walking beam continuous heat treatment;
3. Large-size structure and fewer valves, tubes and joints;
4. Concise design, less maintenance on site;
5. Lower weight of design;
6. Additional gas-filling devices.
