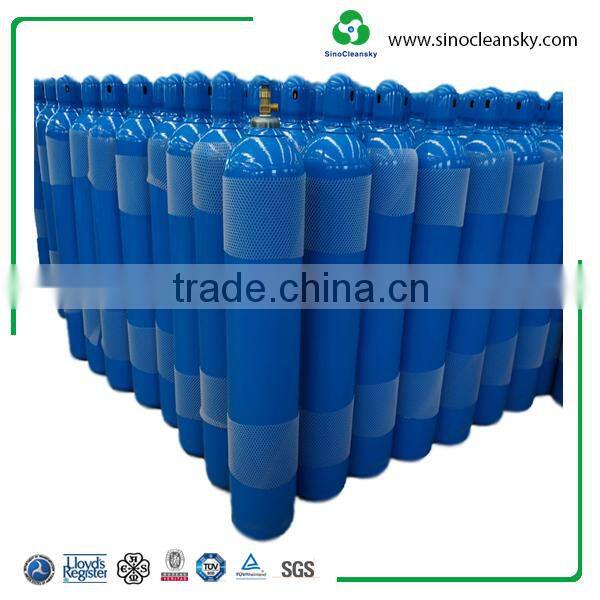

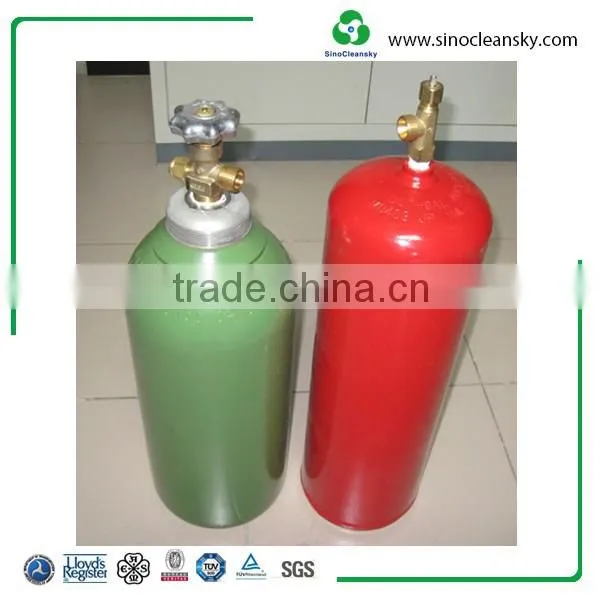

Medical Gas Oxygen Cylinder Seamless Steel Gas Cylinder for Industrial
| Manufacturing STD | GB5099, DOT-3AA, EN1964, ISO9809 |
Outer diameter | 90mm-406mm etc. | |
Water capacity | 0.5L-200L | |
Working pressure | 15Mpa, 20Mpa, 25Mpa | |
Typical types | 5L, 10L, 40L, 47L, 50L, 67.5L, 80L |
Seamless Steel Gas Cylinder

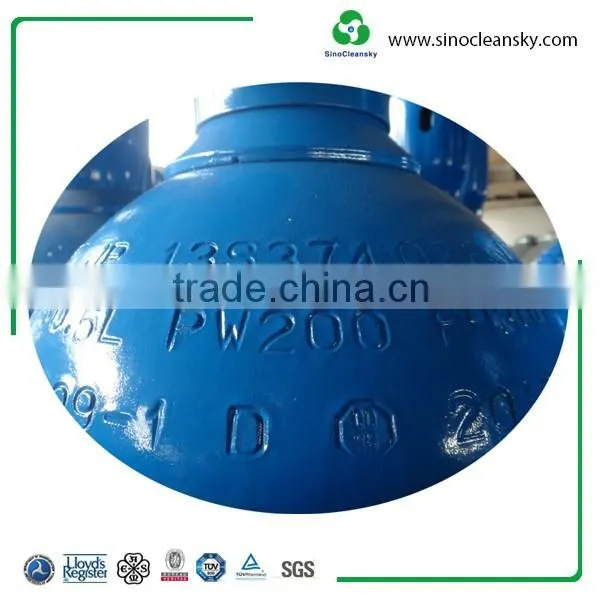

With the world class equipment and advanced technical process, SinoCleansky can produce Large, medium, small sizes high pressure seamless gas cylinders which range from 8-35Mpa in working pressure, 0.5-145L in water liter. “SCS” brand seamless steel cylinders have reliable quality, clear stamping, consistent height and elegant appearance. SinoCleansky’s cylinders have been exported to over 40 countries and areas in four continents. SinoCleansky’s cylinder has got the honors as”Beijing famous brand product” and”Chinese well known products”.
Main Types for Seamless Steel Gas Cylinder
Standard | Outside Diameter (mm) | Water Capacity (L) | Height (without valve) (mm) | Weight (without valve, cap) (kg) | Service Pressure (MPa) | Design Wall Thickness (mm) | Material |
GB5099 | 219 | 40 | 1315 | 48 | 15 | 5.7 | 37Mn |
GB5099 | 232 | 47 | 1370 | 52 | 15 | 5.4 | 37Mn |
GB5099 | 267 | 68 | 1500 | 78 | 15 | 6.3 | 30CrMo |
GB5099 | 267 | 68 | 1500 | 76 | 15 | 6.3 | 37Mn |
GB5099 | 229 | 50 | 1500 | 65 | 20 | 6.2 | 30CrMo |
GB5099 | 229 | 50 | 1550 | 75 | 20 | 6.2 | 30CrMo |
GB5099 | 178 | 10 | 555 | 15 | 20 | 4.6 | 30CrMo |
GB5099 | 165 | 10 | 630 | 14.5 | 15 | 4.3 | 37Mn |
GB5099 | 140 | 10 | 840 | 14 | 15 | 3.6 | 37Mn |
GB5099 | 140 | 10 | 840 | 14 | 15 | 3.6 | 30CrMo4 |
GB5099 | 140 | 10 | 840 | 14 | 20 | 3.7 | 30CrMo4 |
GB5099 | 133 | 10 | 900 | 11.1 | 15 | 3 | 30CrMo |
