China Supplier CNG Tube Skid Trailer 8,9,10,11,12 Tubes with 25Mpa
Model No. |
SCS0825CS-40F |
SCS0825CT-40F |
SCS1025CT-40F |
SCS1225CS-40F |
Cylinder quantity |
8 |
8 |
10 |
12 |
Working pressure/MPa |
25 |
25 |
25 |
25 |
Cylinder size/mm |
OD559*17.4*10975 |
OD559*17.4*11580 |
OD559*17.4*11580 |
OD559*17.4*10975 |
Steel type |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
Working temperature |
-20~65℃ |
-20~65℃ |
-20~65℃ |
-20~65℃ |
Cylinder weight/KG |
2825 |
2981 |
2973 |
2825 |
Equipment weight /KG |
25860 |
26200 |
33920 |
37260 |
Water volume/M3 |
17.8 |
19.1 |
23.33 |
27 |
Filling gas volume /NM3 |
5300 |
5680 |
7000 |
8030 |
Loading weight/KG |
3800 |
4075 |
5019 |
5760 |
Total weight/KG |
29660 |
30275 |
38939 |
43020 |
Skid/Trailer dimension |
12192*2438*1400 |
12192*2438*1400 |
12192*2438*2071 |
12192*2438*2010 |
(skid) |
(skid) |
(skid) |
(skid) |
|
Model No. |
SCS0625CS-40F-711 |
SCS0625-40B-711 |
SCS1225CS-20F |
SCS0925CS-10F |
Cylinder quantity |
6 |
6 |
12 |
9 |
Working pressure/MPa |
25 |
25 |
25 |
25 |
Cylinder size/mm |
OD711*22.1*10975 |
OD711*22.1 *11750 |
OD559*17.4*5400 |
OD559*17.4*2600 |
Steel type |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
Working temperature |
-20~65℃ |
-20~65℃ |
-20~65℃ |
-20~65℃ |
Cylinder weight/KG |
4460 |
4775 |
1390 |
670 |
Equipment weight /KG |
31000 |
30700 |
19700 |
9107 |
Water volume/M3 |
22.2 |
23.8 |
12.36 |
4.1 |
Filling gas volume /NM3 |
6600 |
7080 |
3705 |
1230 |
Loading weight/KG |
4736 |
5080 |
2654 |
875 |
Total weight/KG |
35735 |
35780 |
22354 |
9982 |
Skid/Trailer dimension |
12192*2438*1775 |
12400*2450*1515 |
6058*2438*2010 |
3048*1860*2035 |
(skid) |
(skid) |
(skid) |
(skid) |
CNG jumbo tube trailler

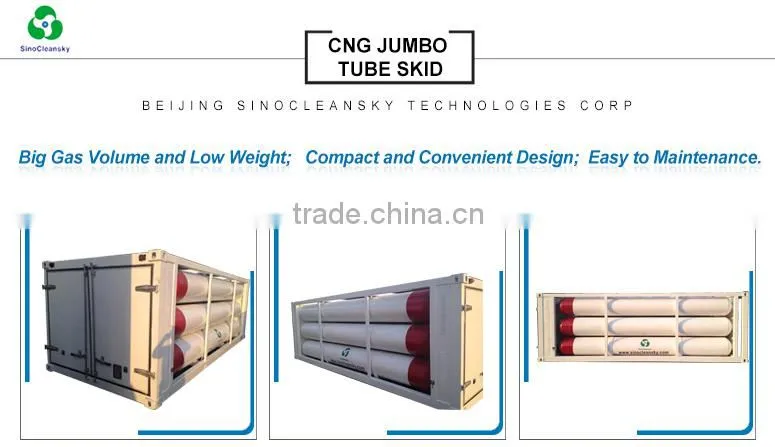

Ideal Solution for CNG Storage and Transportation---CNG Jumbo Cylinder Skid/Trailer
Produce as per ISO11120, ASME and approved by BV inspection report.

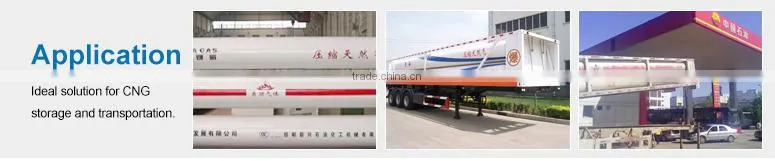

Application:
SinoCleansky CNG tube trailer/trailers are widely used in sectors of gas storage, NGV station,CNG tank trailer, and CNG power generating plant and etc. Meanwhile our jumbo cylinder skid/trailers are also applied for the storage and transportation of hydrogen, oxygen, nitrogen, argon, helium, purified gas and other kinds of gases.

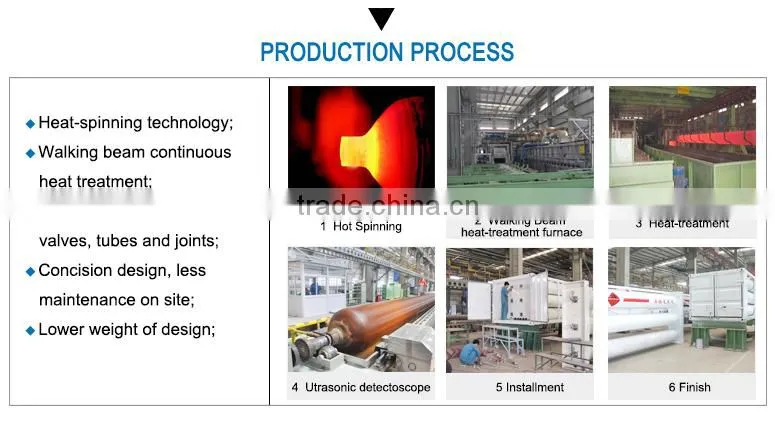

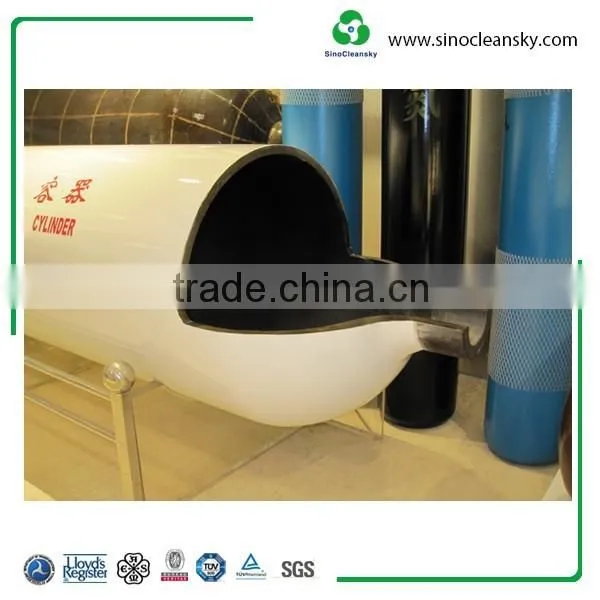

Features of SinoCleansky high-pressure jumbo gas cylinder:
1. Heat-spinning technology;
2. Walking beam continuous heat treatment;
3. Large-size structure and fewer valves, tubes and joints;
4. Concise design, less maintenance on site;
5. Lower weight of design;
6. Additional gas-filling devices.
