Home > Products > Pressure Vessel > High Pressure Seamless Steel Cylinder with GB ISO EN TPED Standard
High Pressure Seamless Steel Cylinder with GB ISO EN TPED Standard
- 100000 Unit / Units per Month
- Main Port China
- T/T L/C D/P D/A Other
Product Details
Material: | Steel | Use: | Industrial Gas | Pressure: | High |
Place of Origin: | China | Brand Name: | SINOCLEANSKY | Model Number: | High Pressure Gas Cylinder |
Product Description
High Pressure Seamless Steel Cylinder
with GB ISO EN TPED Standard
Manufacturing STD | GB5099, DOT-3AA, EN1964, ISO9809 | |
Outer diameter | 90mm-406mm etc. | |
Water capacity | 0.5L-200L | |
Working pressure | 15Mpa, 20Mpa, 25Mpa | |
Typical types | 5L, 10L, 40L, 47L, 50L, 67.5L, 80L |

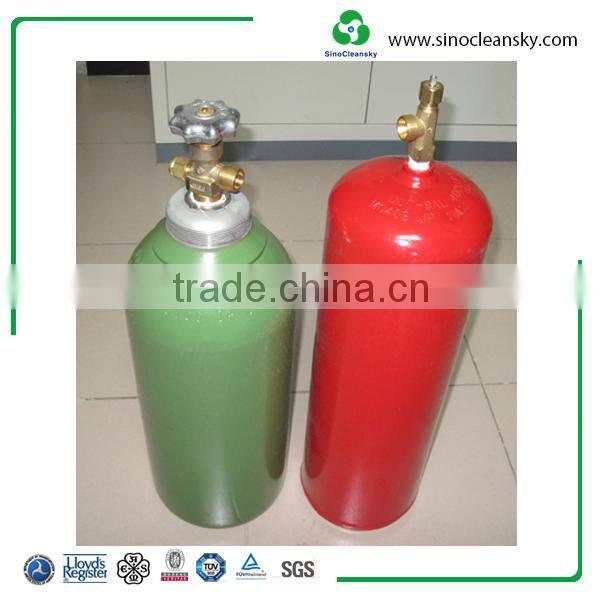

Seamless Steel Gas Cylinder
With the world class equipment and advanced technical process, SinoCleansky can produce Large, medium, small sizes high pressure seamless gas cylinders which range from 8-35Mpa in working pressure, 0.5-145L in water liter. “SCS” brand seamless steel cylinders have reliable quality, clear stamping, consistent height and elegant appearance. SinoCleansky’s cylinders have been exported to over 40 countries and areas in four continents. SinoCleansky’s cylinder has got the honors as”Beijing famous brand product” and”Chinese well known products”
Main types
Standard | Outside Diameter (mm) | Water Capacity (L) | Height (without valve) (mm) | Weight (without valve, cap) (kg) | Service Pressure (MPa) | Design Wall Thickness (mm) | Material |
GB5099 | 219 | 40 | 1315 | 48 | 15 | 5.7 | 37Mn |
GB5099 | 267 | 68 | 1500 | 78 | 15 | 6.3 | 30CrMo |
GB5099 | 229 | 50 | 1500 | 65 | 20 | 6.2 | 30CrMo |
GB5099 | 140 | 10 | 840 | 14 | 15 | 3.6 | 37Mn |
Standard | Outside Diameter (mm) | Water Capacity (L) | Height (mm) | Weight (kg) | Service Pressure (bar) | Test Pressure (bar) | Design Wall Thickness (mm) | Material |
ISO9809 | 219 | 40 | 1315 | 48 | 150 | 250 | 5.7 | 37Mn |
ISO9809 | 232 | 50 | 1460 | 61 | 200 | 300 | 6 | 30CrMo |
EN ISO9809 (TPED) | 267 | 68 | 1500 | 78 | 150 | 250 | 6.5 | 37Mn |
Standard | Type | Outside Diameter in. (mm) | Water Capacity cu. in. (L) | Height in. (mm) | Weight Ibs. (kg) | Service Pressure (psi) | Test Pressure (psi) | Design Wall Thickness in. (mm) | Material |
DOT-3AA | 225CF | 9“(229) | 2640(43.3) | 51.18"(1300) | 110.4(50) | 2015 | 3360 | 0.197(5.0) | 30CrMo (4130X) |
DOT-3AA | 20CF | 5.24“(133) | 220(3.6) | 14.8"(375) | 12.3(5.6) | 2015/ | 3360 | 0.118"(3.0) | 30CrMo (4130X) |
DOT-3AA | 40CF | 7"(178) | 476(7.8) | 17.7"(450) | 263(12) | 2015 | 3360 | 0.157"(4.0) | 30CrMo (4130X) |
