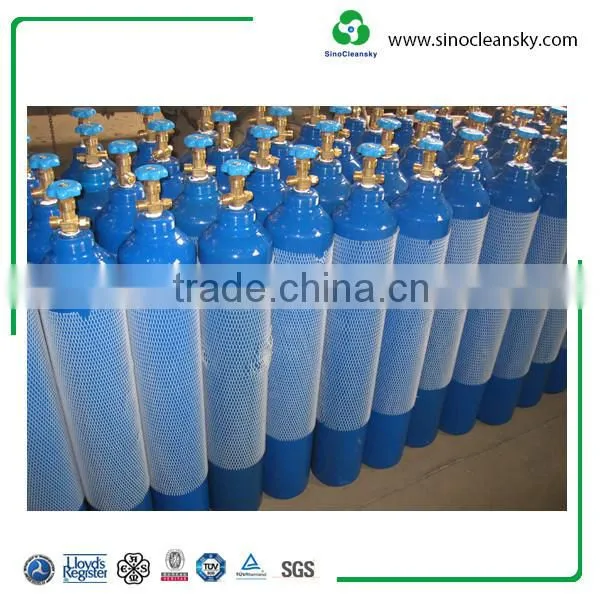

EN TPED 5L 150bar Medical Oxygen Cylinder with Good Quality

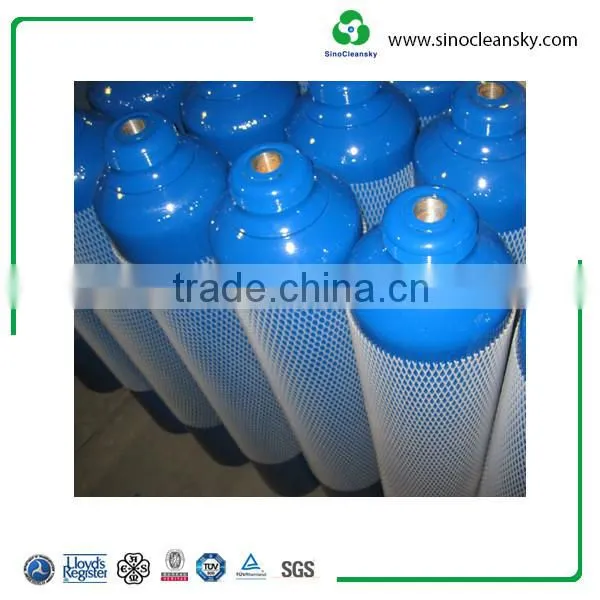

Classification

Medical Cylinder

Manufacturing STD

GB5099, DOT-3AA, EN1964, ISO9809

Outer diameter

108mm-159mm etc.

Water capacity

1L-20L

Working pressure

15Mpa, 20Mpa

Typical types

5L, 10L

Standard

Outside Diameter (mm)

Water Capacity (L)

Height (without valve) (mm)

Weight (without valve, cap) (kg)

Service Pressure (MPa)

Design Wall Thickness (mm)

Material

GB5099

219

40

1315

48

15

5.7

37Mn

GB5099

232

47

1370

52

15

5.4

37Mn

GB5099

267

68

1500

78

15

6.3

30CrMo

GB5099

267

68

1500

76

15

6.3

37Mn

GB5099

229

50

1500

65

20

6.2

30CrMo

GB5099

229

50

1550

75

20

6.2

30CrMo

GB5099

178

10

555

15

20

4.6

30CrMo

GB5099

165

10

630

14.5

15

4.3

37Mn

GB5099

140

10

840

14

15

3.6

37Mn

GB5099

140

10

840

14

15

3.6

30CrMo4

GB5099

140

10

840

14

20

3.7

30CrMo4

GB5099

133

10

900

11.1

15

3

30CrMo

Standard

Outside Diameter (mm)

Water Capacity (L)

Height (mm)

Weight (kg)

Service Pressure (bar)

Test Pressure (bar)

Design Wall Thickness (mm)

Material

ISO9809

219

40

1315

48

150

250

5.7

37Mn

ISO9809

232

50

1460

61

200

300

6

30CrMo

EN ISO9809 (TPED)

267

68

1500

78

150

250

6.5

37Mn

Standard

Type

Outside Diameter in. (mm)

Water Capacity cu. in. (L)

Height in. (mm)

Weight Ibs. (kg)

Service Pressure (psi)

Test Pressure (psi)

Design Wall Thickness in. (mm)

Material

DOT-3AA

225CF

9“(229)

2640(43.3)

51.18"(1300)

110.4(50)

2015

3360

0.197(5.0)

30CrMo (4130X)

DOT-3AA

20CF

5.24“(133)

220(3.6)

14.8"(375)

12.3(5.6)

2015/

3360

0.118"(3.0)

30CrMo (4130X)

DOT-3AA

40CF

7"(178)

476(7.8)

17.7"(450)

263(12)

2015

3360

0.157"(4.0)

30CrMo (4130X)
