SCBA Type 3 Gas Cylinder Carbon Fiber with Best Price
|
Manufacturing STD |
EN12245, TPED and DOT |
Outside diameter |
109mm, 139mm, 157mm,etc. |
|
Water capacity |
2.0L-12L |
|
Working pressure |
300bar |
|
Typical size |
2L, 3L, 4.7L, 6.8L, 9L and 12L. |

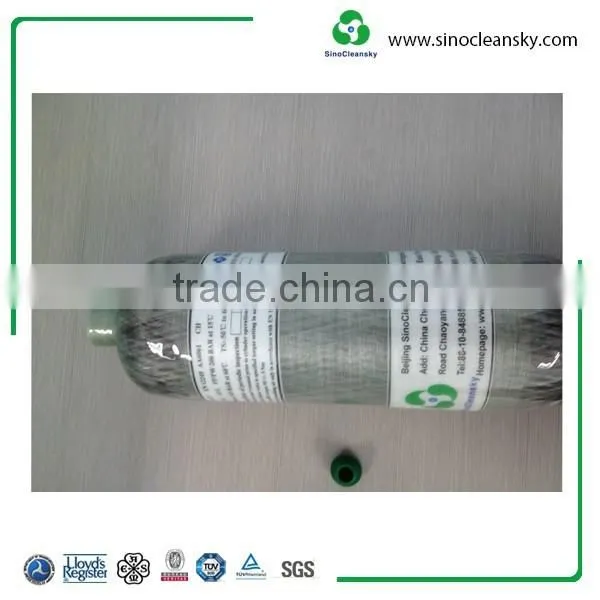

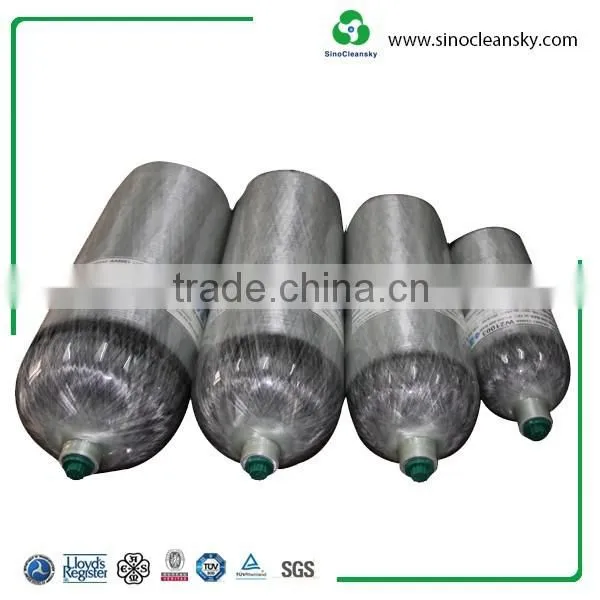

Fully Wrapped Carbon Fiber Reinforced Aluminum Lined Composite Cylinder
SinoCleansky composite cylinders are made by aluminum liner fully wrapped with carbon fiber, Which are ideally suited for use as firefighter’ self contained breathing apparatus (SCBA gas cylinder), paintball guns, home oxygen therapy, aircraft oxygen and inflatable escape, and other applications that require light weight, high pressure gas storage.
Products features
1. Materials: carbon fiber and AA 6061
2. Light weight: weight reduce 70% than steel gas cylinder
3. High pressure: 300bar
4. Corrosion resistance
SinoCleansky is assuring you with guaranteed delivery, approved quality service:
• Cylinder thread is produced according to client’s requests.

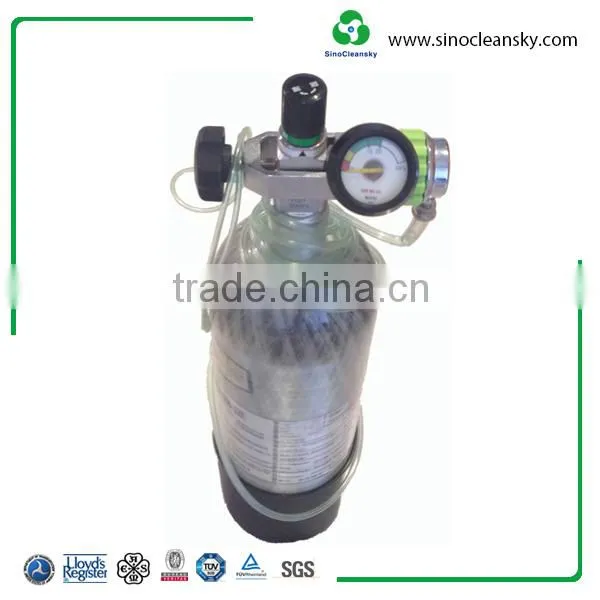

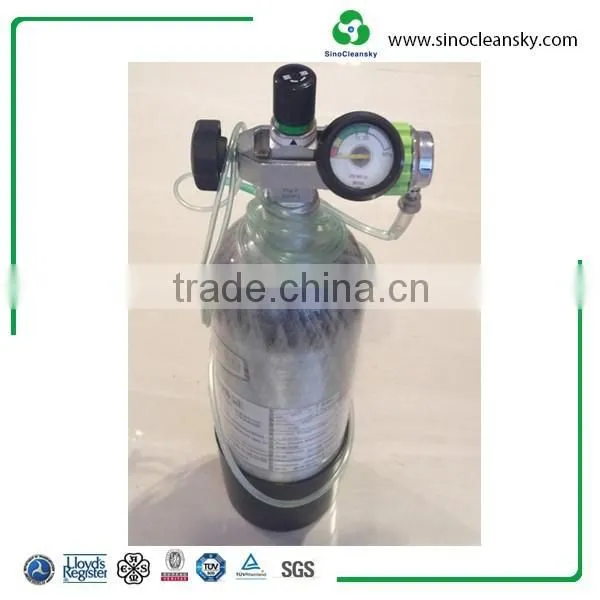

• We not only supply the carbon fiber cylinder and we also can supply the complete SCBA set as per client’s requests.
• We also can integrate the valve and regulator to couple with cylinder under client’s requirements.
Main types
Standard |
Model |
Water Capacity (L) |
Outside Diameter (mm) |
Over Length (mm) |
Empty Weight (kg) |
Service Pressure (Mpa) |
Thread |
EN12245 |
EN6.8-30A |
6.8 |
157 |
518 |
3.8 |
30 |
M18X1.5 |
EN12245 |
EN9.0-30A |
9 |
180 |
544 |
5.5 |
30 |
