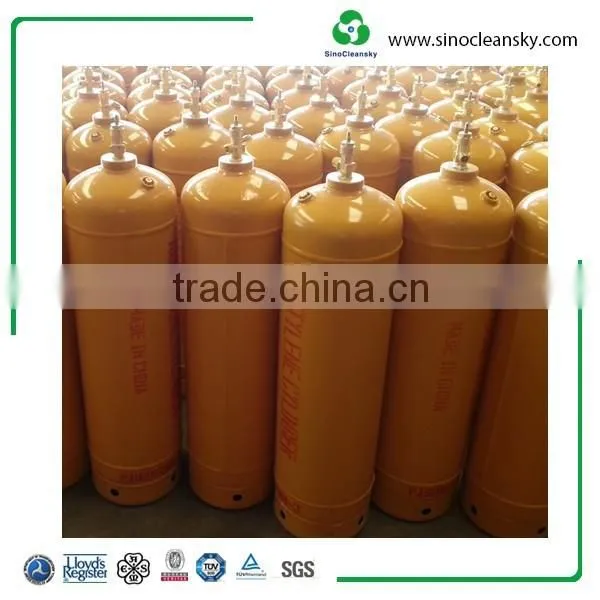

2L - 60L Dissolved Acetylene Gas Cylinder Price for the Best with DOT 8AL
|
Manufacturing STD |
GB11638, DOT-8AL/TC-8WAM |
Outer diameter |
101mm-254mm etc. |
|
Water capacity |
2L-60L |
|
Working pressure |
1.7Mpa, 3.0Mpa |
|
Typical types |
M10(2L), B40(7.6-8.0L), 40L |
Middle and Low Pressure Welded Steel Gas Cylinder
Steel welded cylinder can be used to fill with low pressure liquid gas such as liquefied propane (propylene), liquefied, ammonia, liquefied chlorine and dissolved gas such as acetylene and etc. The dissolved acetylene cylinder of porous solid extender of calcium silicate can be widely used in the departments of cutting, welding, lighting, chemical analysis and military engineering. The products has the advantage of reliable use and safe operation, saving energy, reducing pollution and convernient use and etc. The product made in our company is welded by using fine low-alloy steel sheet and charged with the filling of integral porous calcium silicate with its unique technique and strict quality control. It has the features of high porosity and large capacity and etc. The dissolved acetylene gas cylinder produced in our company is reliable in quality, economic, safe and obtains, the favorable comments of many users. At the same time, we can also provide oxygen cylinders together with the acetylene gas cylinder.
Main types
Standard |
Type |
Inside Diameter (mm) |
Water Capacity V(L) |
Height L(mm) |
Weight W(kg) |
Nominal Wall Thickness S(mm) |
Filling pressure (Mpa) |
GB11638 |
RYL250-40 |
250 |
40 |
1042 |
40.3 |
4 |
1.56 |
Standard |
Type |
Outside Diameter (mm) |
Water Capacity V(L) |
Height (without valve) L(mm) |
Weight W(kg) |
Design Wall Thickness S(mm) |
Filling pressure (Mpa) |
DOT-8AL/TC-8WAM |
MC10 |
101.6 |
2 |
340 |
3.6 |
1.7 |
1.56 |
DOT-8AL/TC-8WAM |
B40 |
158 |
7.6 |
504 |
11.3 |
2.3 |
1.56 |
ISO3807-1 |
229X4.0-40L |
229 |
40 |
1240 |
56 |
4 |
1.72 Mpa 21℃ |
1.56 Mpa 15℃ |
