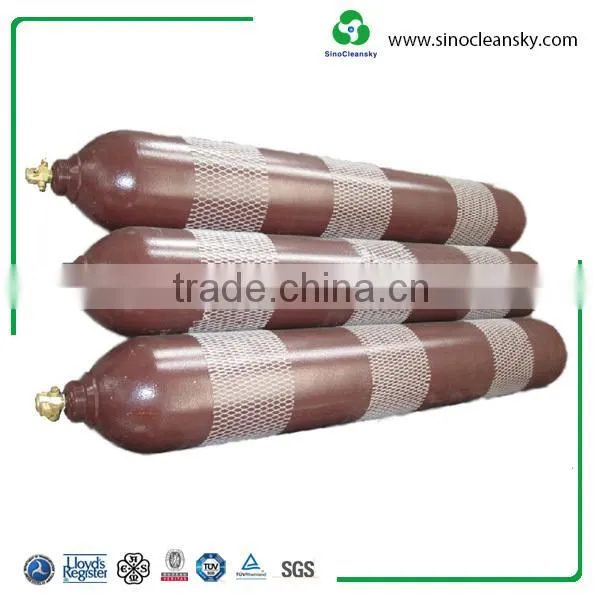

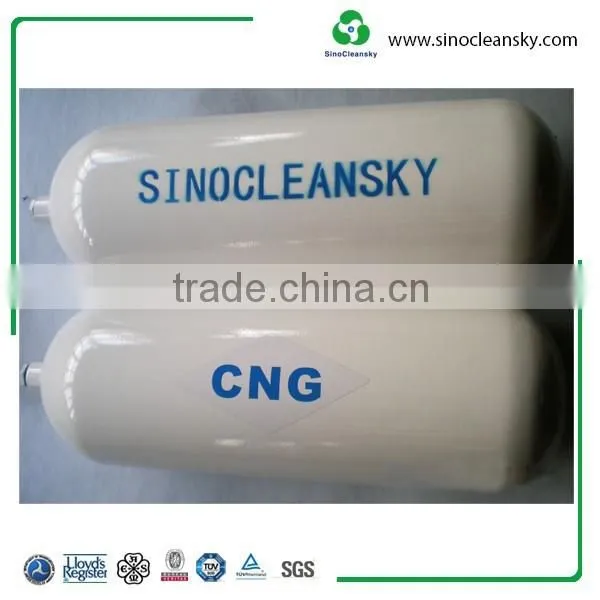

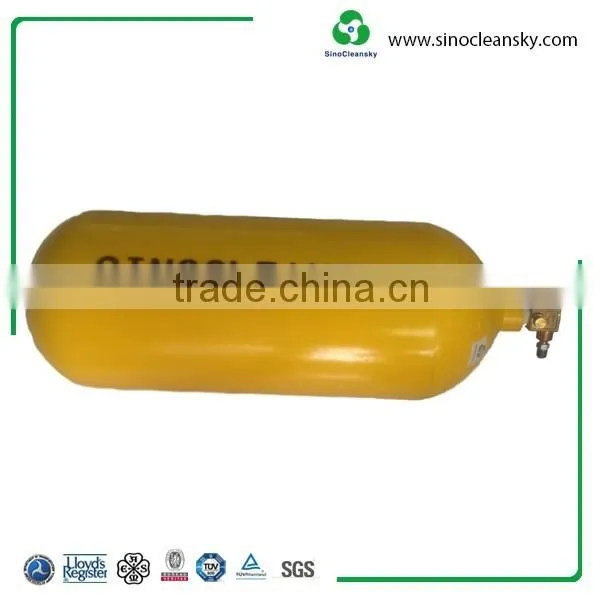

Type 1 CNG Cylinder for Vehicle
|
Manufacturing STD |
ISO11439, ISO9809, NZS5454, NGV2, ECE R110 |
Outer diameter |
165mm, 229mm, 232mm, 273mm, 279mm, 325mm, 356mm, 406mm |
|
Water capacity |
7L-200L |
|
Working pressure |
20MPA |
|
Material |
34CrMo4 / 30CrMo |
CNG Cylinder

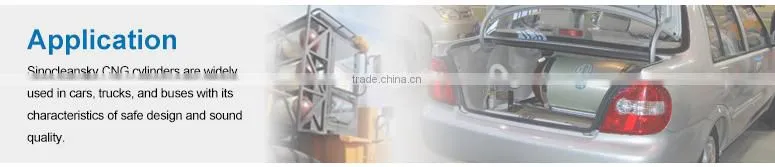

SinoCleansky specializes in providing a comprehensive solution of NGV, covering various products and services. Particularly, SinoCleansky has a strong advantage in providing the essential part of NGV, the high pressure CNG cylinder, which is used to store the compressed natural gas on board the vehicle or as back-up storage as cascade cylinders. SinoCleansky CNG cylinders are manufactured as per different international standards, principally ISO11439, NZS5454, NGV2-2000 and etc. Our productions have been certified by the international third-party authorities including LRS, BV, SGS, DOT etc.If you focus on CNG steel cylinder, especially for CNG type 1 cylinder, SinoCleansky will be your excellent professional supplier.

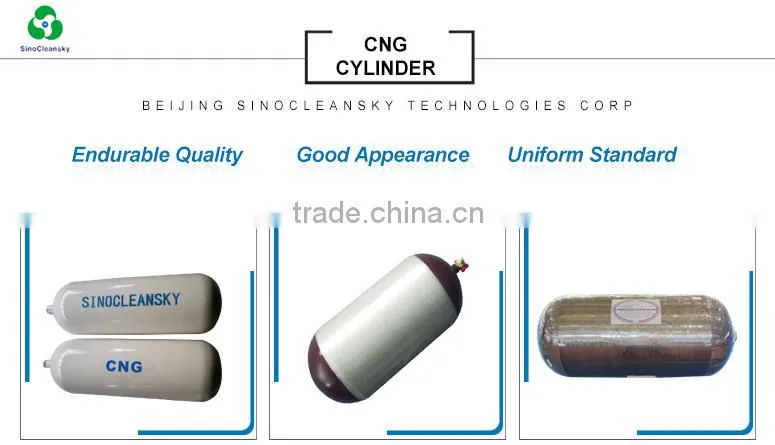

Type I CNG steel cylinder for vehicle
Type II CNG composite cylinder for vehicle (steel liner hoop-wrapped with glass fiber)
Type III CNG composite cylinder for vehicle (aluminum liner fully-wrapped with carbon fiber)
CNG storage cylinder for cascade, both type I and type II and type III
Main types
Standard |
Type |
Outside Diameter (mm) |
Water Capacity (L) |
Height (mm) |
Weight (kg) |
Service Pressure (MPa) |
Design Wall Thickness (mm) |
Material |
ISO11439 |
ISO232-20 |
232 |
20 |
650 |
27 |
20 |
5.9 |
34CrMo4 |
ISO11439 |
ISO232-28 |
232 |
28 |
870 |
36 |
20 |
5.9 |
34CrMo4 |
ISO11439 |
ISO273-40 |
273 |
40 |
910 |
50 |
20 |
6.6 |
34CrMo4 |
ISO11439 |
ISO356-57D |
356 |
57 |
795 |
70 |
20 |
7.7 |
34CrMo4 |
ISO11439 |
ISO356-65D |
356 |
65 |
885 |
78 |
20 |
7.7 |
34CrMo4 |
ISO11439 |
ISO356-75D |
356 |
75 |
995 |
87 |
20 |
7.7 |
34CrMo4 |
ISO11439 |
ISO356-113D |
356 |
113 |
1410 |
117 |
20 |
7.7 |
34CrMo4 |
ISO11439 |
ISO356-145D |
356 |
145 |
1770 |
144 |
20 |
7.7 |
34CrMo4 |
ISO11439 |
ISO406-90D |
406 |
90 |
940 |
107 |
20 |
8.8 |
34CrMo4 |
ISO11439 |
ISO406-100D |
406 |
100 |
1025 |
115 |
20 |
8.8 |
34CrMo4 |
NZS5454 |
NZ232-22 |
232 |
28 |
870 |
36 |
20 |
5.9 |
34CrMo4 |
NZS5454 |
NZ273-50 |
273 |
50 |
1105 |
59.5 |
20 |
6.6 |
34CrMo4 |
NZS5454 |
NZ325-55 |
325 |
55 |
930 |
65 |
20 |
7.0 |
34CrMo4 |
NZS5454 |
NZ325-60 |
325 |
60 |
995 |
70 |
20 |
7.0 |
34CrMo4 |
ECE R110 |
CNG232-20 |
232 |
20 |
650 |
27 |
20 |
5.9 |
34CrMo4 |
ECE R110 |
CNG232-28 |
232 |
28 |
870 |
36 |
20 |
5.9 |
34CrMo4 |
ECE R110 |
CNG273-40 |
273 |
40 |
910 |
50 |
20 |
6.6 |
34CrMo4 |
ECE R110 |
CNG356-57D |
356 |
57 |
795 |
70 |
20 |
7.7 |
34CrMo4 |
ECE R110 |
CNG356-65D |
356 |
65 |
885 |
78 |
20 |
7.7 |
34CrMo4 |
ECE R110 |
CNG356-75D |
356 |
75 |
995 |
87 |
20 |
7.7 |
34CrMo4 |
ECE R110 |
CNG356-113D |
356 |
113 |
1410 |
117 |
20 |
7.7 |
34CrMo4 |
ECE R110 |
CNG356-145D |
356 |
145 |
1770 |
144 |
20 |
7.7 |
34CrMo4 |
ECE R110 |
CNG406-90D |
406 |
90 |
940 |
107 |
20 |
8.8 |
34CrMo4 |
ECE R110 |
CNG406-100D |
406 |
100 |
1025 |
115 |
20 |
8.8 |
34CrMo4 |
