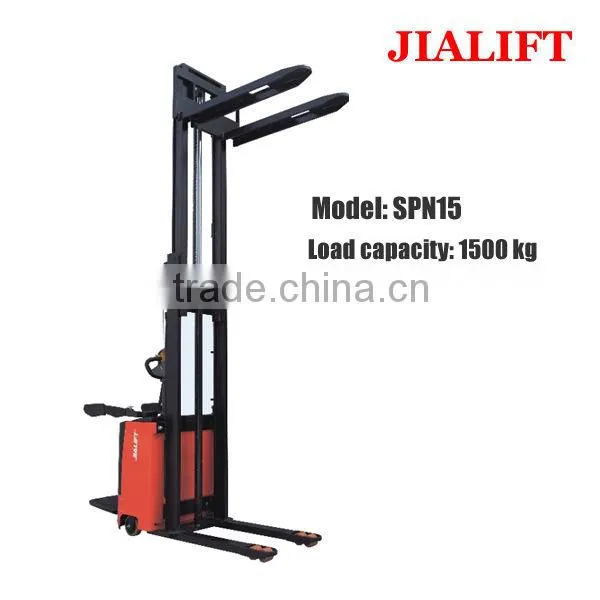

1500KG Professional Semi-electric Stacker SPN15

FOB Price

US$ 930 - 1,290 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	JIALIFT	Model Number	SPN10
Type	Other, semi electric stacker	Power Souce	DC Motor
Rated Loading Capacity	1000kg	Max. Lifting Height	3500mm
Min. Lifting Height	85mm	Fork Length	900/1100mm
Fork Width	150mm	After-sales Service Provided	Engineers available to service machinery overseas

Scientific design with strong steel construction.
Simple and convenient lifting operating system.

Product Description

The specification of Semi electric stacker spn10

Identification	1.1	Model		SPN1016	SPN1020	SPN1025	SPN1030		SPN1035
	1.2	Operate type		Pedestrian
	1.3	Drive		Electric
	1.4	Load capacity	kg	1000
	1.5	Load capacity. Fork’s highest point		1000	800	700	600	500
	1.6	Load center distance	mm	450
Weight	2.1	Service weight	kg	362	366	374	398	442
Wheels	3.1	Tyres		PA
	3.2	Axle loading, laden rear	mm	Φ180×50, 2 pcs
	3.3	Axle loading, laden front	mm	Φ74×70, 2 pcs
Size	4.1	Lift height	mm	1600	2000	2500	3000		3500
	4.2	Height lowered fork	mm	85
	4.3	Overall length	mm	1600/1800
	4.4	Overall width	mm	760
	4.5	Fork length	mm	900/1100
	4.6	Outside width	mm	Short leg truck 550-830, wide leg truck 330-640
	4.7	Single fork width	mm	150
	4.8	Turning radius	mm	1350
Performance data	5.1	Lift speed, laden/unladen	m/s	84/133
	5.2	Lowering speed. Laden/unladen	m/s	94/72
	5.3	Service brake		Wheel brake
E-motor	6.1	Lift motor	kw	1.5
	6.2	Battery voltage, nominal capacity	V/Ah	12/120
	6.3	Battery type		Industrial battery

Details

Safety and durability air plug Pressure defense castor frame

Brake is light and fast Long-lived preumatic spring
