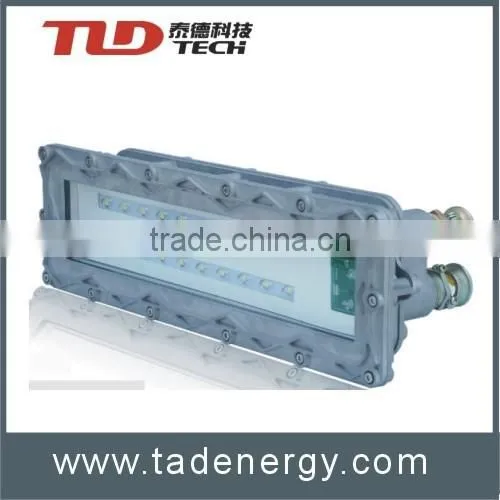

Help CenterEmergengy Explosion-proof Lamp of Roadway
Related Products

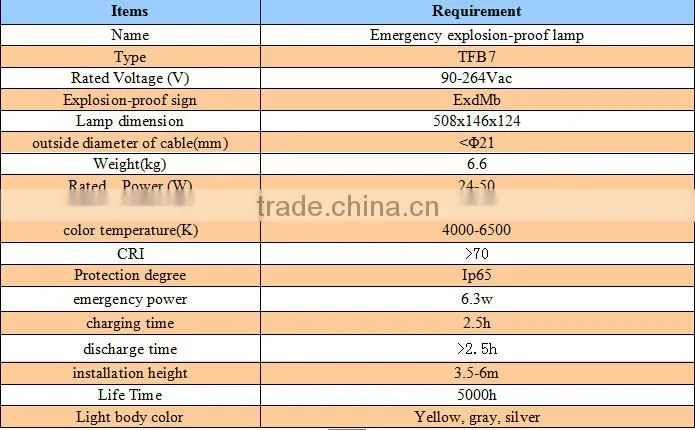

A.Product Parameter
B. product application
1.This product is used in explosive gas environment, explosive dust places;
2.Chemical industry, mines and other dangerous places lighting.
C.Characteristic
1. The shell is made of cast aluminum alloy die casting, molding surface treatment, with good heat dissipation.
2. The use of anti-7 Joule energy impact glass and anti-glare design .
3. seals with high temperature, anti-aging silicone rubber, has a good waterproof and dustproof performance.
4. The independent cooling structure design, power and light and less heat overlap, reduce light chamber, power chamber temperature to ensure lamp life.

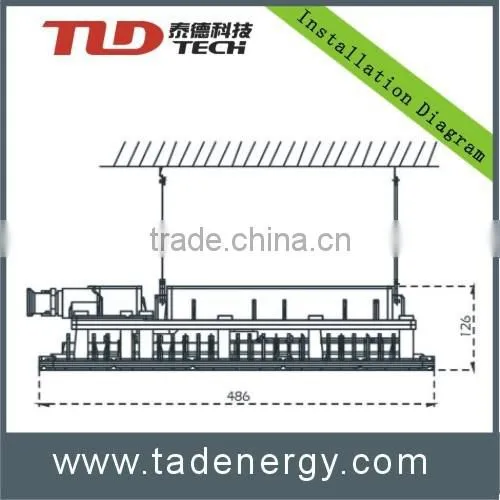

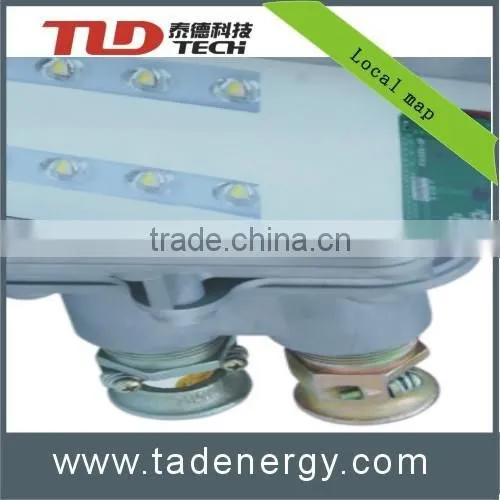

5. The independent wiring chamber designed to achieve diversification and flexible installation, easy installation and maintenance.
6. Maximum 50W dissipation area and the thermal capacity of the design, the effective realization of flexibility power design.

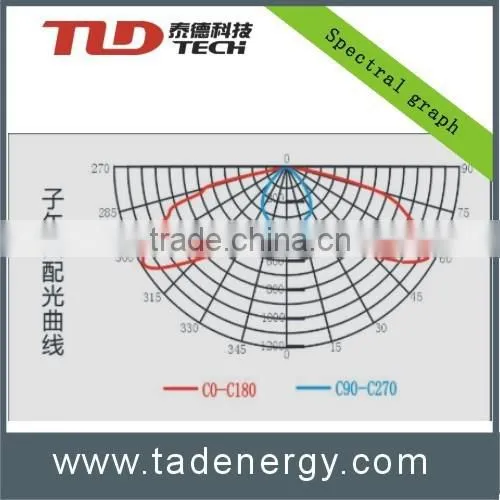

7. Using 60 ° X135 ° lens, form a matrix spot light focus, adapt mine tunnel and plant lighting, light angle adjustable;
8. Lamp Explosion coplanar 3, to meet the requirements of GB3836.
9. The use of CREE.OSRAM other famous international brands, wide input voltage range: 90 ~ 264Vac, power efficiency> 85%, PF> 0.95
10. The high reflectivity film effectively reduce flux consumption, to achieve the overall high luminous efficiency;
11. We wait for light efficiency 101Lm / W, higher than similar proof LED lamps light efficiency 30% -50%, thus achieving power than comparable LED explosion proof lights 30%
12. Emergency unique patent offensive, can only discharge switching circuit design and design can guarantee two hours of emergency lighting;
13. The use of 5 m range microwave radar sensor control, to extend the emergency lighting time, to achieve an additional 20% power saving.
D.Quality Control
1. Laboratory Test
a. Ultra-high-precision fixtures for optoelectronic integrated test system:
b. LED power driver test equipment:
c. Conventional electrical performance test equipment:
d. Environment test:
E. LED illuminate
The main technical parameters:
| Power | Curren(mA) | Voltage(V) | Flux(lm) | CCT(k) | CRI | Lamp Luminous Efficiency(lm/w) | Picture |
| 3W | 300 | 9~10 | 280 | 6000 | Ra75 | >90 | |
| 4W | 300 | 12~13.5 | 370 | 6000 | Ra75 | >90 | |
| 5W | 300 | 15~17.5 | 450 | 6000 | Ra75 | >90 | |
| 7W | 300 | 21~24.5 | 650 | 6000 | Ra75 | >90 | |
| 9W | 300 | 27~31.5 | 820 | 6000 | Ra75 | >90 | |
| 10W | 300 | 30~35 | 900 | 6000 | Ra75 | >90 | |
| 15W | 750 | 18~21 | 1500 | 6000 | Ra75 | >90 | |
| 20W | 600 | 30~35 | 1800 | 6000 | Ra75 | >90 | |
| 30W | 750 | 36~42 | 3200 | 6000 | Ra75 | >90 |
| Type | Current(mA) | Voltage(V) | Flux(lm) | CCT | CRI | Lamp Luninou Efficeiency(lm/w) |
| 3528 | 20 | 3.0~3.4 | 7~9 | 6000 | 80 | 130 |
| 3014 | 30 | 3.0~3.4 | 9~11 | 6000 | 80 | 130 |
| 2835 | 40 | 3.0~3.4 | 14~17 | 6000 | 80 | 140 |
| 5050 | 60 | 3.0~3.4 | 18~22 | 6000 | 80 | 130 |
Our workshop
