Home > Products > Explosion-proof lamp > DGS50Ex Mine Radar Induction Flame-proof LED Laneway Lamp Tunnel Lamp, Explosion-proof Lamp
DGS50Ex Mine Radar Induction Flame-proof LED Laneway Lamp Tunnel Lamp, Explosion-proof Lamp
- China main port
- T/T
- 2 days
You May Like
-
ASTTAR K-SB60 CE Certified Oxygen Self-rescue Masks, SCSR, PPE Equipment
-
ATEX Underground Miners Lamp Rechargeable Exproof Headlamp Kl1.2ex
-
Rechargeable Wireless LED Mining Headlamp for Potentially Explosive Environments
-
Atex CE 6ah 7000lux IP65 Mining Industrial Use Explosion Proof LED Headlamp
-
Atex IP65 Coal Mining Safety LED Headlamp Helmet Lamp
-
Atex CE 6ah Ex I M1 Ex Ia I Ma LED Exproof Coal Miner Lamp
Product Details
| Brand Name | ASTTAR | Place of Origin | China | |
| Model Number | DGS50Ex | Certification | CE | |
| Emitting Color | White | IP Rating | IP66 | |
| Color Temperature(CCT) | Pure White | Lamp Luminous Efficiency(lm/w) | >85% | |
| Lamp Luminous Flux(lm) | >4150 | Lamp Power(W) | 50 | |
| Input Voltage(V) | 85-265 | Working Lifetime(Hour) | 50000 | |
| CRI (Ra>) | 65 | Working Temperature(℃) | 5500, 6500 | |
| LED Light Source | 3535 High power lamp bead |
Product Description

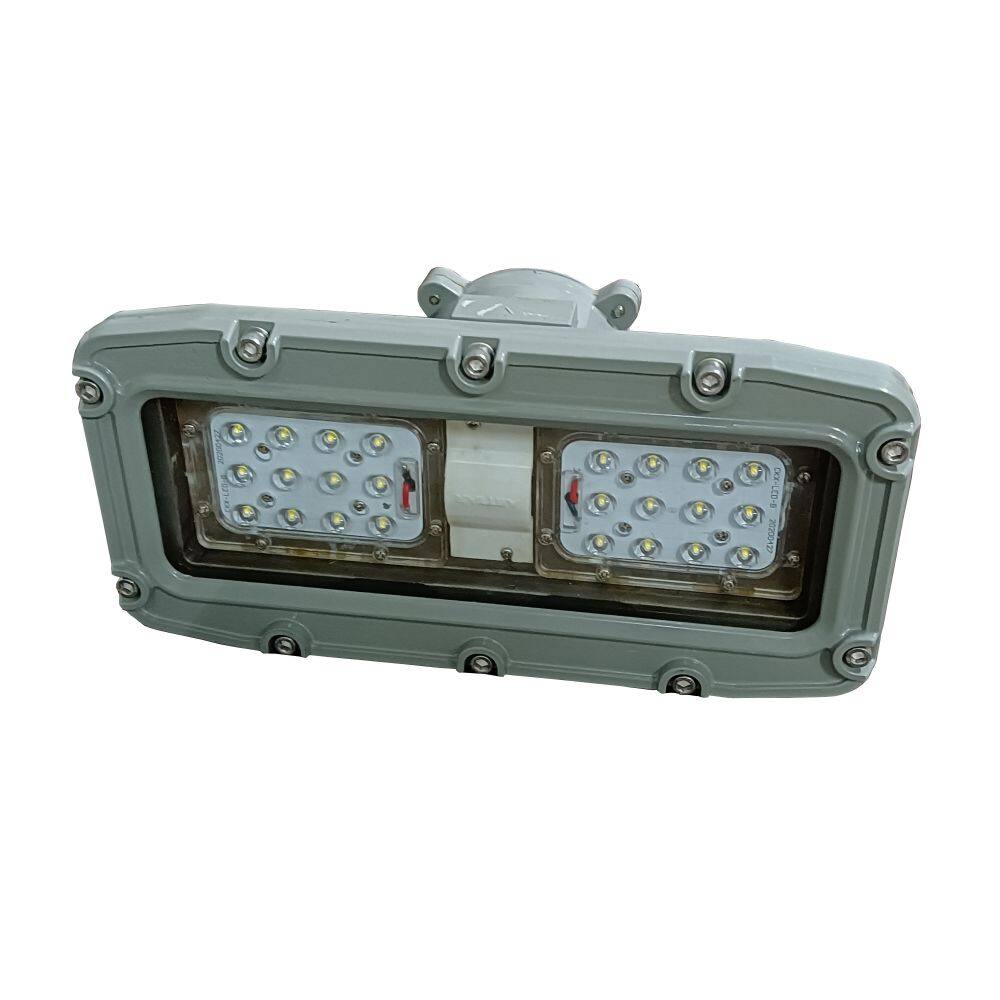

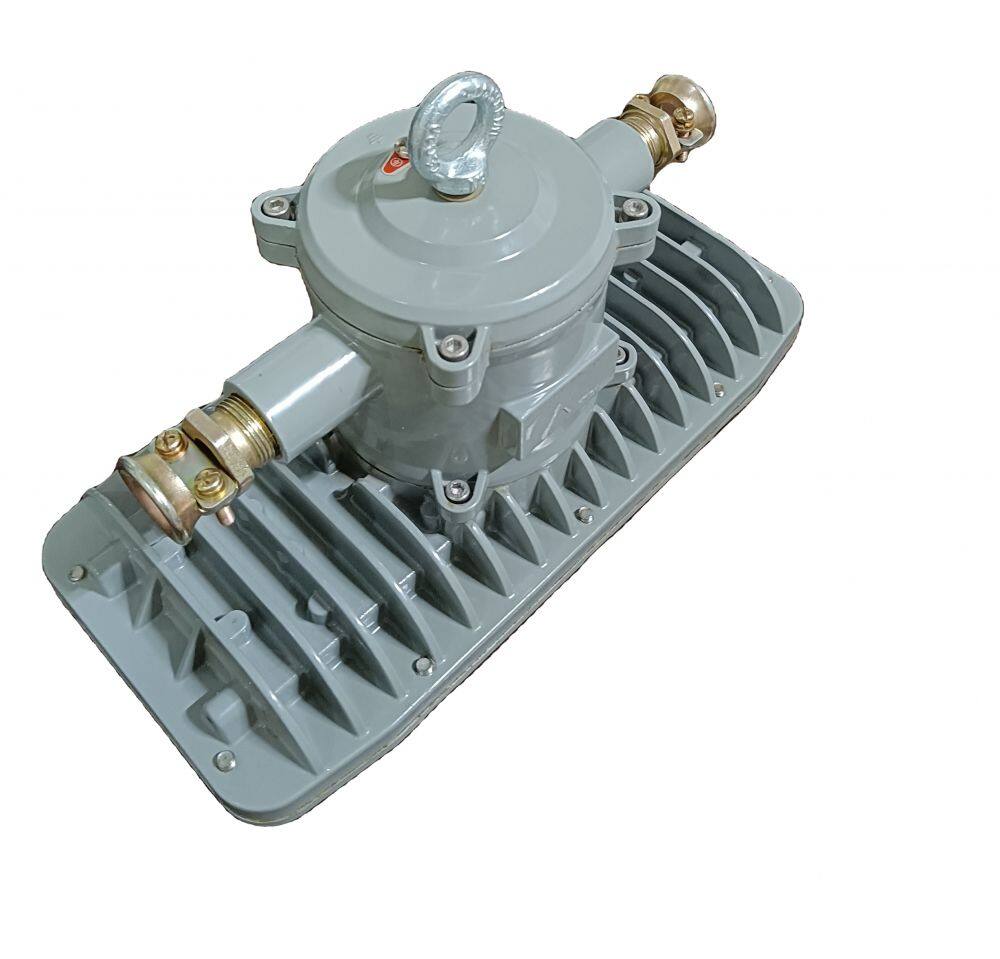

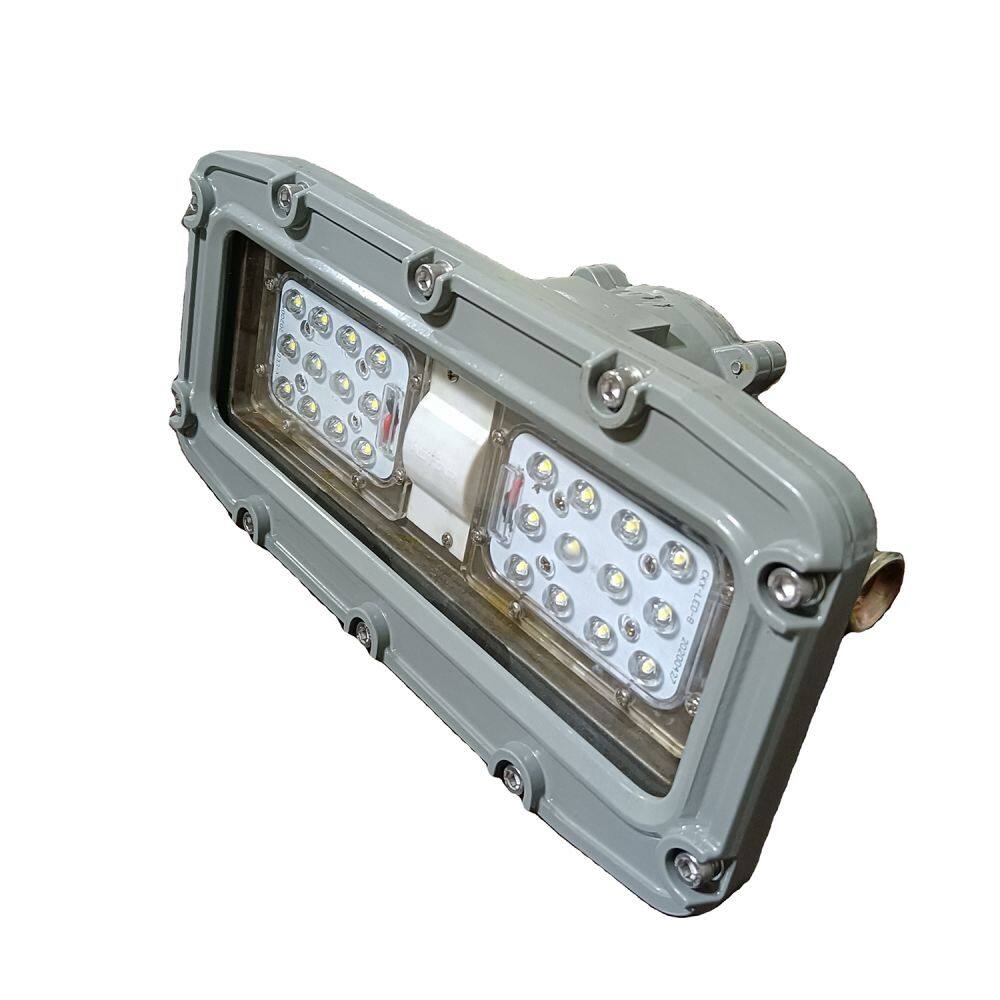

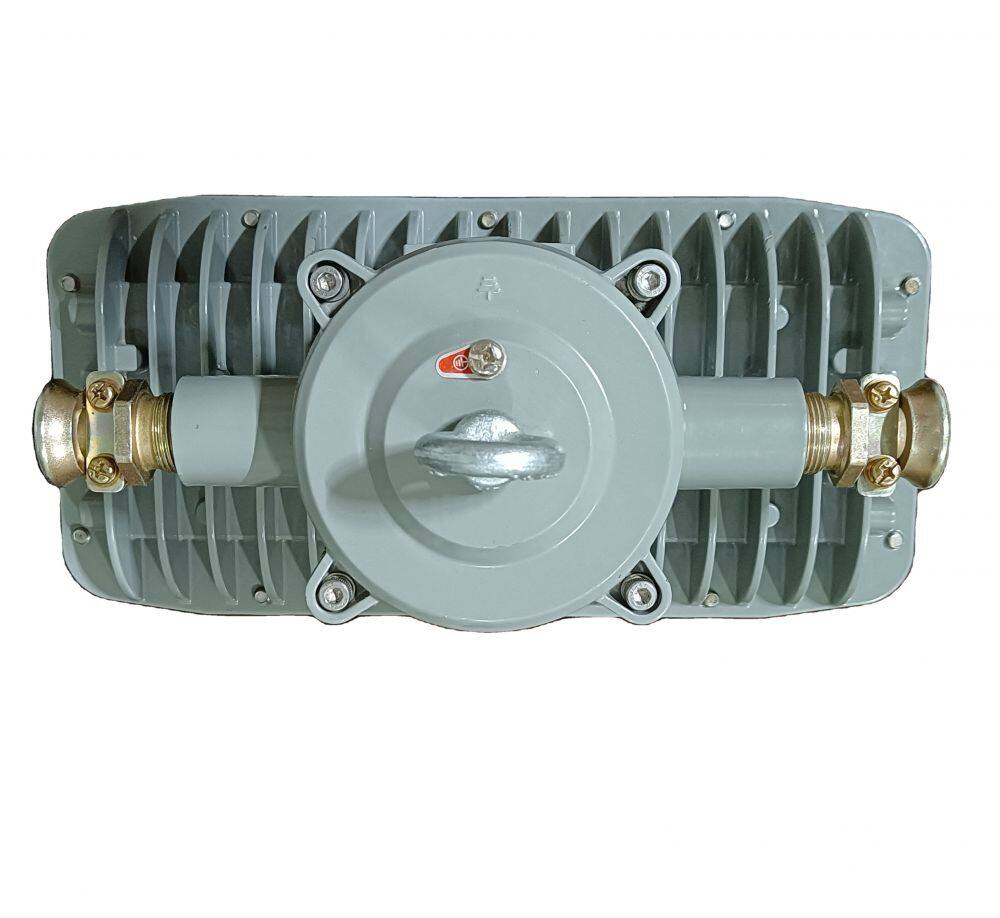

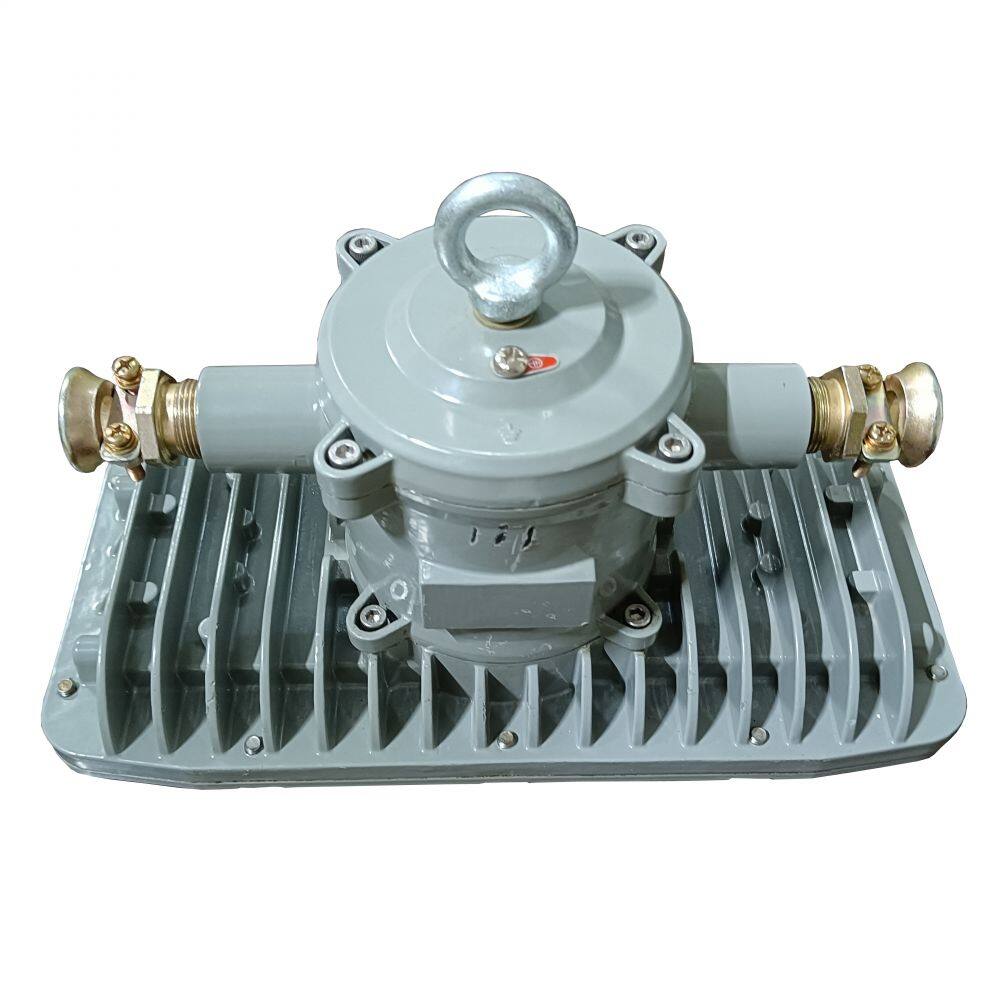

DGS50Ex mine radar induction flame-proof LED Laneway Lamp
Features & applications
DGS50Ex mine radar induction flame-proof LED Laneway Lamp adopts the flame proof design. The LED is driven by constant-current driving power, with power input of 85-265V; lamp adopts radar microwave induction to adjust the luminosity according to actual working condition in both of micro power and full power mode. The lamp transparent parts adopt toughened glass, to make sure high transmittance and meet the impact strength requirements. The shell of the lamp is casted of ZG35 to ensure the flameproof surface accuracy after machining, and then to meet explosion-proof strength requirements. The light source uses 3535 high power LED, which is with features of high luminous efficiency, high color-rendering index and long service life.
This product has excellent explosion-proof performance ,and it is suitable as fixed lighting at the underground coal mine,underground chamber etc. Places with methane and coal dust explosion hazard in a three-phase AC 127V neutral-grounded power grid.
Technical parameters
Model | DGS50Ex | |
Input voltage | 85-265V | |
Rated working voltage | AC127 V | |
Frequency | (50-60) Hz | |
Rated power | 50W | |
Micro power | 10W | |
Full power | 50W | |
Illuminance (3 meters) | ≥60 Lx | |
Luminous flux | >4150LM | |
luminous efficacy | >85% | |
Color rendering index | >65 | |
Working system | Continuous | |
Shell material | ZG35 cast steel | |
Flameproof type | Ex d I Mb | |
Protection level | IP66 | |
Color temperature | (5500-6500)K | |
Lifetime | 50000h | |
Executive Standard | IEC/EN60079-0, IEC/EN60079-1 | |
Dimensions(L×W×H) | 310mm×150mm×186mm | |
Weight | 8.2kg | |
Radar parameters | thermal ignition time | 50µS |
Pulse time | 2µS | |
200µJ | ||
Maximum detection distance | 7m | |
With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 28 years’ experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We trade as "GOKANG" brand (former brand, since1995) and "ASTTAR" brand (since 2017).
We mainly export products of three categories:
1. Mining underground rescue product
2. Mining explosion-proof lamp
3. Mining explosion-proof instrument and meter
Our main products:
1. Mining self-rescuer
2. LED miner's cap lamp
3. LED Flame-proof laneway lamp
4. Mechanical and electronic anemometer
5. Isolated positive pressure oxygen breathing apparatus
6. Automatic resuscitator
7. Optical interference type methane detector
8. Infrared thermometer
9. Laser distance meter
10. Laser guider
