Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > XLPE Marine Meter Cable

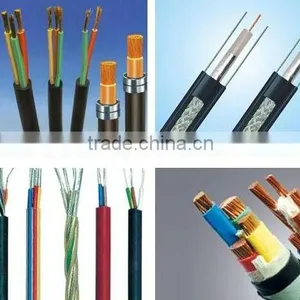

XLPE Marine Meter Cable

Name: XLPE Marine Meter Cable
Brand: New Baofeng
SKU: 119879545
Availability: InStock

US$ 0.2 - 1.4 MOQ: 1000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

New Baofeng

Model Number:

CHJ86/SC

Contact Supplier Request Quote Chat Now

Hebei New Baofeng Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name New Baofeng

Model Number CHJ86/SC

Insulation Material XLPE

Type Low Voltage

Application Marine

Conductor Material Copper

Jacket PVC

Specifications

marine meter cable
1. CE.CCC.KEMA.etc
2. ICE. customized
3. More than 30 years experiences on cable

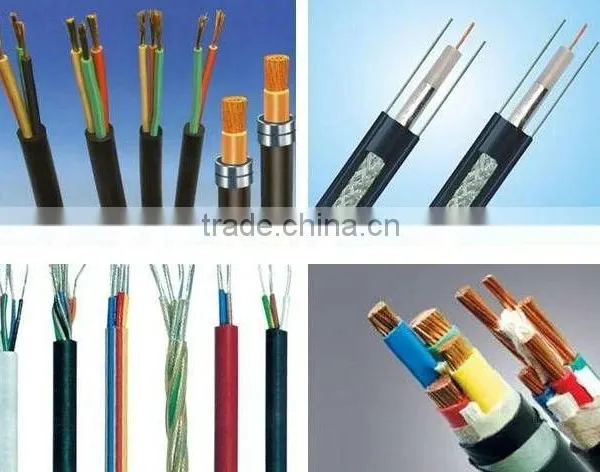

XLPE insulated marine meter cable

Product standard

IEC 60092—350, IEC 60092—376, IEC60332—3—22, IEC 60754, IEC 61034

Application

The cable is intended for telecommunication, instrumentation and information proceeding systems of ships, petrol platforms and offshore buildings, and it is also available to metallurgical industry, chemical works, power plant and mine etc.

Conductor: Tinned or plain copper wire

Insulation: XLPE

Individual screen: Al/polyester tape with a tinned; copper drain wire or tinned/plain ; copper wire braid

Inner covering: Tape

Screen/Armor : Tinned or plain copper wire braid

Outersheath: PO

*Product marking

Manufacture’s name, type, spec., rated voltage, length, etc.

**Core identification

White+printed number

Blue +printed number

Red+printed number

Number×2(3) ×nominal cross- sectional area (mm²)	CHJ86/SC			CHJPF86/SC CHJPJ85/SC			CHJP86/SC			CHJPFP86/SC CHJPJP85/SC
	Calculated diameter (mm)		Calculated mass (kg/km)	Calculated diameter (mm)		Calculated mass (kg/km)	Calculated diameter (mm)		Calculated mass (kg/km)	Calculated diameter (mm)		Calculated mass (kg/km)
	nom.	max.	Calculated mass (kg/km)	nom.	max.	Calculated mass (kg/km)	nom.	max.	Calculated mass (kg/km)	nom.	max.	Calculated mass (kg/km)
1×2×0.75	7.7	8.6	81	9.3	10.5	118	--	--	--	--	--	--
2×2×0.75	10.6	12.0	134	12.4	14.0	187	11.2	12.5	162	13.0	14.5	204
3×2×0.75	11.1	12.5	159	12.9	14.5	214	12.0	13.5	204	13.6	15.0	243
4×2×0.75	12.2	13.5	194	13.8	15.5	247	13.0	14.5	246	14.8	16.0	293
5×2×0.75	13.2	14.5	224	15.0	16.5	287	14.7	16.0	329	16.3	18.0	378
7×2×0.75	14.9	16.5	315	16.7	18.5	390	15.8	17.5	406	17.6	19.5	465
8×2×0.75	16.5	18.0	357	18.5	20.0	447	17.7	19.5	469	19.5	21.0	534
10×2×0.75	18.6	20.5	431	20.4	22.0	521	19.8	21.5	560	22.0	24.0	651
12×2×0.75	19.1	21.0	477	21.3	23.0	589	20.6	22.5	638	22.6	24.5	722
14×2×0.75	20.2	22.0	537	22.2	24.0	644	21.5	23.5	713	23.5	25.5	801
16×2×0.75	21.2	23.0	590	23.2	25.0	702	22.6	24.5	790	24.8	27.0	893
19×2×0.75	22.2	24.0	662	24.4	26.5	790	23.9	26.0	908	26.1	28.0	1015
24×2×0.75	26.1	28.0	833	28.3	30.5	981	27.8	30.0	1130	30.4	32.5	1279
1×3×0.75	8.0	9.0	94	9.6	11.0	132	--	--	--	--	--	--
2×3×0.75	11.8	13.0	170	13.4	15.0	221	12.4	14.0	199	14.0	15.5	239
4×3×0.75	13.5	15.0	245	15.3	17.0	310	14.9	16.5	341	16.7	18.5	396
7×3×0.75	16.4	18.0	403	18.4	20.0	493	17.6	19.0	504	19.4	21.0	569
10×3×0.75	20.8	22.5	565	22.8	24.5	675	22.1	24.0	697	24.3	26.0	798
