Specifications
control cable for ship1.IEC 60092aa350, IEC 60092aa376, IEC 60332aa3aa22, IEC 61034, IEC 60754
2.More than 30 years on cable
XLPE insulated Control Cable for Ship
1. Product standard
IEC 60092—350, IEC 60092—376, IEC 60332—3—22, IEC 61034, IEC 60754
2. Application
The cable is intended for control systems of ships, petrol platforms and offshore buildings, and it is also available to metallurgical industry, chemical works, power plant and mine etc.

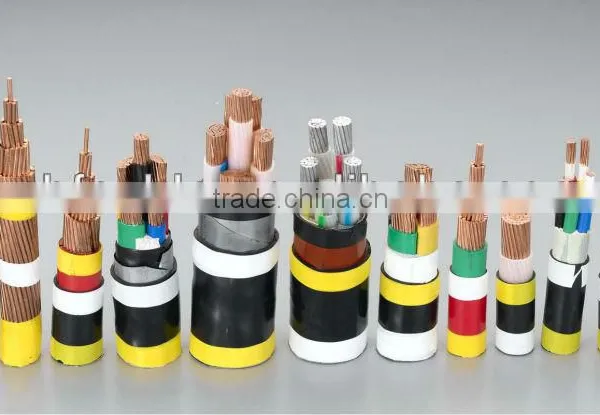

3. Structure
1)Conductor :Tinned or plain copper wire
2)Insulation : XLPE
3)Inner covering : Tape
4)Screen/Armor : Tinned or plain copper wire braid
5)Outersheath : PO
*Product marking
Manufacture’s name, type, spec., rated voltage, length, etc.
**Core identification
Color or printed number
|
No.of cores×nominal cross- sectional area (mm2) |
CKJ86/SC |
CKJPF86/SC CKJPJ85/SC |
CKJPFP86/SC CKJPJP85/SC |
||||||
|
Calculated Diameter (mm) |
Calculated Mass (kg/km) |
Calculated diameter (mm) |
Calculated Mass (kg/km) |
Calculated diameter (mm) |
Calculated Mass (kg/km) |
||||
nom. |
Max. |
nom. |
Max. |
nom. |
Max. |
||||
2×0.75 |
7.7 |
8.6 |
80 |
9.3 |
10.5 |
105 |
10.5 |
12.0 |
136 |
3×0.75 |
8.0 |
9.0 |
93 |
9.6 |
11.0 |
119 |
10.9 |
12.0 |
158 |
4×0.75 |
8.6 |
9.6 |
109 |
10.2 |
11.5 |
136 |
11.8 |
13.0 |
190 |
5×0.75 |
9.4 |
10.5 |
128 |
10.8 |
12.0 |
154 |
12.8 |
14.0 |
221 |
7×0.75 |
10.0 |
11.5 |
154 |
11.6 |
13.0 |
186 |
14.1 |
15.5 |
299 |
8×0.75 |
11.0 |
12.5 |
174 |
12.8 |
14.0 |
214 |
15.5 |
17.0 |
343 |
10×0.75 |
12.3 |
13.5 |
211 |
14.4 |
16.0 |
283 |
17.2 |
19.0 |
409 |
12×0.75 |
12.6 |
14.0 |
234 |
14.7 |
16.0 |
308 |
17.6 |
19.5 |
450 |
14×0.75 |
13.2 |
14.5 |
259 |
15.5 |
17.0 |
342 |
18.5 |
20.0 |
503 |
16×0.75 |
13.8 |
15.0 |
284 |
16.1 |
17.5 |
372 |
19.3 |
21.0 |
551 |
19×0.75 |
15.1 |
16.5 |
362 |
16.9 |
18.5 |
417 |
20.1 |
22.0 |
616 |
24×0.75 |
17.4 |
19.0 |
448 |
19.2 |
21.0 |
511 |
23.2 |
25.0 |
767 |
27×0.75 |
17.7 |
19.5 |
481 |
19.5 |
21.5 |
545 |
23.6 |
25.5 |
824 |
30×0.75 |
18.3 |
20.0 |
517 |
20.1 |
22.0 |
583 |
24.5 |
26.5 |
898 |
33×0.75 |
18.9 |
20.5 |
554 |
21.1 |
23.0 |
639 |
25.3 |
27.5 |
963 |
37×0.75 |
19.5 |
21.0 |
601 |
21.7 |
23.5 |
689 |
26.3 |
28.5 |
1055 |
2×1 |
8.1 |
9.2 |
90 |
9.7 |
11.0 |
115 |
10.9 |
12.0 |
147 |
3×1 |
8.5 |
9.6 |
106 |
10.1 |
11.5 |
132 |
11.4 |
12.5 |
173 |
4×1 |
9.3 |
10.5 |
128 |
10.7 |
12.0 |
152 |
12.3 |
13.5 |
208 |
