One Step Method Silane XLPE Cable/XLPE Cable FromChina/XLPE Cable
US$ 0.2 - 100
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
NewBaoFeng
Type:
Insulated
Payment & Shipping
Payment Methods:
Port of Shipment:
Tanjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
One Step Method Silane XLPE Cable/XLPE Cable FromChina/XLPEUS$ 0.2 - 100MOQ: 500 Meters -
XLPE CABLE/copper Conductor Cable/One Step Method Silane XLPE CableUS$ 1 - 500MOQ: 500 Meters
-
For Saudi Arabia ALUMINUM FOIL SCREENED CONTROL CABLENegotiableMOQ: 1000 Meters
-
Hebei New BF Silicon Rubber Insulated and Sheathed Flexible Control CableUS$ 0.2 - 1.2MOQ: 500 Meters
-
PVC Insulated Copper Cables IEC Standard CableUS$ 1 - 500MOQ: 500 Meters
Place of Origin
Hebei, China
Brand Name
NewBaoFeng
Type
Insulated
Application
Underground
Conductor Material
Copper
Conductor Type
Solid
Insulation Material
Other, XLPE
Specifications
Model NO.:M-GYJV M-GYJLV M-GYJY M-GYJLY M-GYJV22 M-GYJLV22Voltage:Low and Medium Voltage
CableInsulation Material:XLPE
Product Description:
1. One step method silane XL insulated cable
2. One step method silane XL insulated Water-proof termite-proof, rat-proof ultraviolet-resistant Power Cable.
3. One step method silane low-smoke non-halogen type A flame-resistance fire-proof power cable.
4. One step method silane cross-linked ethylene-alkene polymer insulated power cable.
5. The PVC insulated cable has prohibited in European-American countries, the one-step method silane cable is the excellent substitute.
6. Increasing the working temperature of conductor and the temperature in short-circuit.
7. Decreasing the loss of insulation and increasing dielectric strength.
8. The releasing substances in combustion are nontoxic, no halogen, no corrosive.
9. Owing a great number of patent products of one step method silane XL cables.
10. Being awarded Hubei Province high-tech enterprise certificate.
Specifications:
| No. | Type | Name |
| 1 | M-GYJV | One step method silane XLPE insulated, PVC sheathed power cable |
| M-GYJLV | ||
| 2 | M-GYJY | One step method silane XLPE insulated, PE sheathed power cable |
| M-GYJLY | ||
| 3 | M-GYJV22 | One step method silane XLPE insulated, steel tape armored, PVC sheathed power cable |
| M-GYJLV22 | ||
| 4 | M-GYJV23 | One step method silane XLPE insulated, steel tape armored, PE sheathed power cable |
| M-GYJLV23 | ||
| 5 | M-GYJV32 | One step method silane XLPE insulated, fine steel wire armored, PVC sheathed power cable |
| M-GYJLV32 | ||
| 6 | M-GYJV33 | One step method silane XLPE insulated, fine steel wire armored, PE sheathed power cable |
| M-GYJLV33 | ||
| 7 | M-GYJV42 | One step method silane XLPE insulated, thick steel wire armored, PVC sheathed power cable |
| M-GYJLV42 | ||
| 8 | M-GYJV43 | One step method silane XLPE insulated, thick steel wire armored, PE sheathed power cable |
| M-GYJLV43 | ||
| 9 | W(D)DZA-MGYJY | One step method silane XLPE insulated low-smoke low(non) halogen type A flame-resistance power cable |
| W(D)DZA-MGYJLY | ||
| 10 | W(D)DZA-MGYJY23 | One step method silane XLPE insulated steel tape armored low-smoke low(non) halogen type A flame-resistance power cable |
| W(D)DZA-MGYJLY23 | ||
| 11 | W(D)DZA-MGYJY53 | One step method silane XLPE insulated rat-proof armored low-smoke low(non) halogen type A flame-resistance power cable |
| W(D)DZA-MGYJLY53 | ||
| 12 | EV/ELV | One step method silane cross-linked Ethylene-alkene polymer insulated PVC sheathed power cable |
| 13 | EY/ELY | One step method silane cross-linked Ethylene-alkene polymer insulated PE sheathed power cable |
| 14 | EV22/ELV22 | One step method silane cross-linked Ethylene-alkene polymer insulated steel tape armored PVC sheathed power cable |
| 15 | EV23/ELV23 | One step method silane cross-linked Ethylene-alkene polymer insulated steel tape armored PE sheathed power cable |
| 16 | EV32/ELV32 | One step method silane cross-linked Ethylene-alkene polymer insulated fine steel wire armored PVC sheathed power cable |
| 17 | EV33/ELV33 | One step method silane cross-linked Ethylene-alkene polymer insulated fine steel wire armored PE sheathed power cable |
| 18 | EV42/ELV42 | One step method silane cross-linked Ethylene-alkene polymer insulated thick steel wire armored PVC sheathed power cable |
| 19 | EV43/ELV43 | One step method silane cross-linked Ethylene-alkene polymer insulated thick steel wire armored PE sheathed power cable |
Design features The comparison between one step method silane cable and PVC cable:
| No. | Item | PVC plastic cable | One step method silane cable |
| 1 | Working temperature of conductor | 70centigrade | 95centigrade |
| 2 | Carrier current capacity of the same specification cable | I0 | 1.3I0 |
| 3 | Temporary overload temperature and coefficient | (75-100)centigrade | (95-130)centigrade1.04-1.27 |
| 4 | Maximum temperature of conductor in short-circuit | 160centigrade | 260centigrade |
| 5 | Volume resistivity | 10 14 Ω · cm | 10 17 Ω · cm |
| 6 | Dielectric strength | 20KV/mm | 30KV/mm |
| 7 | Medium loss of angle tangent | ≤ 4× 10 -2 | ≤ 4× 10 -4 |
| 8 | Heat stability | Hot plasticity | Hot solidity |
| 9 | Combustion characteristics | Poisonous and corrosive | No halogen, no poison, no corrosive |
| 10 | Service life | 20-30years | 40 years |
| 11 | Outer diameter of the same specification cable | Large | Small |
| 12 | Weight of the same specification cable | Heavy | Light |
The comparison between one step method and two step method XL cable:
| No. | Item | Two step method & other one step method (solid phase) | SILANE 4-Layer extrusion technology |
| 1 | Cooling system | Water trough cooling, water pond XL, no temperature control system | Water trough XL, cooling by lowering temperature step-by-step, accurate temperature control |
| 2 | Charging system | Artificial material mixing, artificial or open feeding | All-closed clean feeding, with drying system |
| 3 | Time for storage | After opening≤ 7 days, | No time limit basically, no overdue pre-XL phenomenon |
| After mixing≤ 24h | |||
| 4 | Ratio between screw arbor length× diameter | 20:01 | 30:01:00 |
| 5 | Material | A material + B material | Thin film grade PE + silane biter |

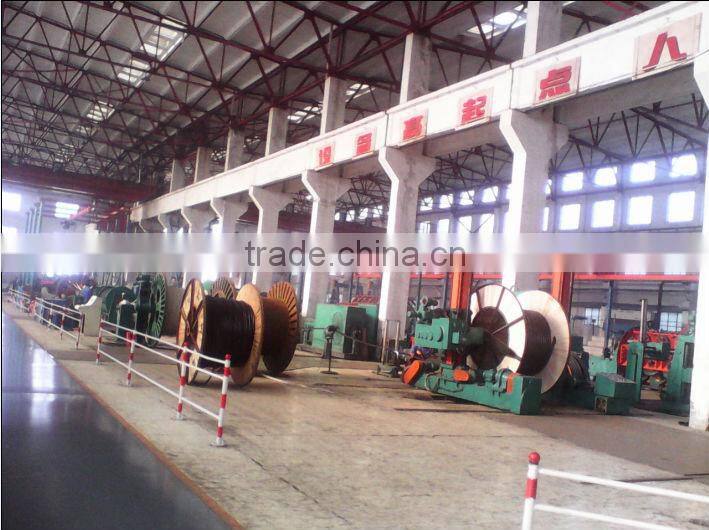

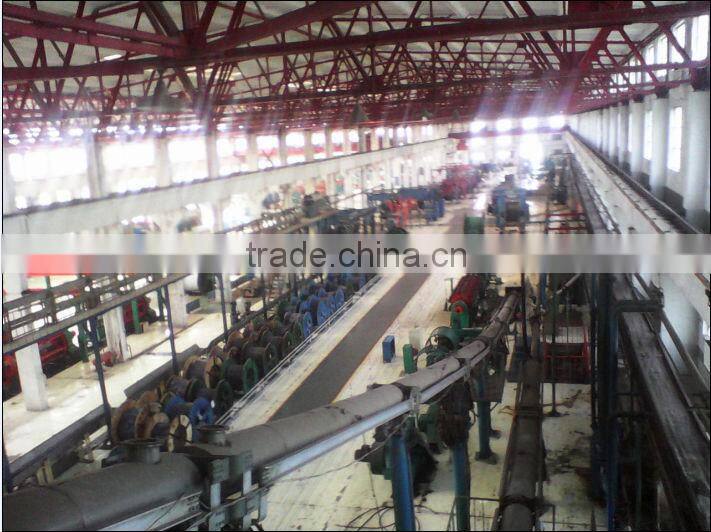

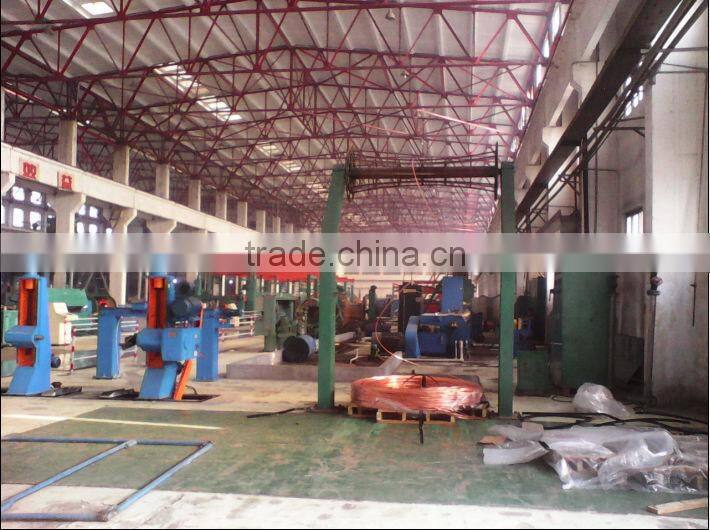

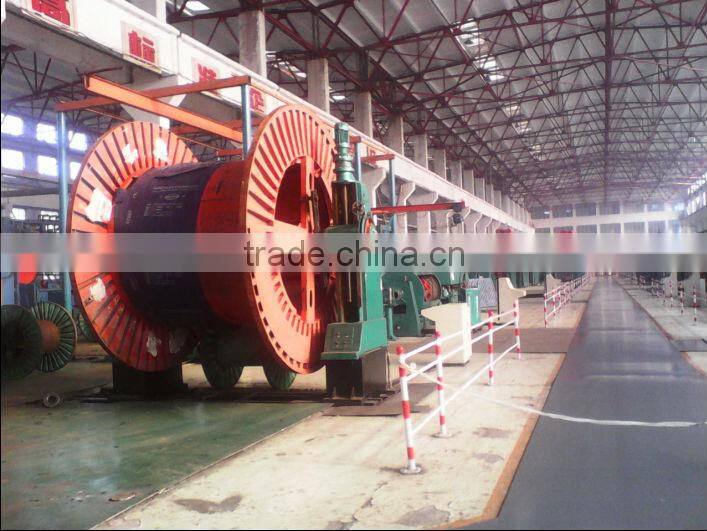

Workshop and Product line:
Package:
Welcome to visit our factory,we will give you the best price and service!!!
