Help CenterNo Halogen Fire Retardant Cable
Related Products
Specifications
Cable:1.CE,ISO,CCC,PCCC...certificate
2.sell in entire world
3.more than 30 years' experience
Cable:
Product Description

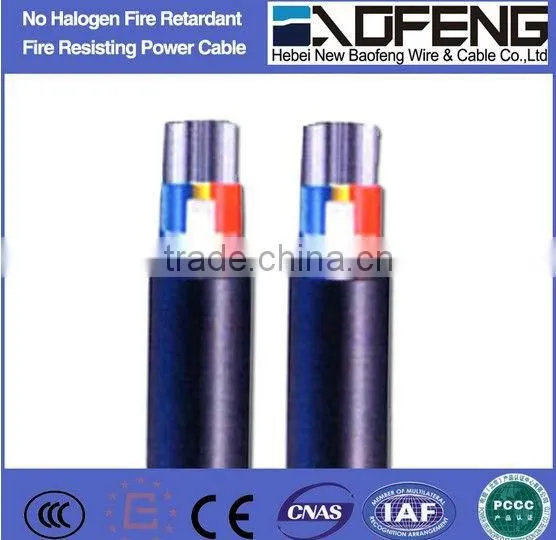

No Halogen Fire Retardant Fire Resisting Power Cable
(1)Application
This product is suitable for AC 0.6/1kV of power frequency or below equipment, fire hazard and fire fighting equipment, emergency passage transportation, lighting, etc emergency facilities where the power supply requires fireproof fields. Particularly it is suitable for subway, under-ground shop, high-rise, intelligence communication building, power station and so on fields with high safe requirements.
(2)Product characteristics
1. With all characteristics of no halogen low smoke fire retardant power cable.
2. Burn at 800 Centigrade and below flame environment, can guarantee to electrify over 180 min. Compared with ordinary cable, its time of fireproof can prolong two times, the safety is better.
(3)Main performance
1. Combustion property
(1)Halogen gases releasing amount test, pH value≥ 4.3, electrical conductivity≤ 10ms/mm
(2)Cable combustion smoking amount test, light transmittance≥ 60%
(3)Cable fireproof test: Pass B kind fireproof test specified in IEC6033 and GB12666.6
(4)Cable fire retardant test: Pass bundling(or B kind or C kind)combustion test specified in IEC 60332 and GB12666.5
2. Electric property

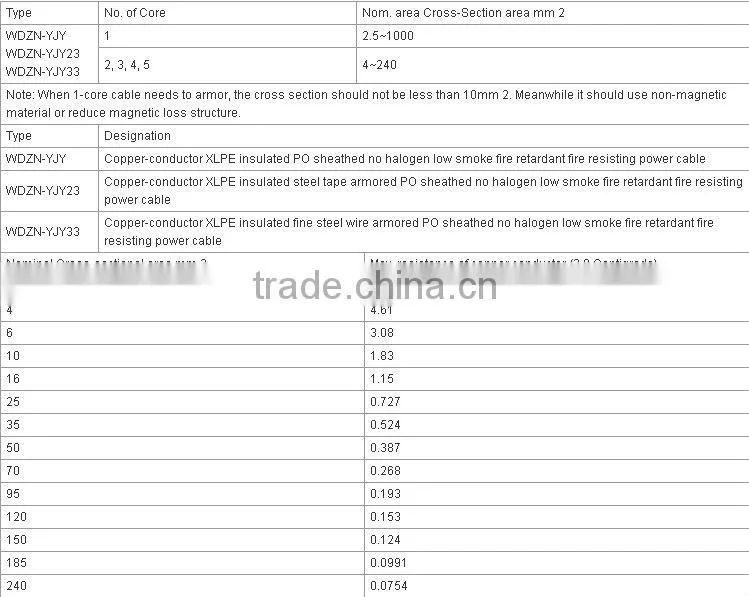

(1)D. C. Conductor resistance complies with the stipulations of the nether table;
(2)Working frequency voltage test for cable with 3500V/5min without puncture.
(3)Constant of insulation resistance at 90 Centigrade
Should not more than 3.67 MΩ. Km.
Milestone
1982 HeBei New Baofeng Cable & Wire Co.,Ltd was founded.
1997 Achieve ISO9001 Quality Certificate.
2001 Successfully developed 500KV 2500sqmm XLPE power cable and got Type Test Certificate.
2004 Got ISO14001 Environment Certificate Got 220KV UG Cable PQ Test.
2007 Got first 500KV power cable EPC order-Longtan Hydropower station.
2008 Got 500KV power cable EPC order--Xuangang Thermal Power Station.
2009 till today Got seven 500KV power cable EPC projects and we are the only 500KV cable and accessories manufacturer in China.
