Specifications
450/750V wire:1.CE,ISO,CCC,PCCC...certificate
2.sell in entire world
3.more than 30 years' experience
450/750V wire:
Product Description

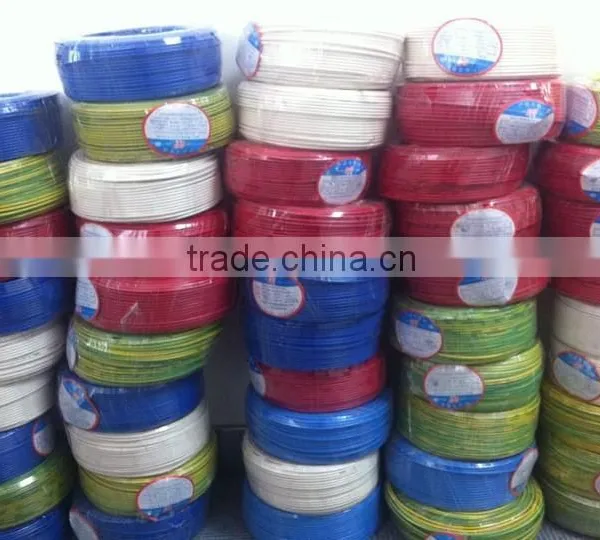

PVC insulated no sheathing BV wire and cable 450/750V
1. Has passed CE, ISO, CCC, PCCC...Certificate
2. Sell well in Europe, America, Asia and Africa.
3. Standard GB, IEC, AS
This product applies for home appliances, electric tools and other various moveable electrical equipments of rated voltage up to and including 450/750V.
Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V
Max. Admissible operating temperature of the conductor: 65C.
Permissible long-term operating temperature: Lowest working temperature is -35C.
Type: YQ, YQW, YZ, YZW, YC, YCW, YH, YHF
Milestone
1982 HeBei New Baofeng Cable & Wire Co.,Ltd was founded.
1997 Achieve ISO9001 Quality Certificate.
2001 Successfully developed 500KV 2500sqmm XLPE power cable and got Type Test Certificate.
2004 Got ISO14001 Environment Certificate Got 220KV UG Cable PQ Test.
2007 Got first 500KV power cable EPC order-Longtan Hydropower station.
2008 Got 500KV power cable EPC order--Xuangang Thermal Power Station.
2009 till today Got seven 500KV power cable EPC projects and we are the only 500KV cable and accessories manufacturer in China.
| No. of cod× Nominal Area mm 2 | Average diamete | Cable approx. weight Kg/km |
Maximum D. C. Resistance (20C)Ω /km | |||
| Min mm |
Max mm |
245IEC53(YZ) YZ |
245IEC57(YZW) YZW |
Non-metalplate | Metalplate | |
| 2× 0.75 | 6.0 | 8.2 | 70 | 75 | 39.0 | 40.1 |
| 2× 1 | 6.6 | 8.8 | 84 | 89 | 26.0 | 26.7 |
| 2× 1.5 | 8.0 | 10.5 | 121 | 129 | 19.5 | 20.0 |
| 2× 2.5 | 9.5 | 12.5 | 167 | 176 | 13.3 | 13.7 |
| 2× 4 | 10.6 | 13.7 | 236 | 248 | 7.98 | 8.21 |
| 2× 6 | 11.8 | 15.1 | 343 | 360 | 4.95 | 5.09 |
| 3× 0.75 | 6.5 | 8.8 | 87 | 92 | 39.0 | 40.1 |
| 3× 1 | 7.0 | 9.2 | 100 | 105 | 26.0 | 26.7 |
| 3× 1.5 | 8.6 | 11.0 | 146 | 153 | 19.5 | 20.0 |
| 3× 2.5 | 10.0 | 13.0 | 203 | 212 | 13.3 | 13.7 |
| 3× 4 | 11.3 | 14.5 | 290 | 302 | 7.98 | 8.21 |
| 3× 6 | 12.6 | 16.1 | 422 | 438 | 4.95 | 5.09 |
| 4× 0.75 | 7.1 | 9.6 | 97 | 103 | 39.0 | 40.1 |
| 4× 1 | 7.6 | 10.0 | 112 | 118 | 26.0 | 26.7 |
| 4× 1.5 | 9.6 | 12.5 | 169 | 177 | 19.5 | 20.0 |
| 4× 2.5 | 11.0 | 14.0 | 256 | 267 | 13.3 | 13.7 |
| 4× 4 | 12.7 | 16.2 | 367 | 381 | 7.98 | 8.21 |
| 4× 6 | 17.9 | 17.9 | 535 | 554 | 4.95 | 5.09 |
