Specifications
1 Purity raw material2 VDE,UL,CCC,ROHS,CE certificate
3 Free Samples
4 Professional QC inspection
5 More than 12 colour

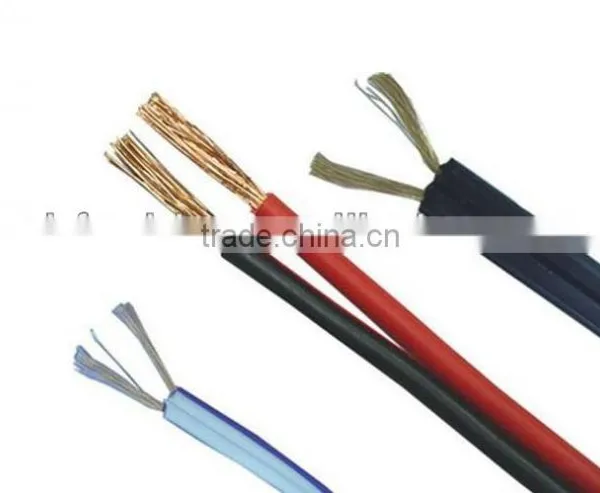

NH-BV flexible electrical wire cable
Specification
1. PVC insulated coper wire,fire resistant.
2. The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.
3. The long term working temperature should lower then 70oC. The working temperature of BV-90 should lower then 90oC. And the laying temperature should higher then 0oC.
4. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25mm or above. If the diameter of cable and wires is above 25mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.
Type
|
Type |
Name |
Laying Site and Requirements |
Long-time Permissible Working Temperature of Conductor |
|
227IEC01/05 NH-BV |
Copper Conductor,PVC Insulated Electrical Wire |
Fixed laid in the circumstance of indoor, conduit etc. |
70°C |
|
|
NH-BV
|
Nominal section (mm²) |
Core Structure No/Dia. (mm) |
||
1.5 |
1/1.38 |
|||
2.5 |
1/1.78 |
|||
4 |
1/2.25 |
|||
6 |
1/2.76 |
|||
10 |
7/1.35 |
|||
16 |
7/1.70 |
|||
25 |
7/2.14 |
|||
35 |
7/2.52 |
|||
50 |
19/1.78 |
|||
70 |
19/2.14 |
|||
95 |
19/2.52 |
|||
120 |
37/2.03 |
|||
150 |
37/2.25 |
|||
185 |
37/2.52 |
|||
240 |
61/2.25 |
|||
A.Application:
The product is appiulicable on the distribution of AC rated voltage below 450/750v with the use for wiring.
B.Conductor: Cu or Al
C.Insulation: PVC
D.Table 1-1Type and Description of cable
Technology property
A.Finished insulation core and finished power line are put into the water at the temperature 20±5°c for an hour,they should be
able to experience the A C voltage testing.
B.Outer power line is good at insulation property mechines property and non-inflammablilty with reliable quality and convenient
durability.
C.Finished power line should have products name,model and voltage signs.
4.Application
The products is suitable for use in power installations, fixed wiring or flexible connections forelectrical appliances like lighting, electronic equipment, instrument and communication equipmentwith rated voltage 450/750V or less
5.Why choose us
1.We are a leading manufacturer specialized in the field of cable for more than 10 years.
2.We obtain the profession team in cable development & advanced, matured technology in production and quality control. Our daily production capacity is more than 100, 000 meters.
3.Guaranteed with the reliable quality and aftersale services, you will be delighted to find that imported directly from us is so easy and simple as you buy from you local suppliers but with very competitive prices and more choice.
