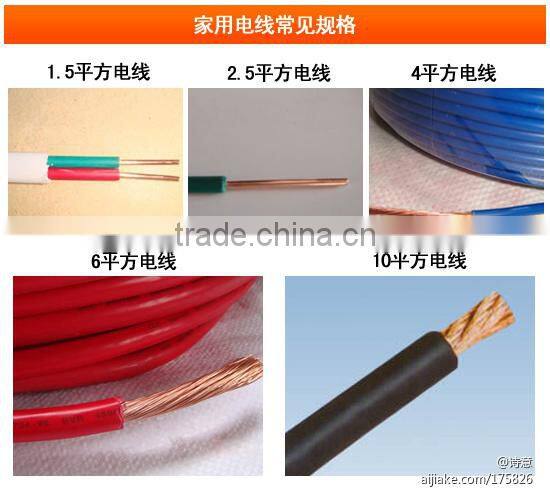

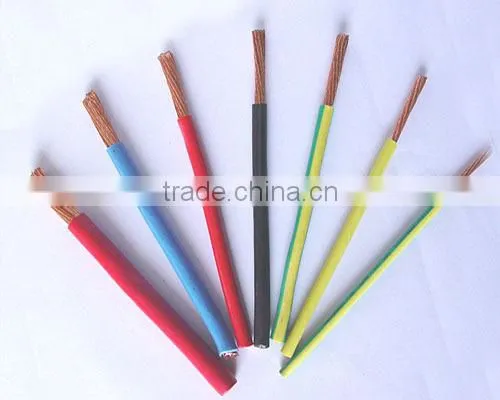

Sq2.5mm 4mm 6mm Pvc Coated Copper Core Electrical Wire

Name: Sq2.5mm 4mm 6mm Pvc Coated Copper Core Electrical Wire
Brand: New Baofeng
SKU: 119877291
Availability: InStock

Sq2.5mm 4mm 6mm Pvc Coated Copper Core Electrical Wire thumbnail-1

Sq2.5mm 4mm 6mm Pvc Coated Copper Core Electrical Wire photo-1

Negotiable MOQ: 1000 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

New Baofeng

Model Number:

BV series

Contact Supplier Request Quote Chat Now

Hebei New Baofeng Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name New Baofeng

Model Number BV series

Insulation Material PVC

Type Low Voltage

Application Other, Construction, Building, House,Lighting,Overhead

Conductor Material Other, copper,tinned copper or aluminum

Jacket Other, soild and stranded class 2-6

Specifications

1 Purity raw material
2 VDE,UL,CCC,ROHS,CE certificate
3 Free Samples
4 Professional QC inspection
5 More than 12 colour

Sq2.5mm 4mm 6mm pvc coated copper core electrical wire

1.Our CU-core PVC Insulated electrical wires has passed CCC and ISO qualified, IEC standard

2.best quality with the best price

1.450/750 Cu conductor PVC insulated electric wire belong to the series of laying electrical wire,which is mainly suitable for laying at the fixed places.It is widely used as lighting,connectors of drive, electric equipments,instrument and telecommunication equipments.The rated voltage is 450/750V(U₀/U) or below.Part of the plastic wires are used at the equipment with AC rated voltage up to 300/300V .

2.Electric wire is usually PVC insulated wire.This system include the below types

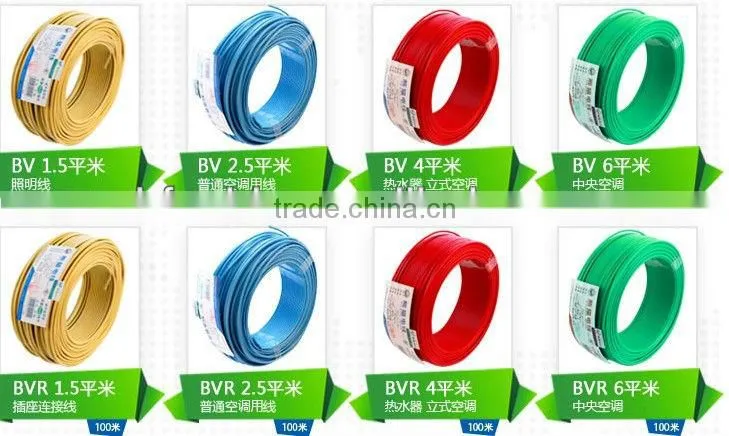

BV,,BV-90,BVR, BVV,BLVV,BVVB,BLVVB,RVB,RVS,RVV

BVCopper (aluminum) conductor PVC insulated w

BLValuminum) conductor PVC insulated wires

BVR Copper conductor PVC insulated flexible wires)* Copper (aluminum) conductor PVC insulated PVC sheathed round wires

* Copper (aluminum) conductor PVC insulated PVC sheathed flat wires

* Copper conductor PVC insulated flat flexible connectors

* Copper conductor PVC insulated PVC sheathed round flexible connectors* Sizes: 0.5-185mm²*

3.Standard: GB Standard and IEC Standard.

GB 5023.11997450/750V or below PVC insulated electric wires,JB 8734.15-1998450/750V or under PVC insulated cables,electric wires and flexible wiresand Q/ZEL 02-2002Piastic insulated electric wires and cables.GB 5023.17-1997 is identical to IEC227,and type are same as the stipulation of IEC,technical specification is just the same,and more we have extended the range of the type to fit for the requipment of the consumers.

We can also produce as per the other special requirements of the clients.

Product:

Type	Name	Laying place and requirement	Long term working temperature
227IEC01/05 BV	Copper conductor PVC insulated wires	Fixed laid indoors, conduits etc.	70
BL V	Aluminum Conductor PVC insulated wires	Fixed laid indoors, conduits etc.	70
227IEC07 BV-90	Heat resistant copper conductor PVC insulated wires at 90	Mainly be laid at the places of high temperature environment and can be laid indoors, conduits.	90
BVR	Copper conductor PVC insulated flexible wire	Be for laying permanent place where flexible required.	70
227IEC10 BVV	Copper conductor PVC insulated PVC sheathed round wires	Fixed laid, fit for the places with high mechanical protection and moisture place. Can be laid in the air or underground.	70
BLVV	Aluminum conductor PVC insulated PVC sheathed round wires		70
BVVB	Copper conductor PVC insulated PVC Sheathed flat wires		90
BLVVB	Aluminum conductor PVC insulated sheathed flat wires		70
227IEC02RV 227IEC06RV	Copper conductor PVC insulated flexible connector	Mainly used at middle and light style of moving electronics, home appliances, power and lighting and the places where flexible required.	70
227IEC42 RVB	Copper conductor PVC insulated flat flexible connector
RVS	Copper conductor PVC insulated flexible twisting connector wire
227IEC52 RVV 227IEC53 RVV	Copper conductor PVC insulated PVC sheathed round flexible connector(light and common type)

Specification Size and Technical Data

Commen wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

Flexible wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33.0
4	19/0.52	0.8	4.8	4.61	0.009	48.0
6	19/0.64	0.8	5.6	3.08	0.0084	68.0
10	49/0.52	1.0	7.6	1.83	0.0072	115.0
16	49/0.64	1.0	8.8	1.15	0.0062	176.0
25	98/0.58	1.2	11.0	0.727	0.0058	272.0
35	133/0.58	1.2	12.5	0.524	0.0052	384.0
50	133/0.68	1.4	16.5	0.387	0.0051	510.0
70	189/0.68	1.4	16.5	0.268	0.0045	714.0
95	259/0.68	1.	19.5	0.139	0.0035	965.0
120	259/0.76	1.8	22.0	0.153	0.0032	1210.0
150	259/0.85	1.8	25.0	0.124	0.0032	1510.0
